Square D

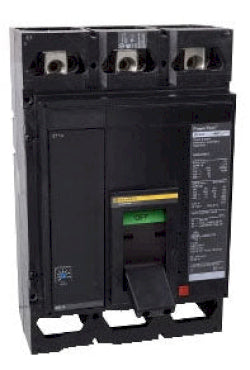

Square D MGM36800 Circuit Breaker | Powerpact MGM 600V 800A
Square D MGM36800 Circuit Breaker | Powerpact MGM 600V 800A
Price:
Sale
Sold out
Regular price
$3,079.99 USD
Regular price
$8,079.00 USD
Sale price
$3,079.99 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MGM36800 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker uses a Lug In/Lug Out connection and includes solid-state protection. It is designed for industrial and commercial applications.
Key Features:
✔ Part Number: MGM36800
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGM
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Lug In/Lug Out
✔ Protection: Solid State
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ Min. Wire Size: 3/0 AWG (Cu/Al)
✔ Max. Wire Size: 500 kcmil (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901480396
✔ GTIN: 007859014803
The Square D MGM36800 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker uses a Lug In/Lug Out connection and includes solid-state protection. It is designed for industrial and commercial applications.
Key Features:
✔ Part Number: MGM36800
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGM
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Lug In/Lug Out
✔ Protection: Solid State
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ Min. Wire Size: 3/0 AWG (Cu/Al)
✔ Max. Wire Size: 500 kcmil (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901480396
✔ GTIN: 007859014803
