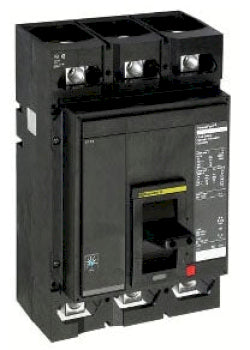

Square D MGP36400 Circuit Breaker | 600V 400A 3P 35kA@480V Din Rail Powerpact

Product Description:
The Square D MGP36400 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400A amperage rating with a 35kA@480V AIC rating. This breaker uses a Din Rail connection and offers solid-state protection. It is designed for industrial and commercial electrical systems.

Key Features:
✔ Part Number: MGP36400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGP
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Din Rail
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ Wire Size: Min. 3/0 AWG (Cu/Al), Max. 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901481331
✔ GTIN: 00785901481331
✔ Country of Origin: Mexico
✔ Dimensions: 12.86 x 3.09 x 4.44 in (326.64 x 78.49 x 112.78 mm)
✔ Weight: 12.82
✔ Standards: UL, CSA, NEMA, NOM, CE
