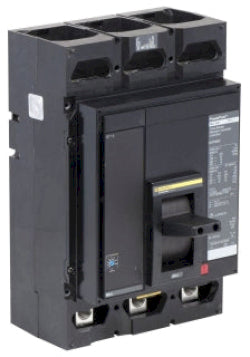

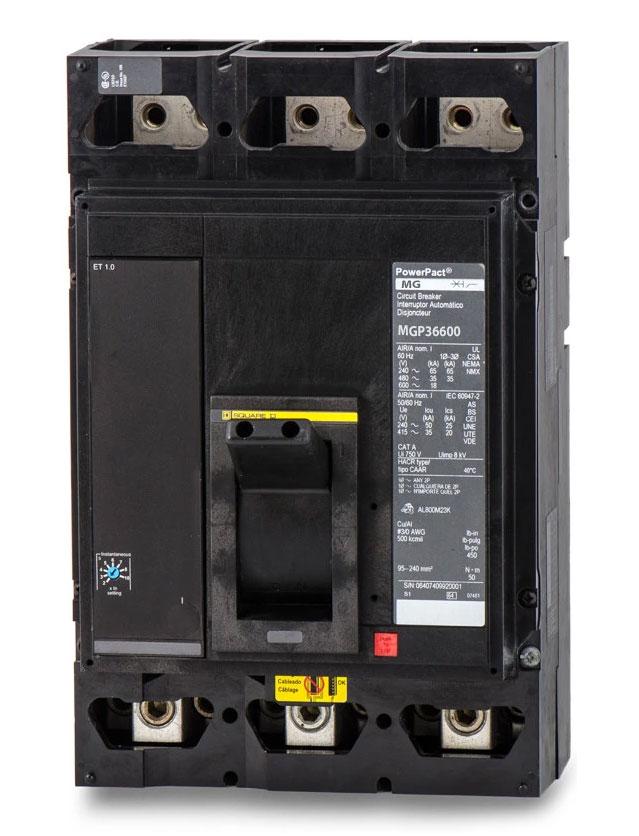

Square D MGP36600 Circuit Breaker | 600V 600A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D MGP36600 is a Powerpact family molded case circuit breaker designed for robust electrical protection. It is a 3-pole, 600 amp breaker rated for 600 volts with a 35kA interrupting capacity at 480V. This unit features solid state protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: MGP36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGP
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ MCM Size: Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901563532
✔ GTIN: 00785901563532
✔ Country of Origin: Mexico
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 12.72
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
