Product Description:

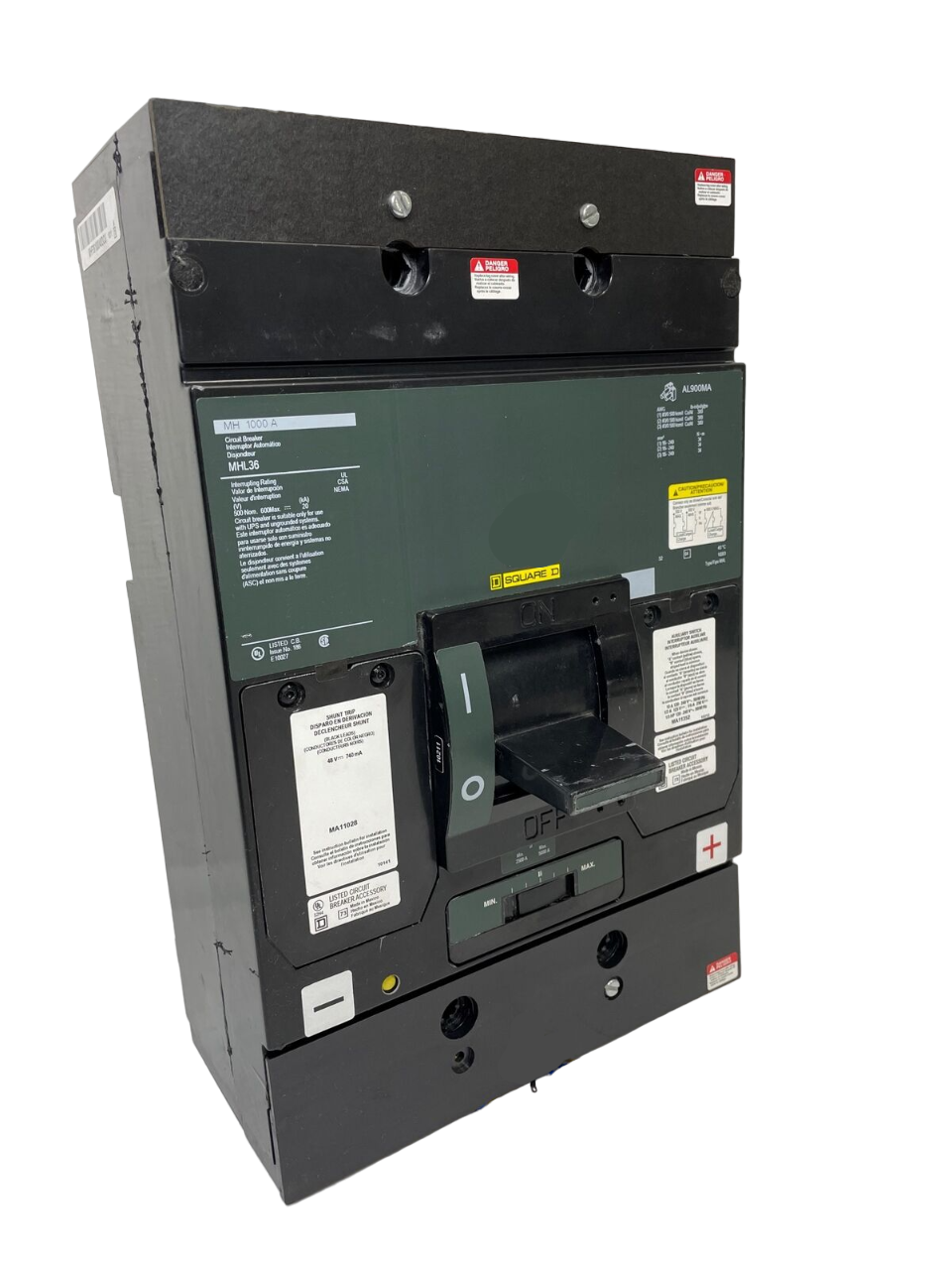

The Square D MHL36120040DC1680 is a Molded Case Circuit Breaker from the MHL Series. It features a 3-pole design with a 600V, 1200A rating and an AIC rating of 20kA@500VDC. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: MHL36120040DC1680
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: MHL Series
✔ Type: MHL
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 20kA@500VDC
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Dimensions: Depth 8.05 in (204.47 mm), Width 8.27 in (210.06 mm), Height 12.86 in (326.64 mm)
✔ Weight: 40 lbs
