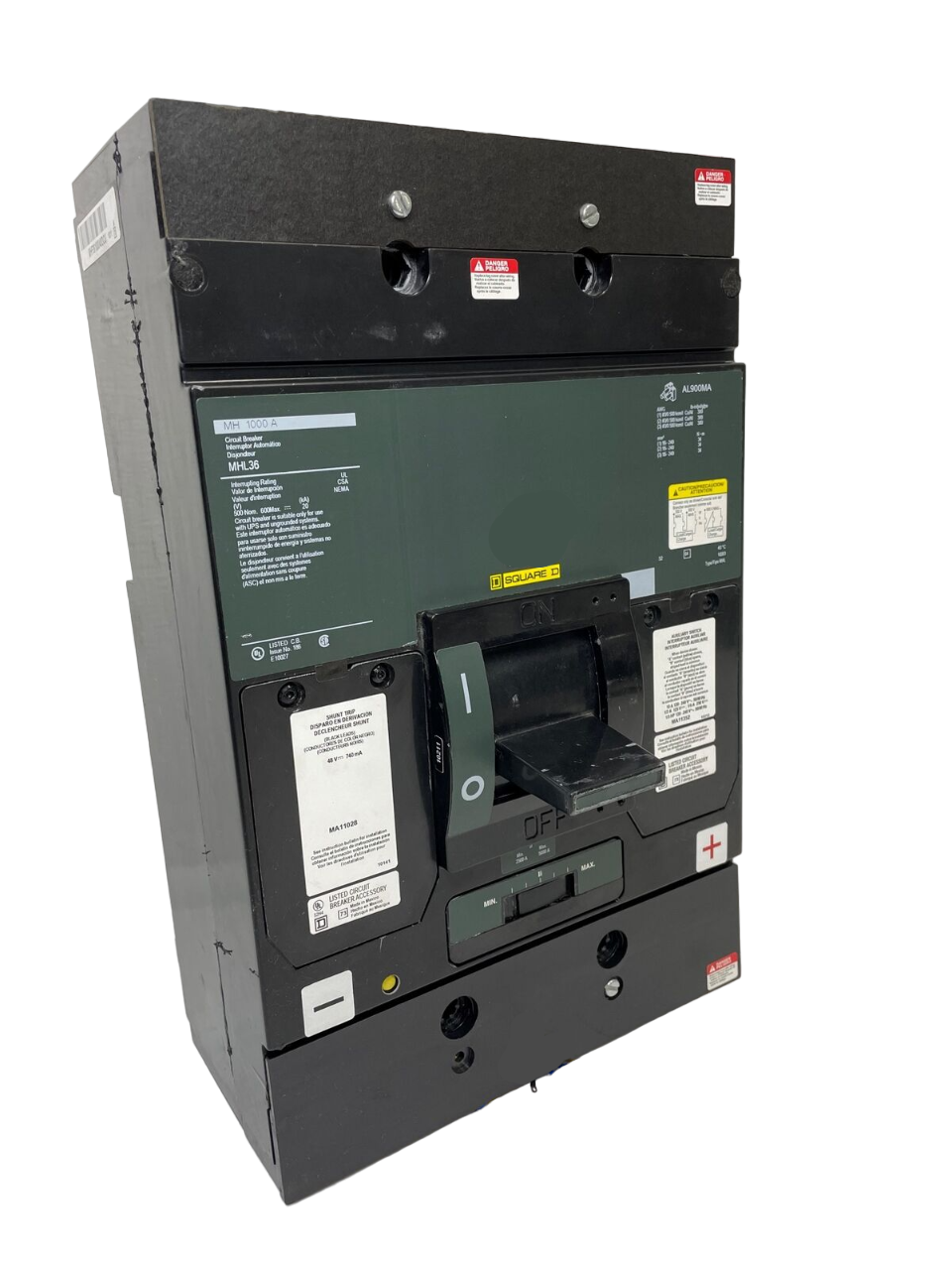

Square D MHL3680036DC Circuit Breaker | 600V 800A 3P 20kA@500VDC Feed-Thru MHL Series

Product Description:
The Square D MHL3680036DC is a Molded Case Circuit Breaker from the MHL Series. It features a 3-pole design with a 600V, 800A rating and an AIC rating of 20kA@500VDC. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: MHL3680036DC
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: MHL Series
✔ Type: MHL
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 20kA@500VDC
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
✔ Weight: 40
