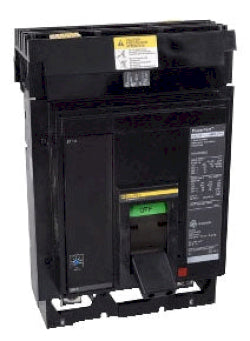

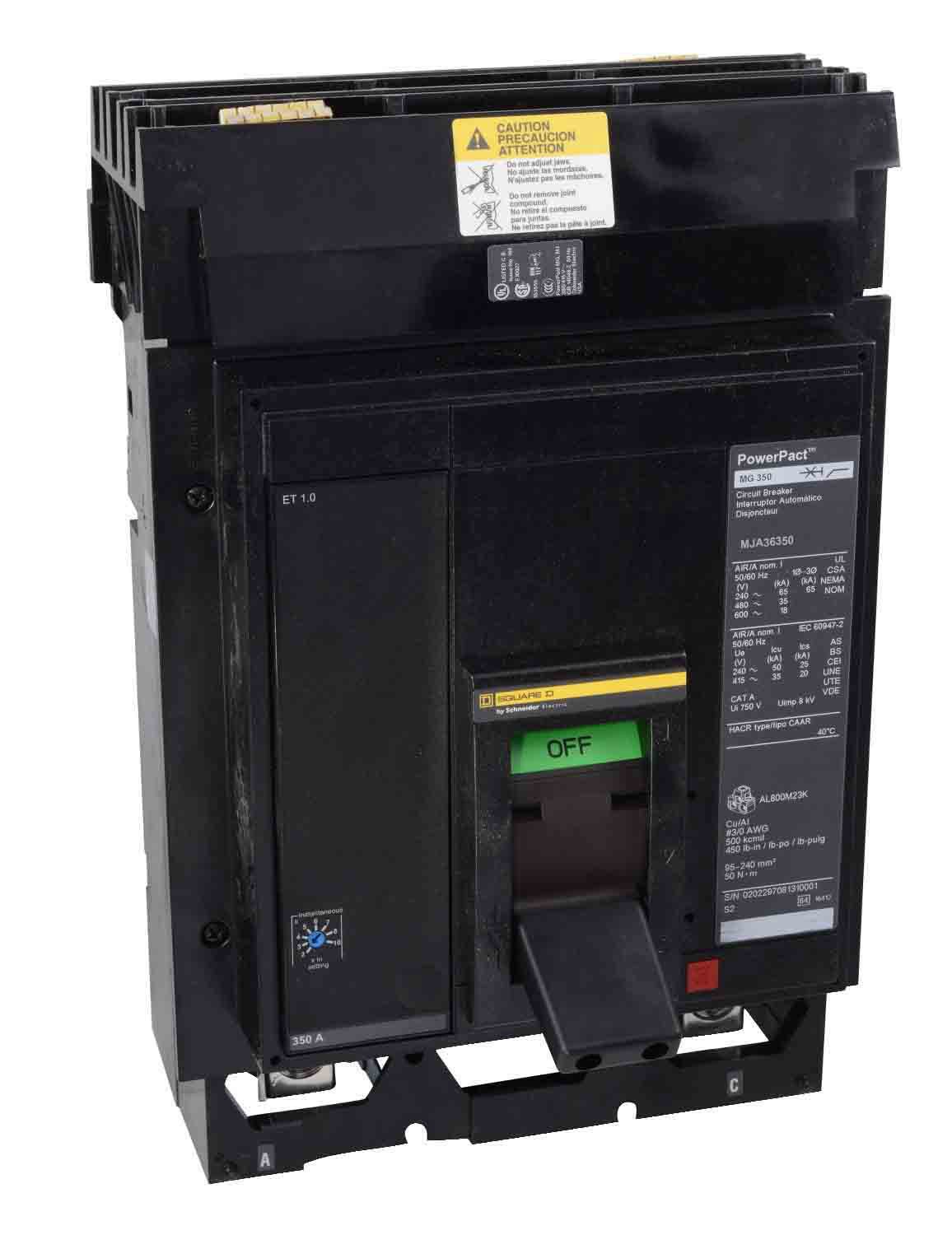

Square D MJA36350 Circuit Breaker | 600V 350A 3 Pole 65kA@480V Powerpact

Product Description:
The Square D MJA36350 is a robust Molded Case Circuit Breaker designed for high-performance electrical systems. It features a 3 pole configuration with a voltage rating of 600 volts and a current capacity of 350 amps. This circuit breaker is part of the Powerpact family and offers solid-state protection with a panel mount connection. It is engineered to handle high interrupting capacities, making it suitable for demanding applications.

Key Features:
✔ Part Number: MJA36350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 350
✔ Certification: UL, CSA, IEC
✔ UPC: 785901862000
✔ GTIN: 00785901689584
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Panel Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: ABC

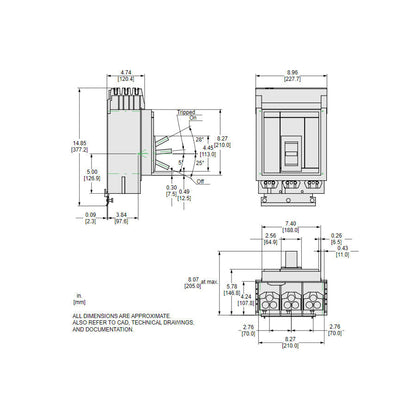

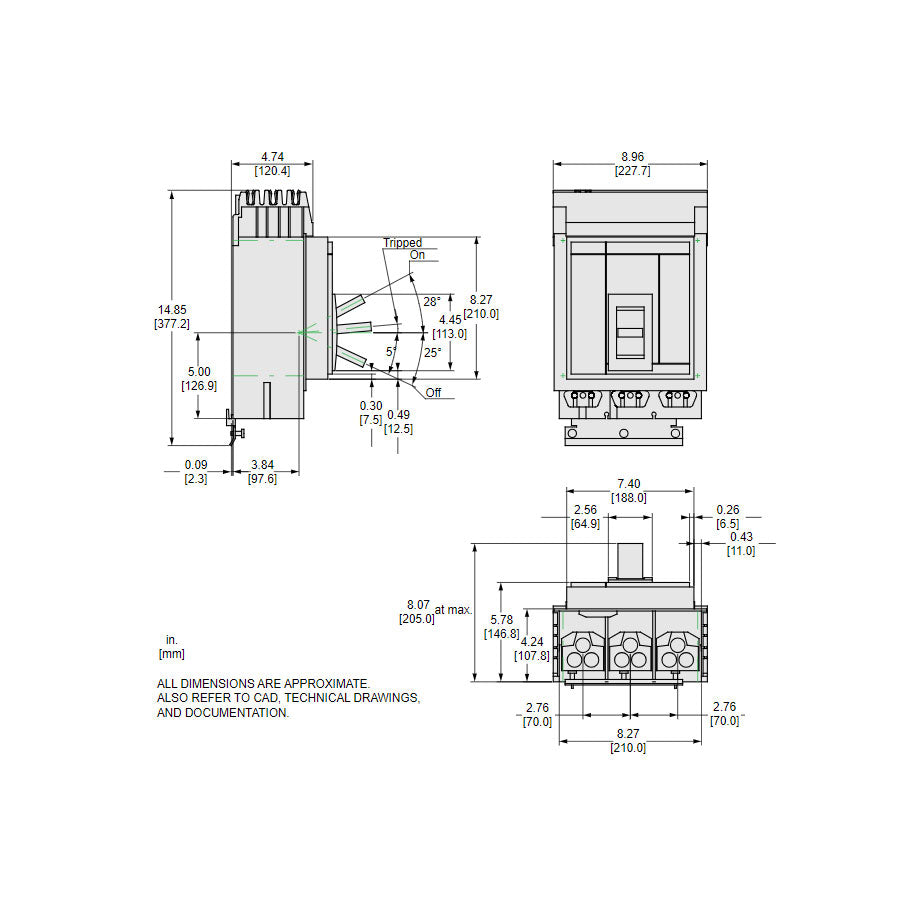

✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 28.66
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
