Square D

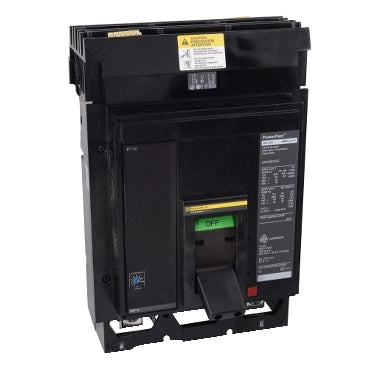

Square D MJA36400YP Circuit Breaker | Powerpact MJA 600V 400A
Square D MJA36400YP Circuit Breaker | Powerpact MJA 600V 400A
Price:
Sale
Sold out
Regular price
$9,864.57 USD
Regular price
$0.00 USD
Sale price
$9,864.57 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D MJA36400YP is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MJA36400YP
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State
✔ GTIN: 00785901572619
✔ Dimensions: 12.86 x 3.09 x 4.44 in (326.64 x 78.49 x 112.78 mm)
✔ Weight: 31 lbs
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
The Square D MJA36400YP is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MJA36400YP
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State
✔ GTIN: 00785901572619
✔ Dimensions: 12.86 x 3.09 x 4.44 in (326.64 x 78.49 x 112.78 mm)
✔ Weight: 31 lbs
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
