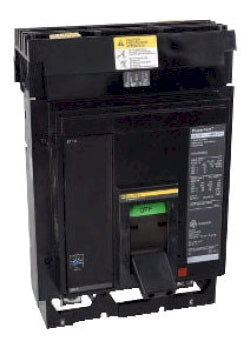

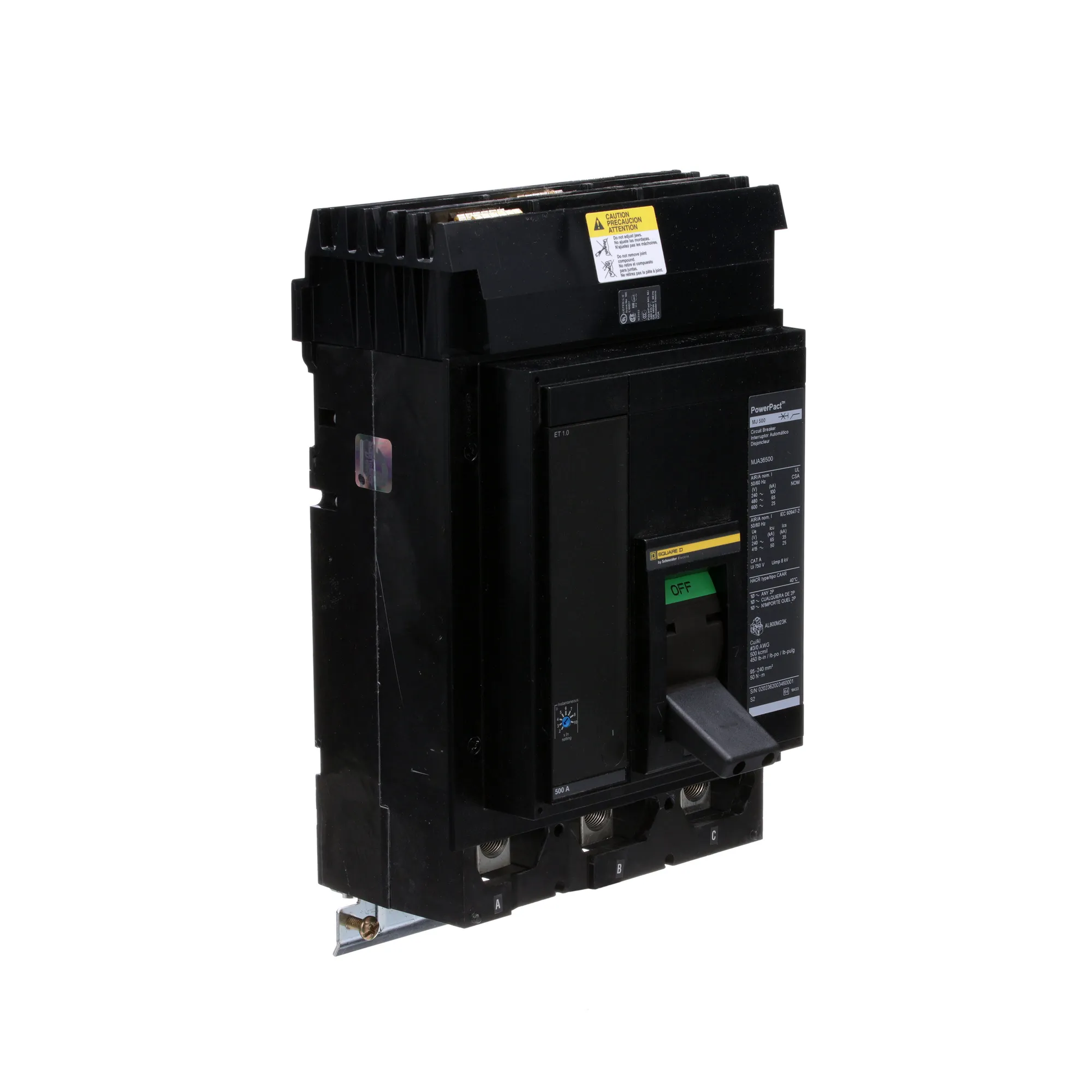

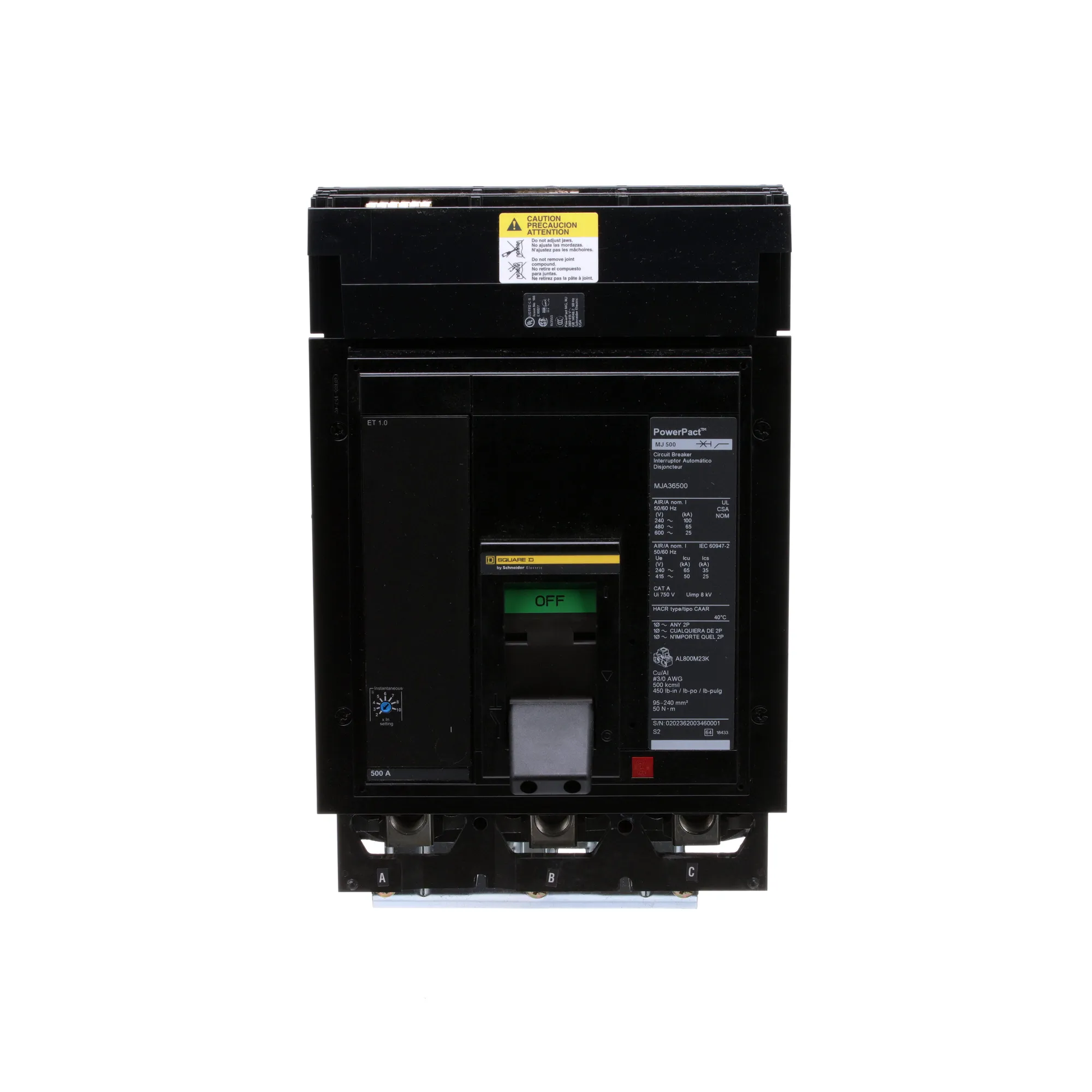

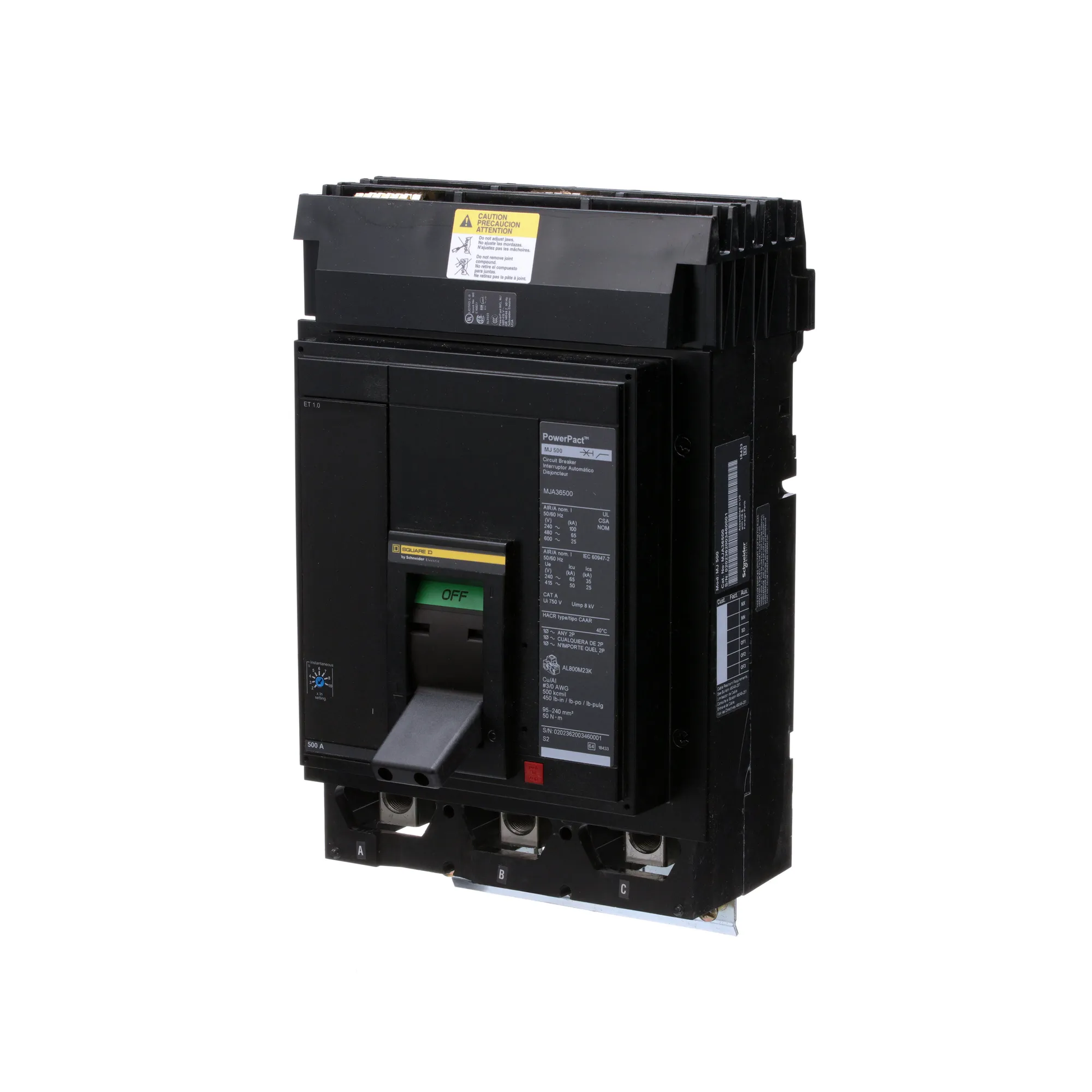

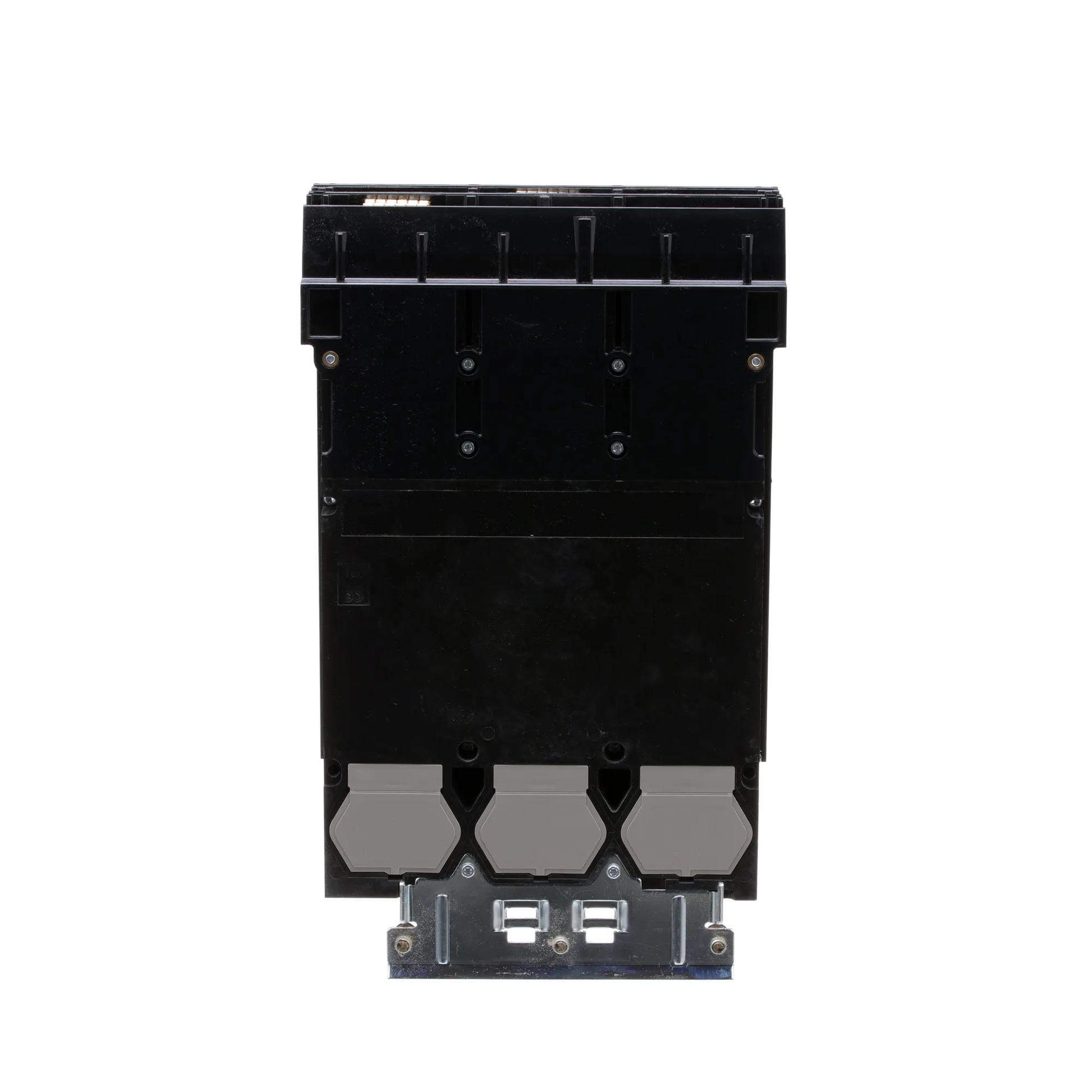

Square D MJA36500 Molded Case Circuit Breaker | 600V 500A 3P 65kA@480V Powerpact

Product Description:
The Square D MJA36500 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 500 amp breaker rated for 600 volts with an AIC rating of 65kA at 480V. This model features solid state protection and a panel mount connection for reliable performance.

Key Features:
✔ Part Number: MJA36500
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 500
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Panel Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: CBA
✔ UPC: 785901575696
✔ GTIN: 00785901575696
✔ Country of Origin: United States

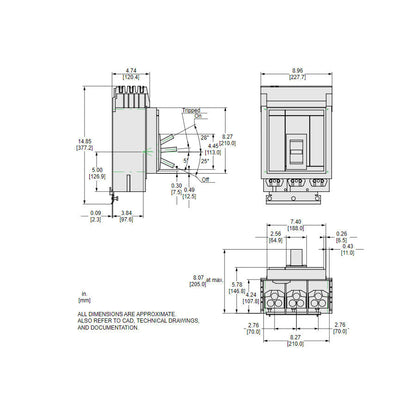

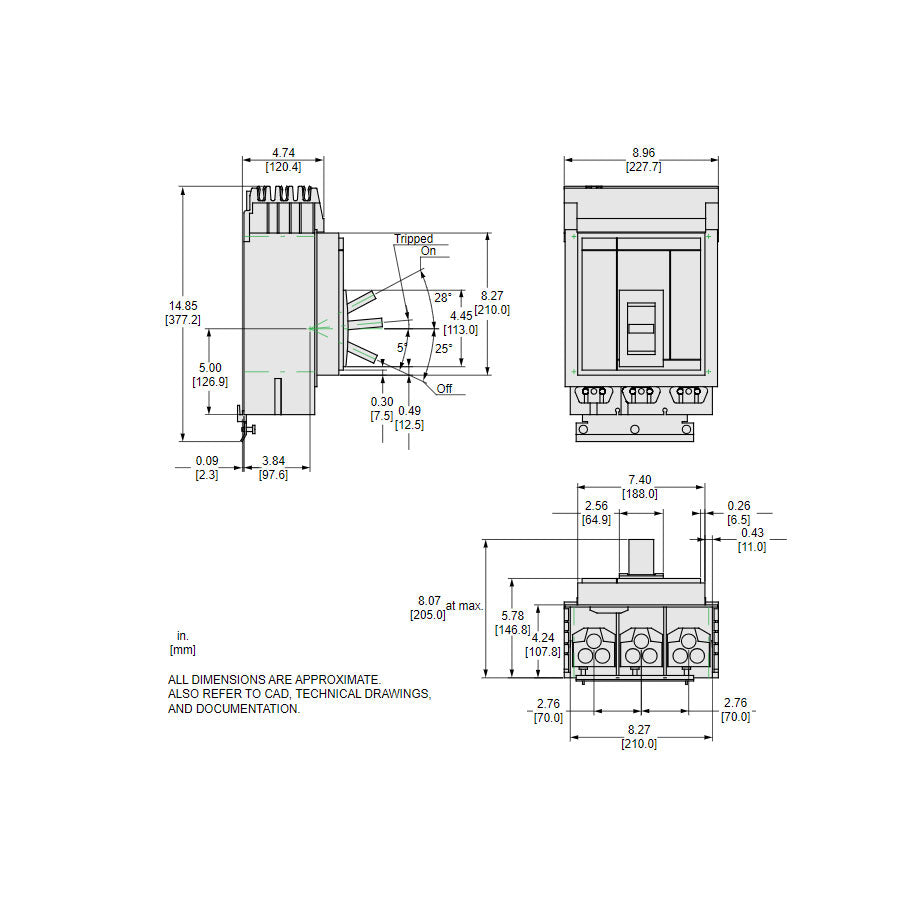

✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.11
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL listed
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
