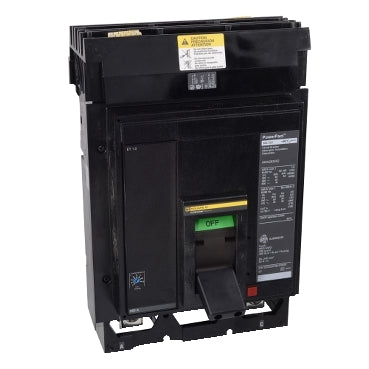

Square D MJA36600YP Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Powerpact
Square D MJA36600YP Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$10,944.95 USD
Regular price
$15,076.50 USD
Sale price
$10,944.95 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MJA36600YP is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 amps and 600 volts, with an interrupting capacity of 65kA at 480V. This unit features a plug-in I-Line connection and solid state protection for reliable performance.
Key Features:
✔ Part Number: MJA36600YP
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Solid State
✔ UPC: 060648628476
✔ GTIN: 03606486284766
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.15
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
