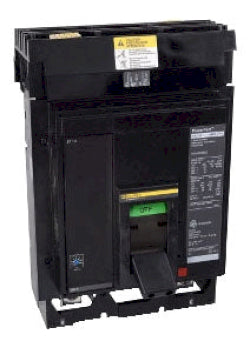

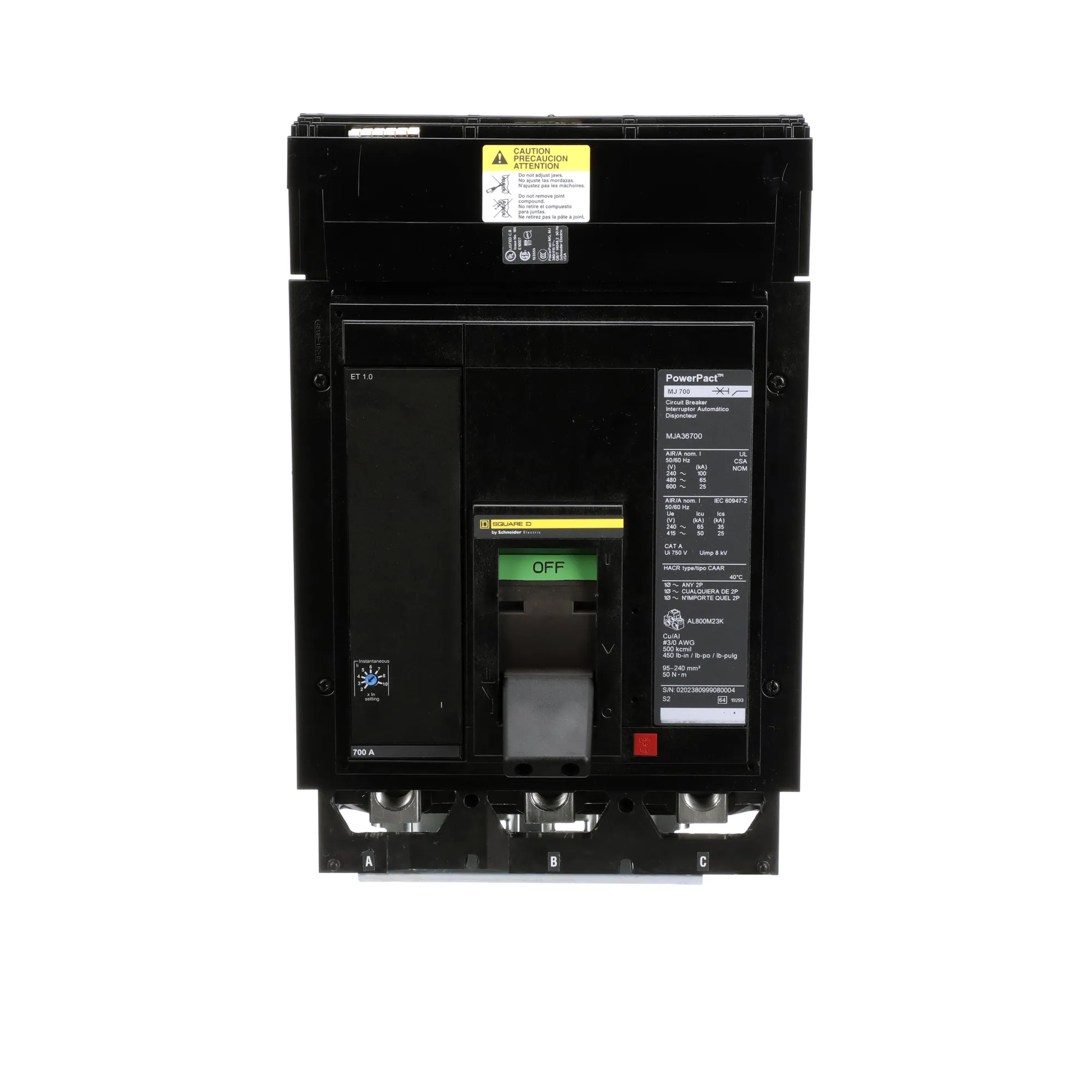

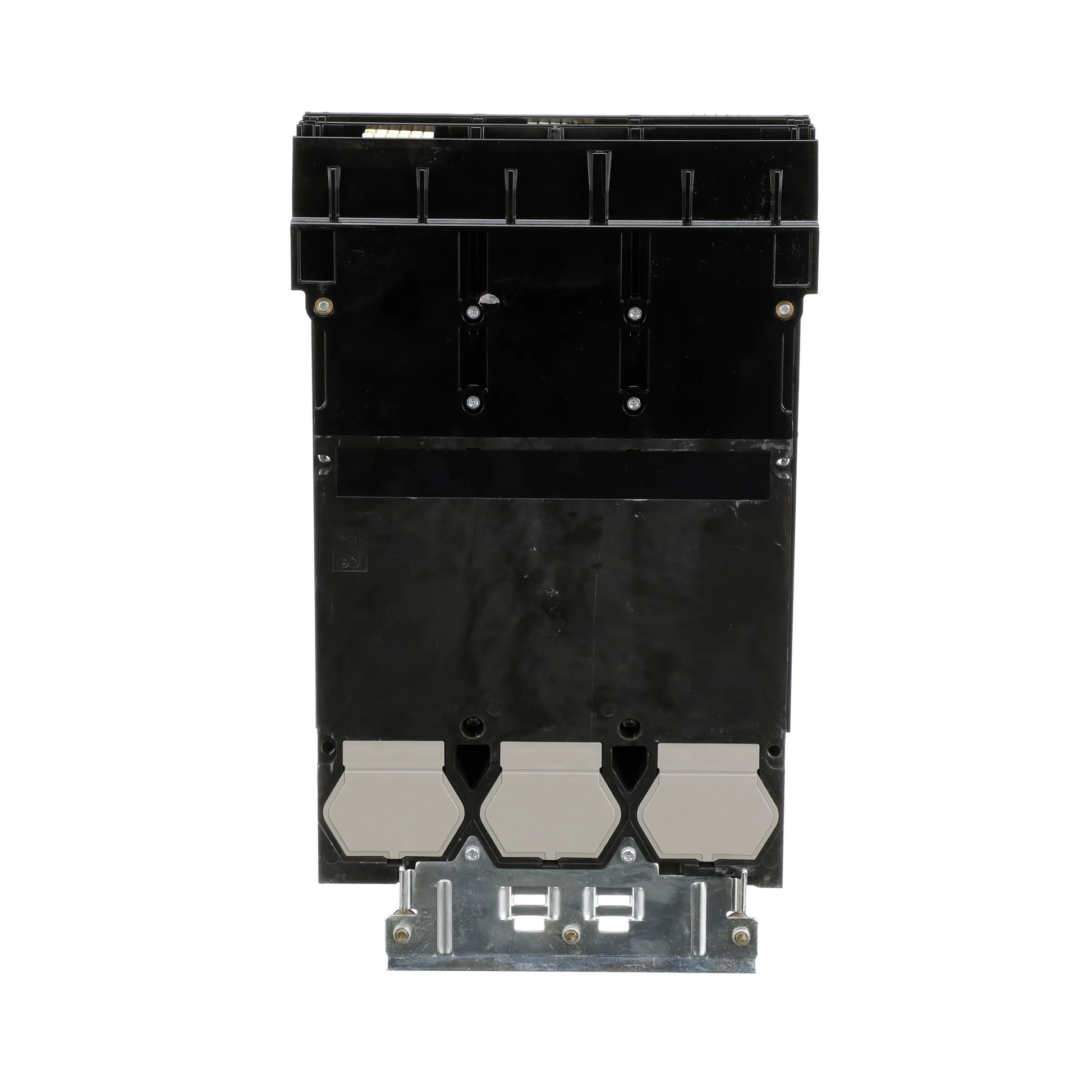

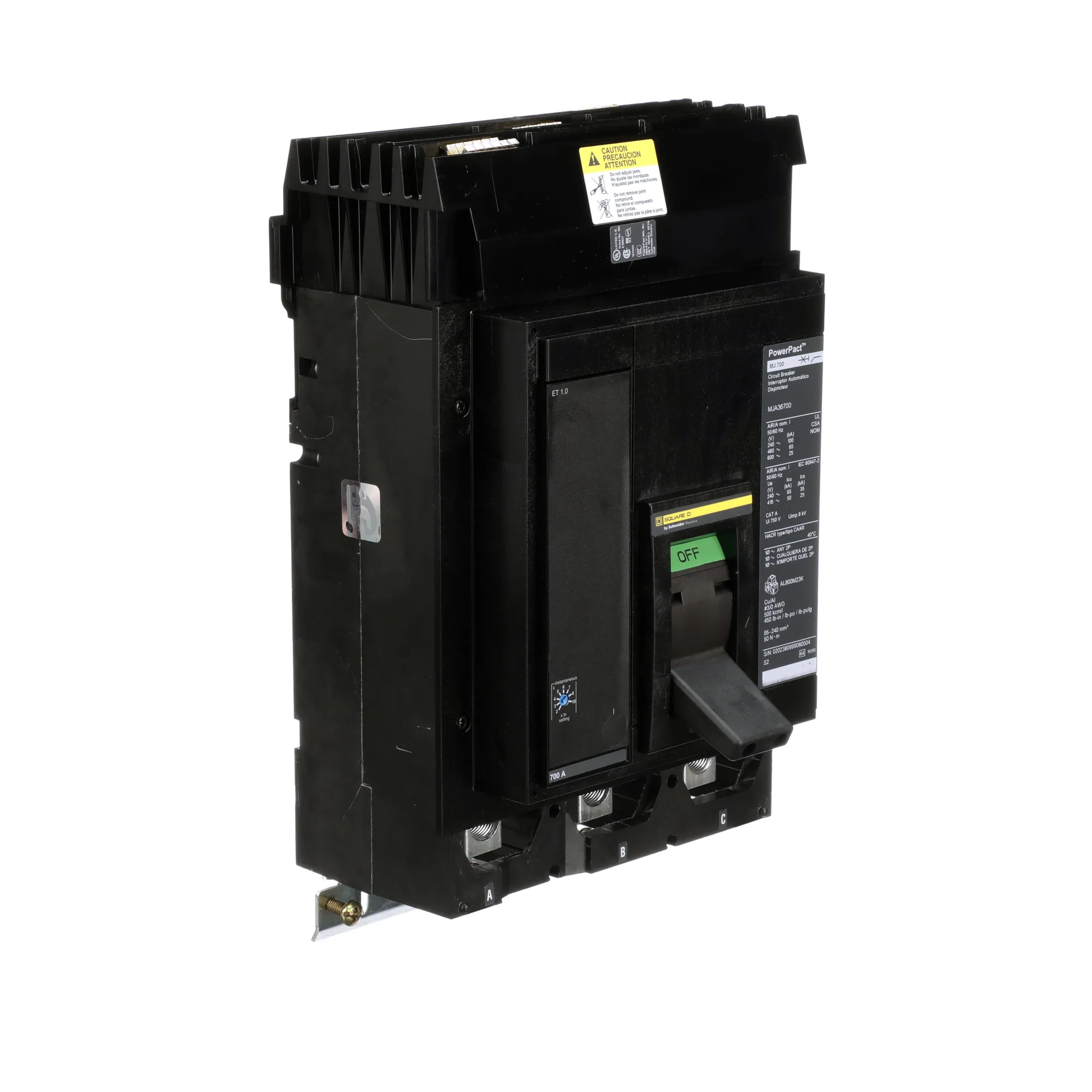

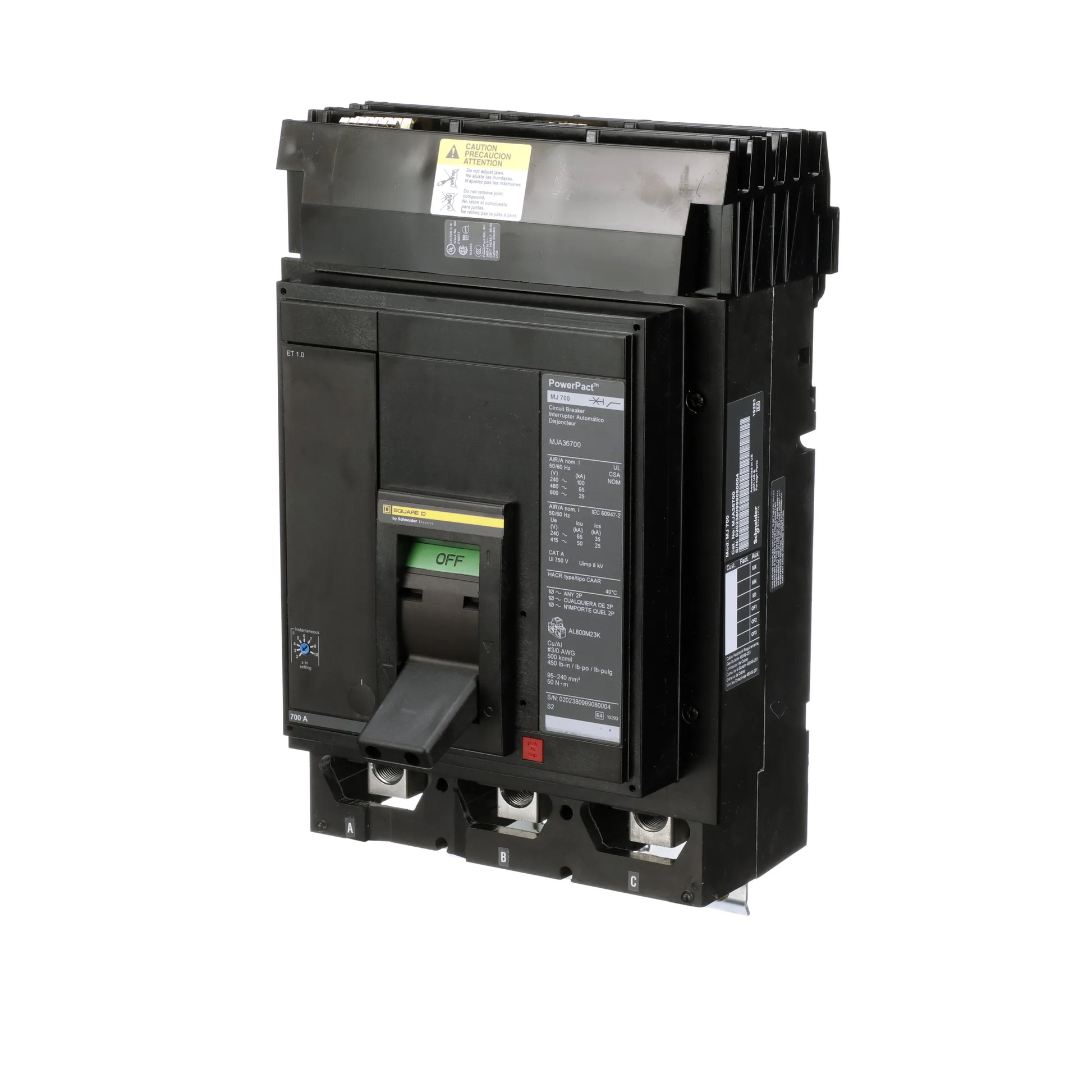

Square D MJA36700 Circuit Breaker | 600V 700A 3P 65kA@480V Powerpact MJA

Product Description:
The Square D MJA36700 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 700 amp breaker rated for 600 volts with an AIC rating of 65kA at 480V. This circuit breaker features solid state protection and is designed for panel mount connection in industrial applications.

Key Features:
✔ Part Number: MJA36700
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 700
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Panel Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901862000
✔ GTIN: 00785901862000
✔ Country of Origin: United States

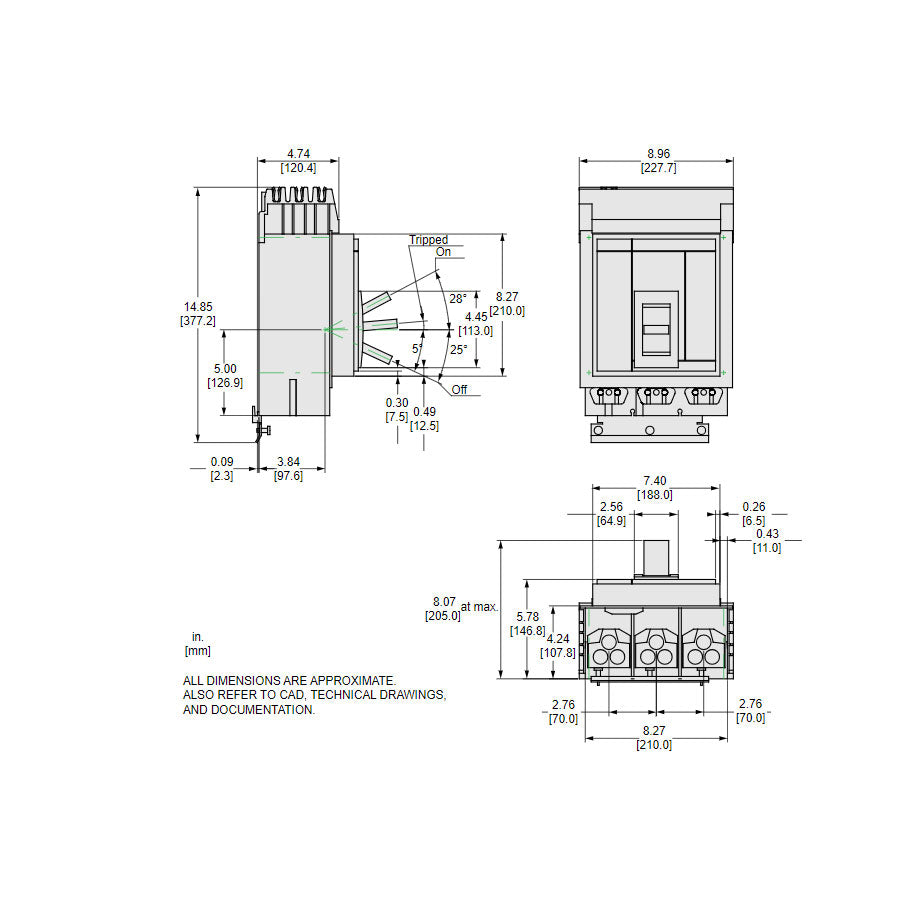

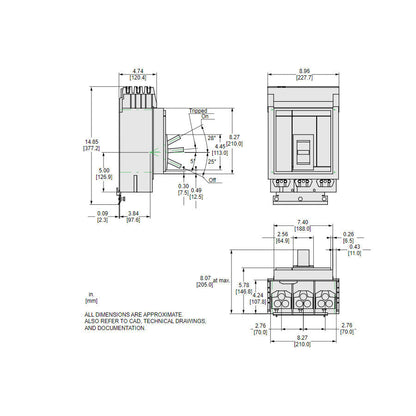

✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.19
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
