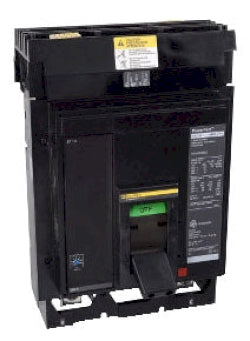

Square D MJA36800 Circuit Breaker | 600V 800A 3P 65kA@480V Powerpact

Product Description:
The Square D MJA36800 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 65kA@480V AIC rating. This breaker includes solid-state protection and panel mount connections. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: MJA36800
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Panel Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901572701
✔ GTIN: 00785901572701
✔ Country of Origin: United States

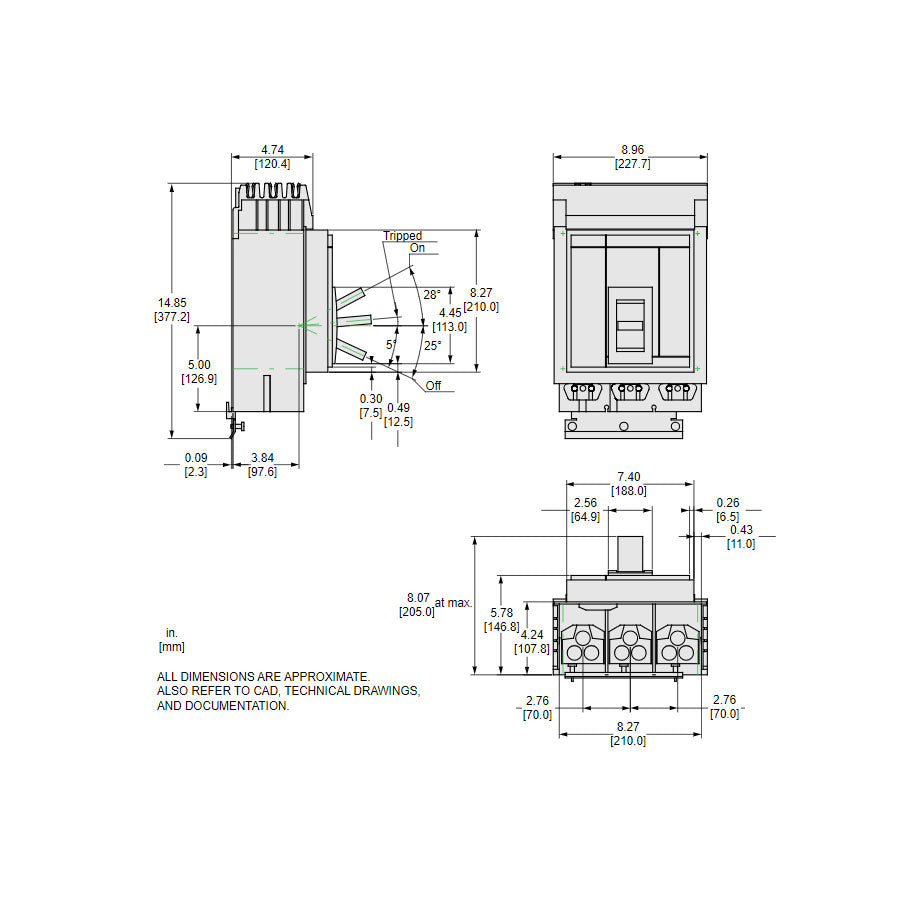

✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.06 lb
✔ Panel Type: I Line Panelboards
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
