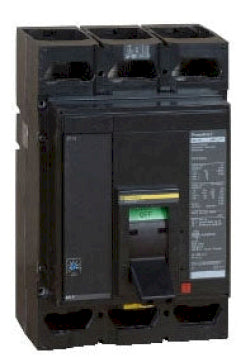

Square D MJF36600 Circuit Breaker | 600V 600A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D MJF36600 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 65kA@480V AIC rating. This breaker uses a bolt-on connection and solid-state protection for reliable performance. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: MJF36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJF
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: M
✔ Wire Size: Min. (3) 3/0 AWG (Cu/Al), Max. (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901504283
✔ GTIN: 00785901504283
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 12.62
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
