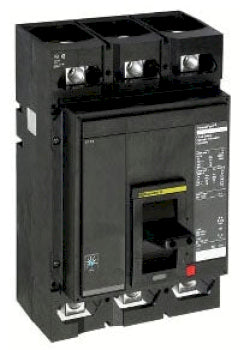

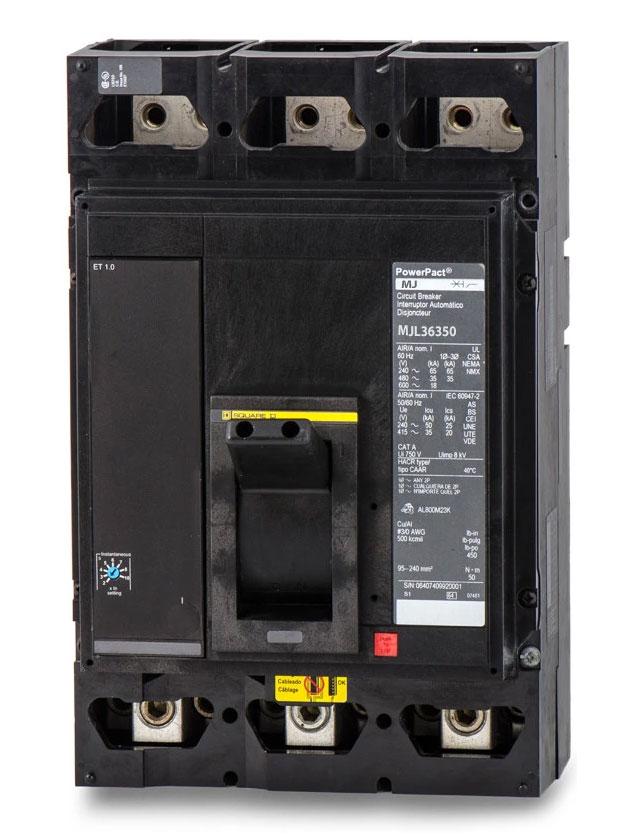

Square D MJL36350 Molded Case Circuit Breaker | 600V 350A 3P 65kA@480V Lug In/Lug Out Powerpact MJL
Square D MJL36350 Molded Case Circuit Breaker | 600V 350A 3P 65kA@480V Lug In/Lug Out Powerpact MJL
Price:
Sale
Sold out
Regular price
$5,240.46 USD
Regular price
$9,456.00 USD
Sale price
$5,240.46 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D MJL36350 is a Powerpact family Molded Case Circuit Breaker designed for robust electrical protection. It features a 3-pole configuration rated for 600 Volts and 350 Amps, with a 65kA interrupting capacity at 480V. This breaker utilizes solid state protection and a lug in/lug out connection for reliable performance.
Key Features:
✔ Part Number: MJL36350
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJL
✔ Voltage: 600
✔ Amperage: 350
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: CBA
✔ UPC: 785901879947
✔ GTIN: 00785901879947
✔ Country of Origin: United States
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.15
✔ Panel Type: Equipment Gear
✔ Standards: CSA, IEC, UL listed
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
