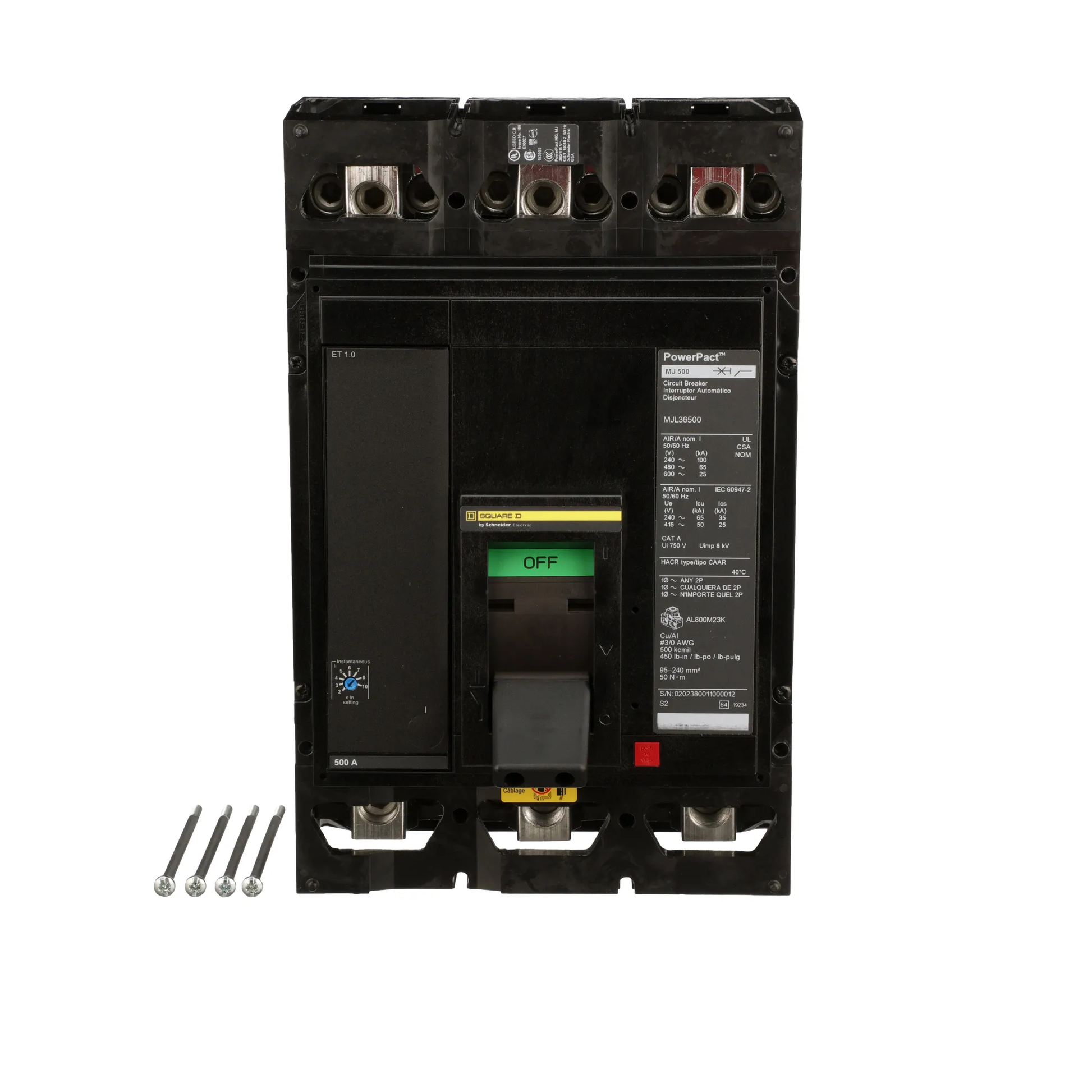

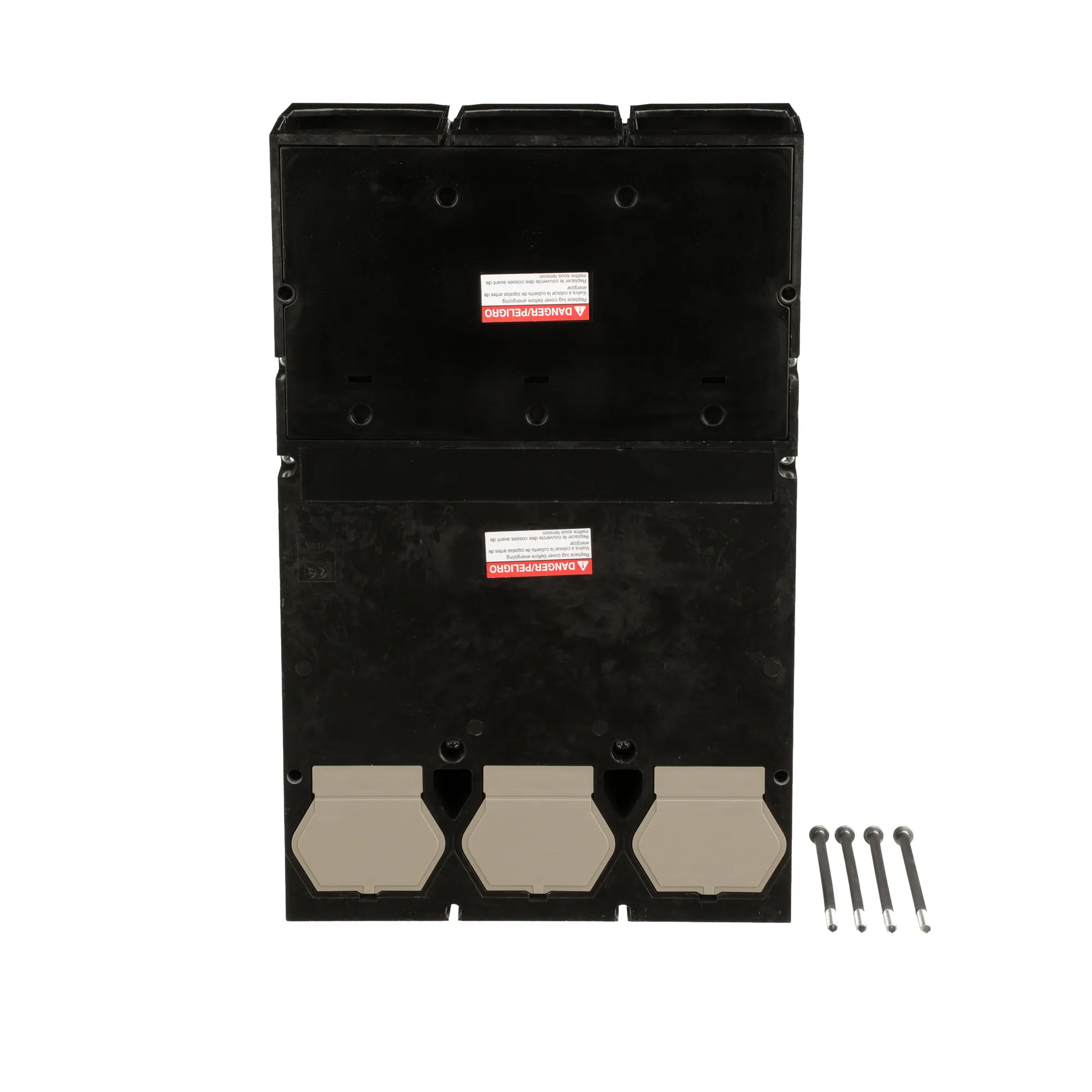

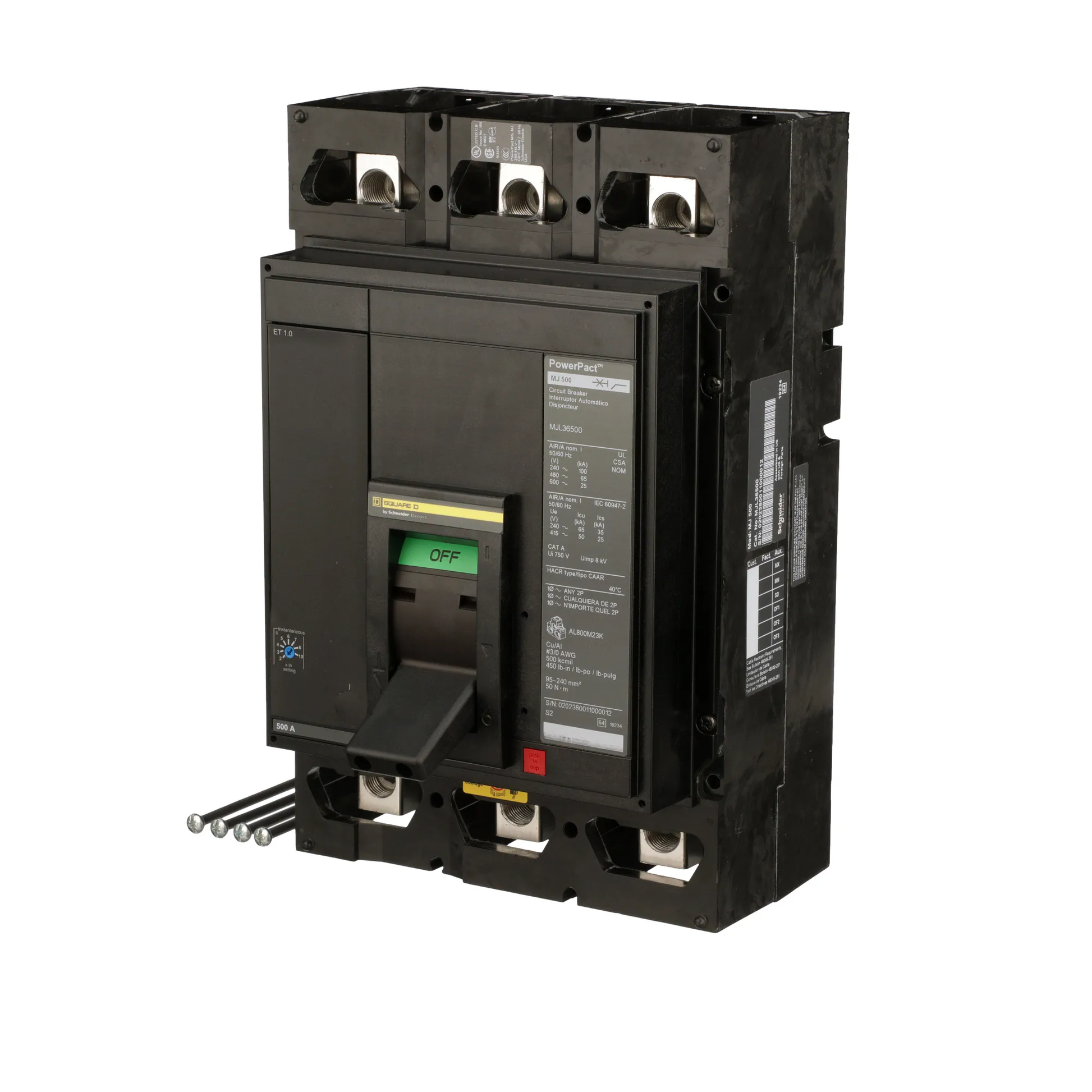

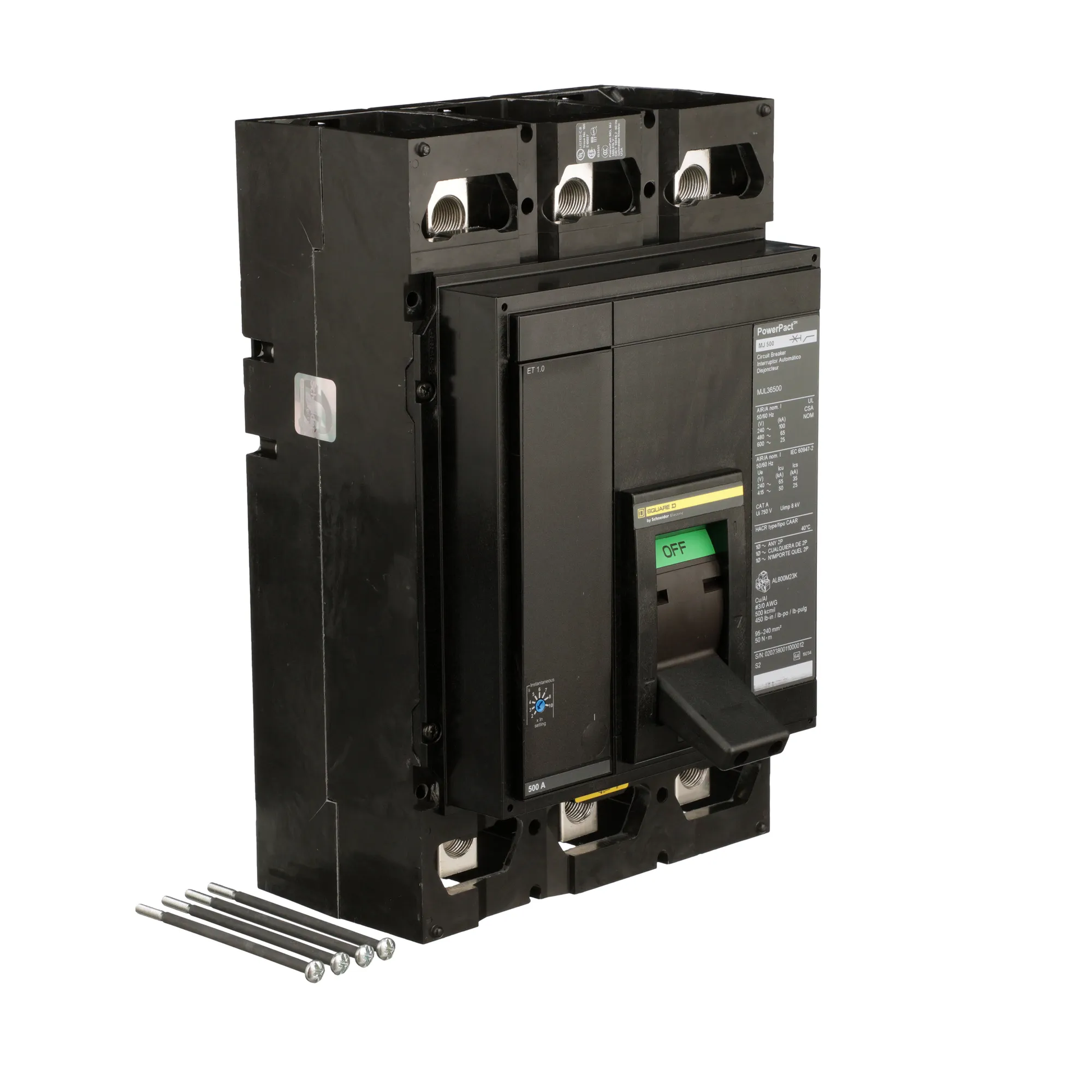

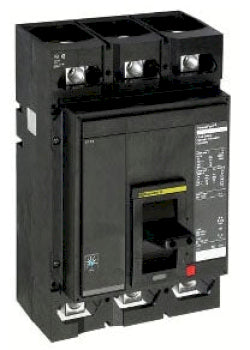

Square D MJL36500 Circuit Breaker | 600V 500A 3P 65kA@480V Lug In/Lug Out Powerpact
Square D MJL36500 Circuit Breaker | 600V 500A 3P 65kA@480V Lug In/Lug Out Powerpact
Price:
Sale
Sold out
Regular price
$3,930.84 USD
Regular price
$9,456.00 USD
Sale price
$3,930.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Square D MJL36500 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 500A rating and a 65kA@480V AIC rating. This breaker uses Lug In/Lug Out connections and includes solid-state protection. It is ideal for industrial and commercial electrical systems. Key Features:
✔ Part Number: MJL36500
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJL
✔ Voltage: 600
✔ Amperage: 500
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: CBA
✔ UPC: 785901879947
✔ GTIN: 00785901570196
✔ Country of Origin: United States
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 28.95
✔ Panel Type: Equipment Gear
✔ Standards: CSA, IEC, UL listed
✔ Certification: UL, CSA, CE, NOM, IEC
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
