Images are for reference only
Square D

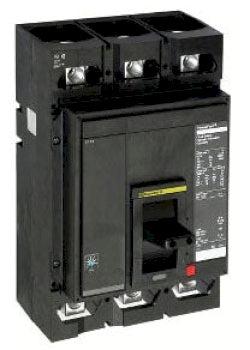

Square D MJL36600 Circuit Breaker | 600V 600A 3P 65kA@480V Lug In/Lug Out Powerpact
Square D MJL36600 Circuit Breaker | 600V 600A 3P 65kA@480V Lug In/Lug Out Powerpact
Price:
Sale
Sold out
Regular price
$4,297.04 USD
Regular price
$9,456.00 USD
Sale price
$4,297.04 USD
Unit price
per
Shipping calculated at checkout.
Stock:
15 in stock
Couldn't load pickup availability
Product Description:
The Square D MJL36600 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 65kA@480V AIC rating. This breaker uses Lug In/Lug Out connections and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MJL36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJL
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: CBA
✔ UPC: 785901629306
✔ GTIN: 00785901629306
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.13
✔ Panel Type: Equipment Gear
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
