Schneider Electric MJP36400 Circuit Breaker | 600V 400A 3P 65kA@480V Bolt-On Powerpact
Schneider Electric MJP36400 Circuit Breaker | 600V 400A 3P 65kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$3,660.09 USD
Regular price
$11,882.00 USD
Sale price
$3,660.09 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Schneider Electric MJP36400 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400A amperage rating with a 65kA@480V AIC rating. This bolt-on connection breaker includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: MJP36400
✔ Manufacturer: Square D||Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJP
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Solid State

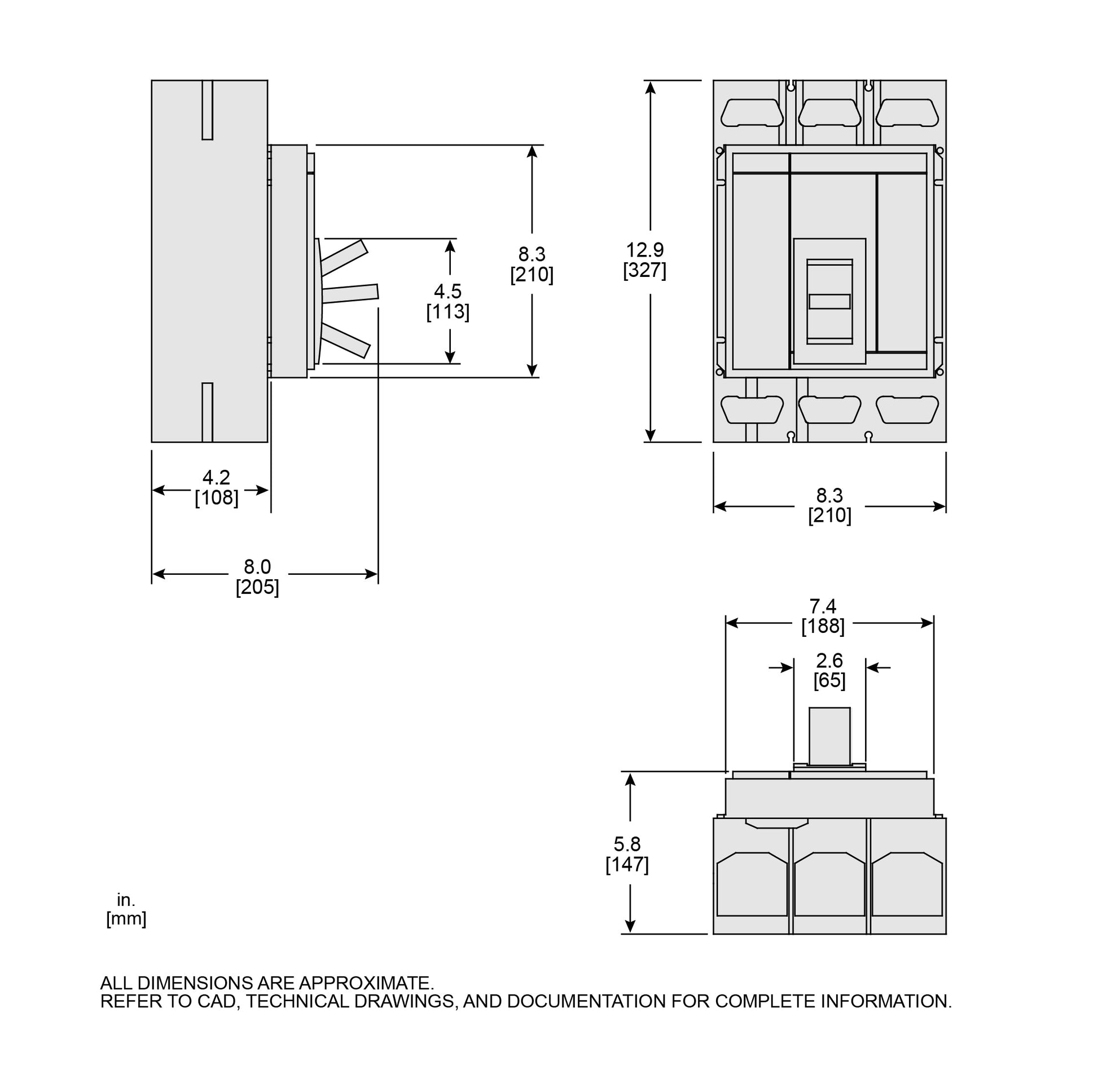

✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 34
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
