Square D MJP36600 Circuit Breaker | 600V 600A 3P 65kA@480V Lug In/Lug Out Powerpact
Square D MJP36600 Circuit Breaker | 600V 600A 3P 65kA@480V Lug In/Lug Out Powerpact
Price:
Sale
Sold out
Regular price
$3,896.42 USD
Regular price
$9,456.00 USD
Sale price
$3,896.42 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:

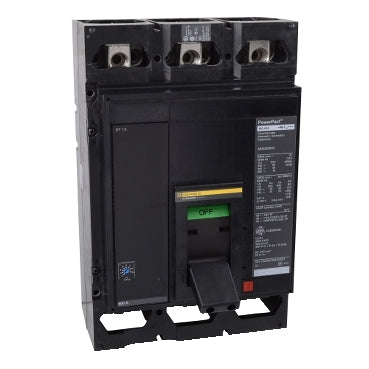

The Square D MJP36600 is a Molded Case Circuit Breaker from the Powerpact family, designed for robust electrical protection. It is a 3-pole, 600-amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This model features solid state protection and a lug in/lug out connection for reliable performance.
Key Features:
✔ Part Number: MJP36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJP
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ MCM Size: Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901785910
✔ GTIN: 03606486284834
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 13.15
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
