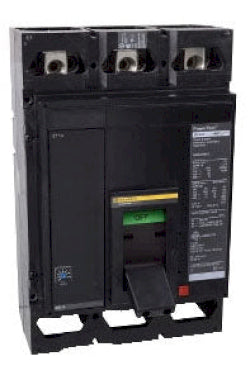

Square D MJP36800 Circuit Breaker | 600V 800A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D MJP36800 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and an 800A amperage rating with a 65kA@480V AIC rating. This bolt-on connection breaker includes solid-state protection and complies with UL, CSA, and IEC standards.

Key Features:
✔ Part Number: MJP36800
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJP
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug, Terminal Nut
✔ Frame Size: M
✔ Wire Size: 3/0 AWG to 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901785910
✔ GTIN: 00785901785910
✔ Country of Origin: Mexico
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H
✔ Weight: 13.24 lbs
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, IEC
