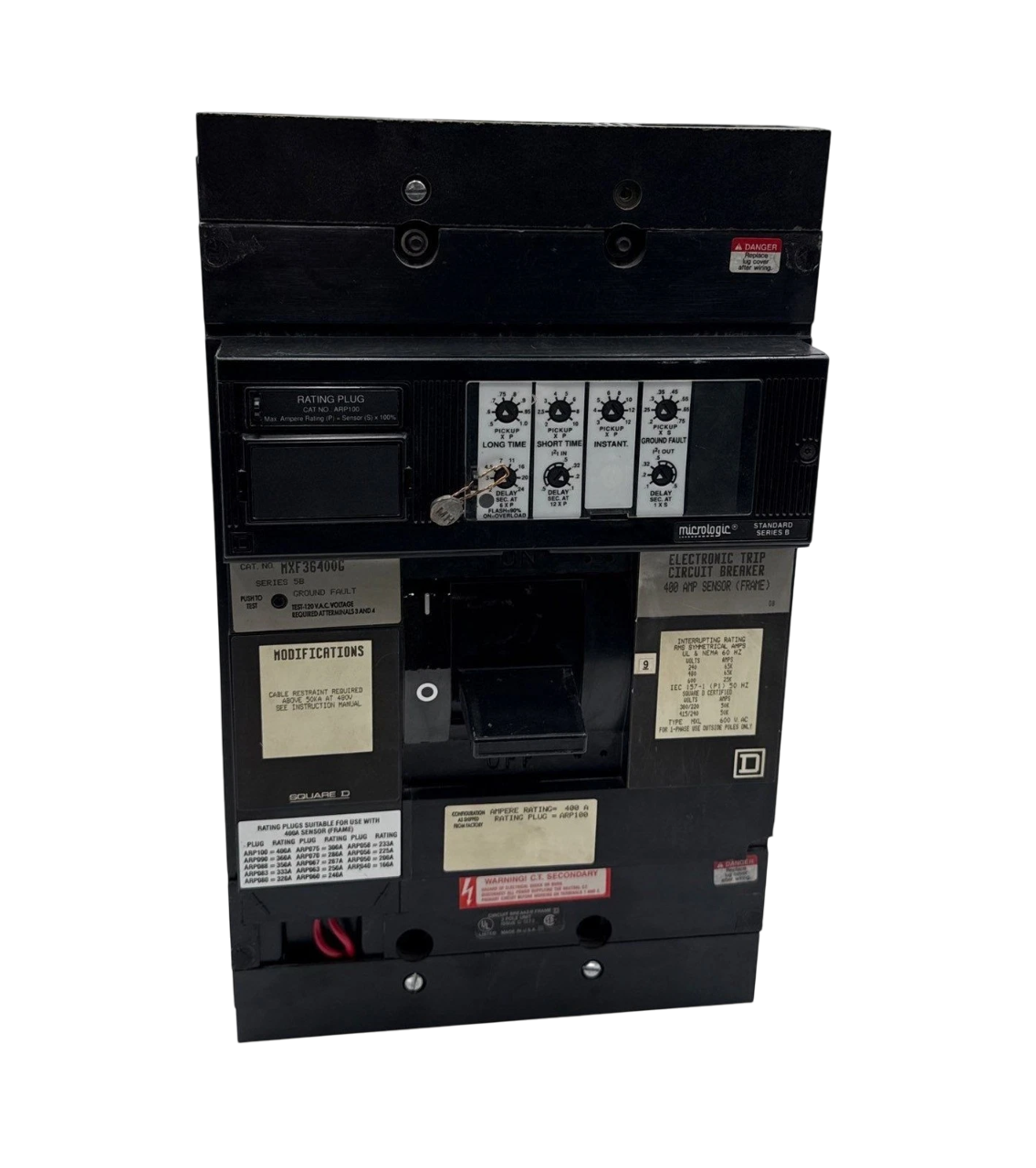

Square D MXF36400 Circuit Breaker | Micrologic MXF 600V 400A
Square D MXF36400 Circuit Breaker | Micrologic MXF 600V 400A
Price:
Sale
Sold out
Regular price
$3,253.33 USD
Regular price
Sale price
$3,253.33 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MXF36400 is a Molded Case Circuit Breaker from the Micrologic family. It features 3 poles, 600V voltage, and a 400A amperage rating with a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Solid State protection. Lugs are not included with this unit.
Key Features:
✔ Part Number: MXF36400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Micrologic
✔ Type: MXF
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Protection: Solid State
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47mm x 210.06mm x 326.64mm)
✔ Weight: 50 lbs
