Cutler Hammer NGH312032E Circuit Breaker | 600V 1200A 3P 65kA@480V Bolt-On Series G

Product Description:

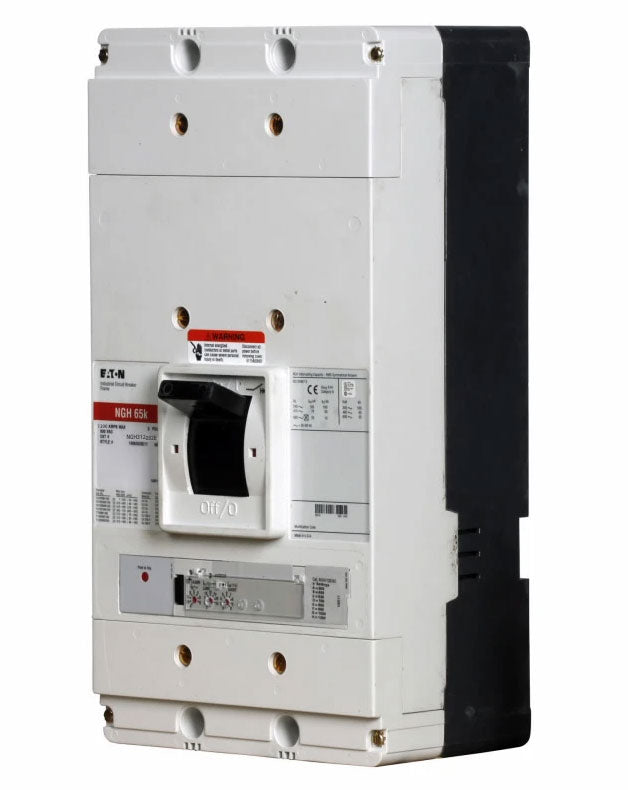

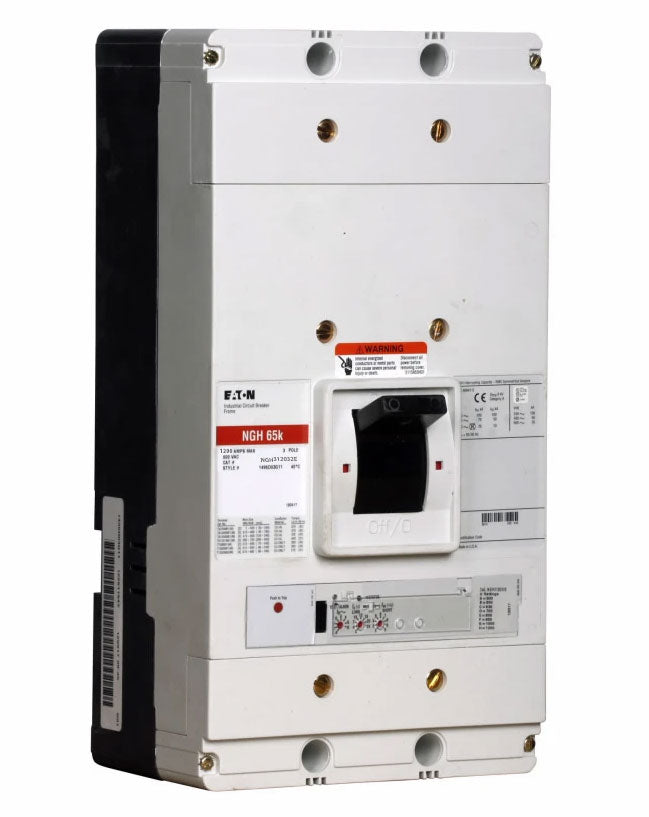

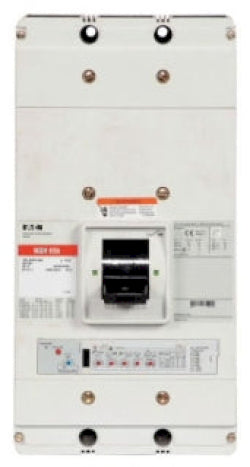

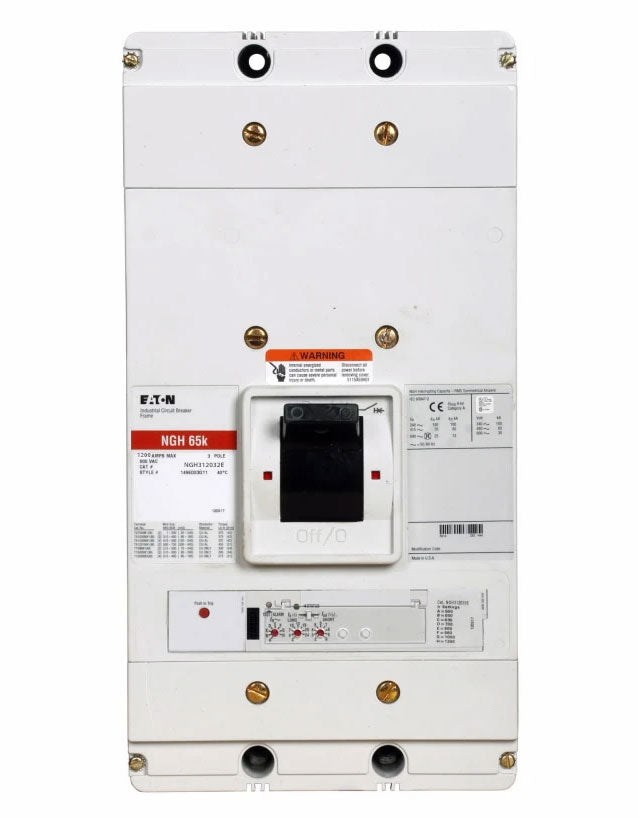

The Cutler Hammer NGH312032E is a 3-pole molded case circuit breaker with a 1200 amp rating and 600V capacity. It features solid state protection and bolt-on connections for secure installation. This breaker is part of the Series G family and has an AIC rating of 65kA@480V. It is designed for use in various panel types including Allen Bradley MCC and Eaton MCC.

Key Features:
✔ Part Number: NGH312032E
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: NGH
✔ Voltage: 600
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 1200A/N
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 500 MCM
✔ Breaker Type: LSI Functionality
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 786685379227
✔ GTIN: 00786685379227
✔ Country of Origin: United States
✔ Dimensions: 9 in x 9 in
✔ Weight: 65 lb
✔ Panel Type: Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
✔ Standards: CSA Certified, IEC Rated, UL Listed
✔ Certification: CSA Certified, IEC Rated, UL Listed
