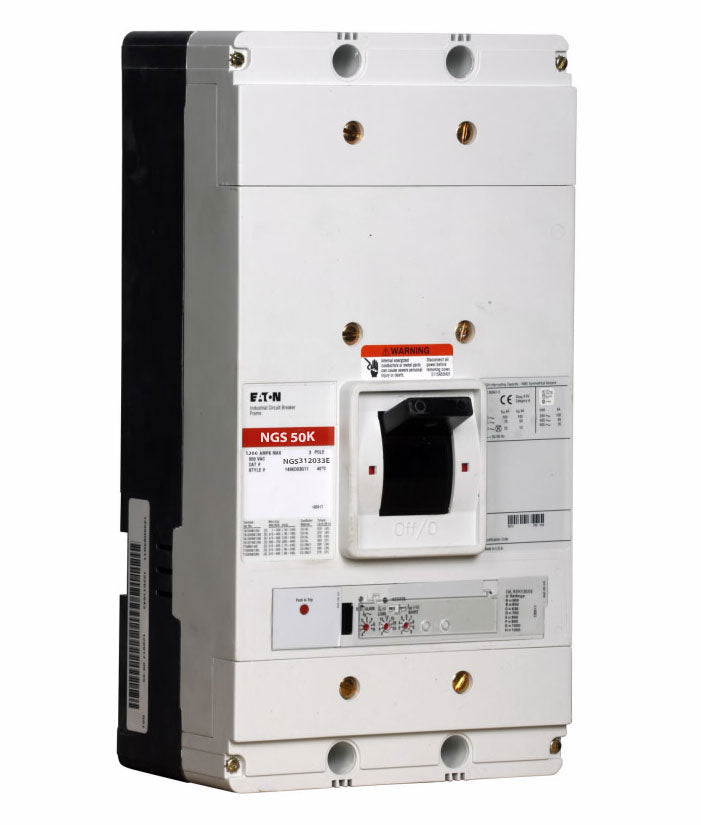

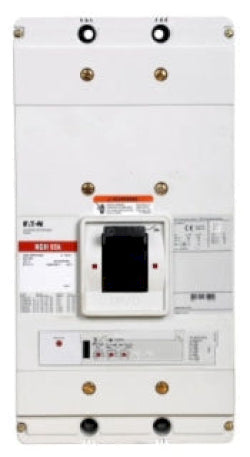

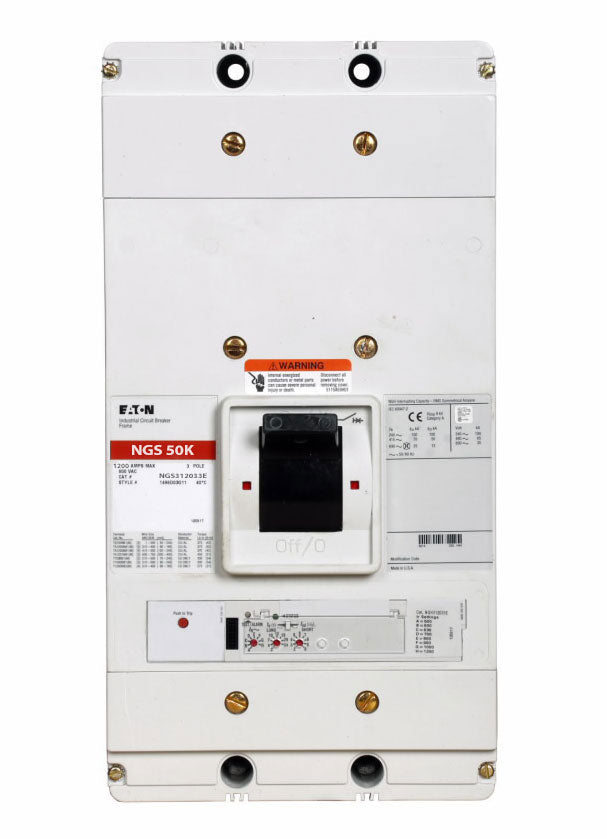

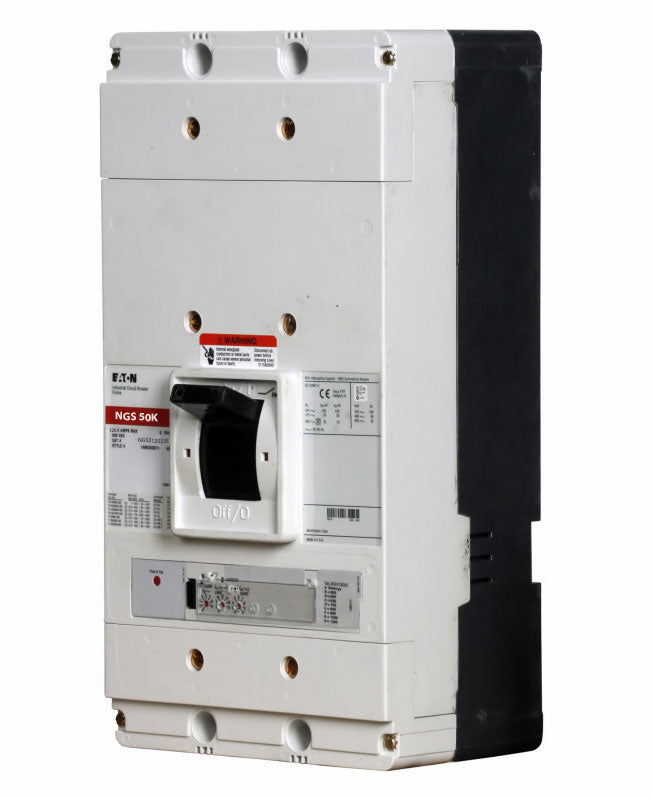

Cutler Hammer NGS312033E Circuit Breaker | 1200A 480Vac Seri

Product Description:
The NGS312033E is a Cutler Hammer Series G molded case circuit breaker designed for dependable protection in industrial and commercial power systems. It features 3-phase, 3-pole LS functionality with a Digitrip 310 RMS electronic LS trip and solid state electronic protection. Rated for 480 Vac and 1200 A, it includes bolt-on line and load connection with line/load lug terminal connections.

Key Features:
Manufacturer: Cutler Hammer
Brand: Cutler Hammer
Item Category: 1
Item Subcategory: Molded Case
Family: Series G
Type: NGS
Voltage Rating: 480 VacV
Current Rating: 1200 AA
Phase: 3
Poles: 3
AIC rating: 50 kA at 480 Vac, 85 kA at 240 Vac
Connection: Bolt-on, line and load
Functions: LS long-time and short-time, Digitrip 310 RMS electronic LS trip
Terminal Connection: Line/Load Lug
Frame Size: 1200A/N
Temp Rating: 40 C
MCM Size: Min. Wire Size 4 AWG Max. Wire Size 500 MCM
Breaker Type: LS Functionality
Hz: 50-60 Hz
Protection: Solid state electronic
Phase Connection: ABC
Trip Type: T167 electronic LS
