Eaton NGS312035E Circuit Breaker | 1200A 3P 480VV Series G

Product Description:

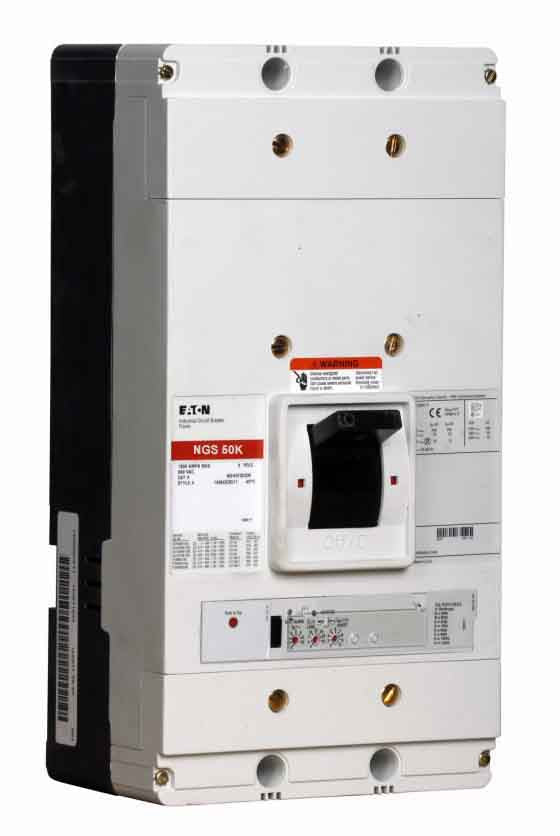

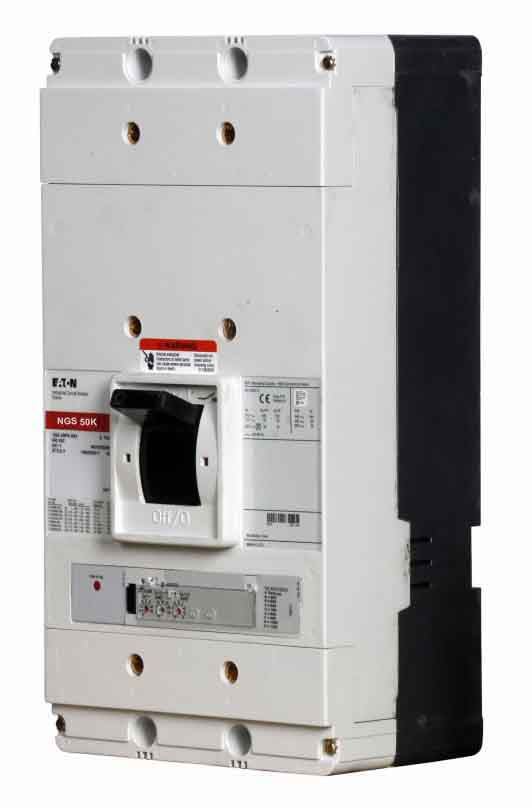

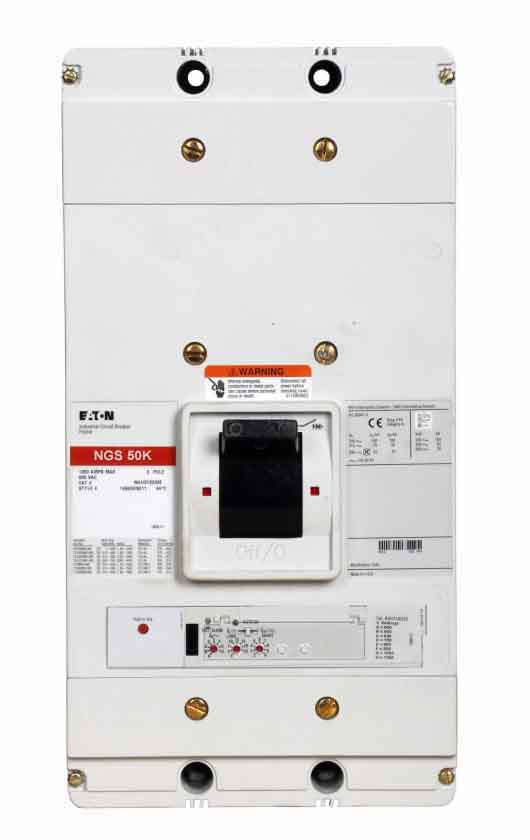

The Eaton Cutler Hammer NGS312035E is a Series G NG-frame molded case circuit breaker designed for reliable protection in demanding electrical systems. It features a 1200 A current rating, 480 V voltage rating, and 3-pole, 3-phase configuration with LSG electronic trip functionality. This breaker uses bolt-on, imperial tapped line and load terminals and is rated for solid-state protection with a 50 kA AIC rating.

Key Features:
Manufacturer: Eaton Cutler Hammer
Brand: Eaton Cutler Hammer
Item Category: 1
Item Subcategory: Molded Case
Family: Series G NG-frame molded case circuit breaker
Type: Molded case circuit breaker
Voltage Rating: 480 VV
Current Rating: 1200 AA
Phase: 3
Poles: 3
AIC rating: 50 kA
Connection: Bolt-on, imperial tapped line and load terminals
Functions: LSG - Long-Time, Short-Time and Ground Fault
Terminal Connection: Line/Load Lug
Frame Size: NG-frame 1200 A
Temp Rating: Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
MCM Size: Min. Wire Size 4 AWG Max. Wire Size 500 MCM
Breaker Type: Series G NG-frame electronic LSG trip
Hz: 50-60 Hz
Protection: Solid State
Phase Connection: ABC
Trip Type: Digitrip 310+ electronic LSG
