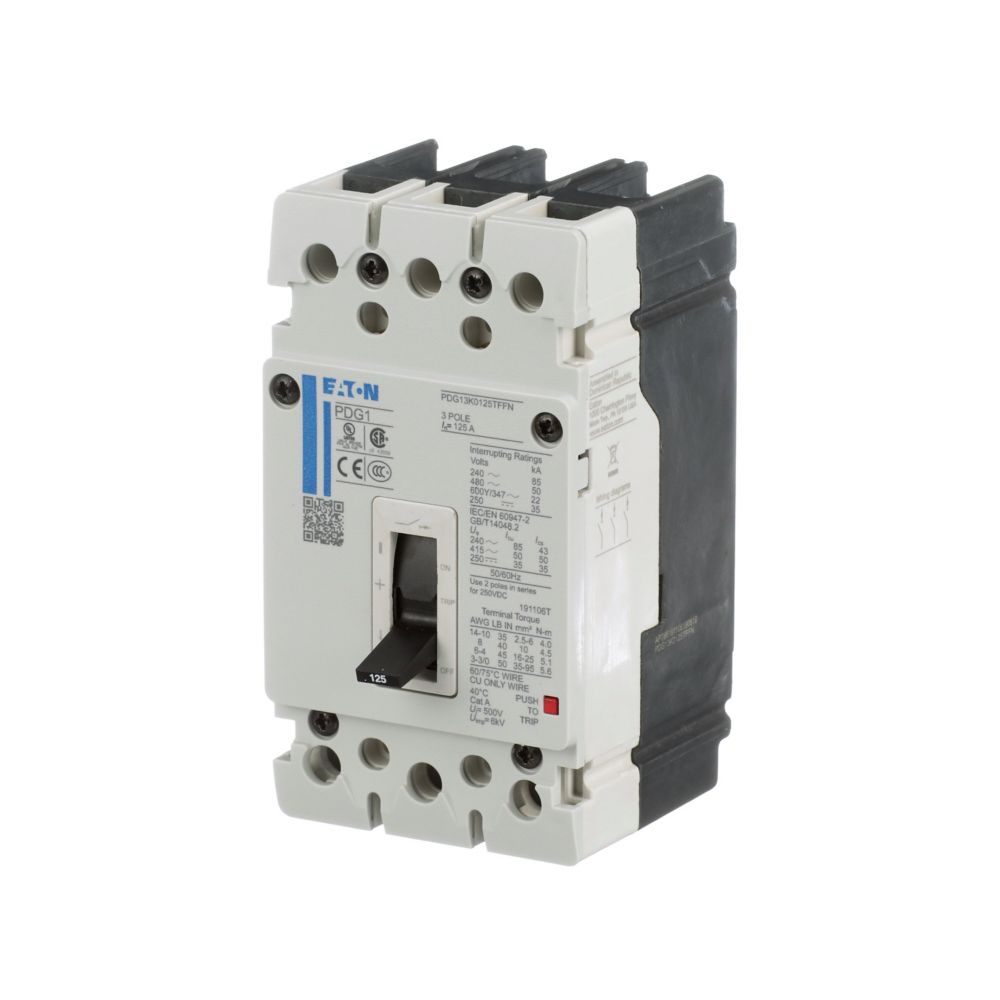

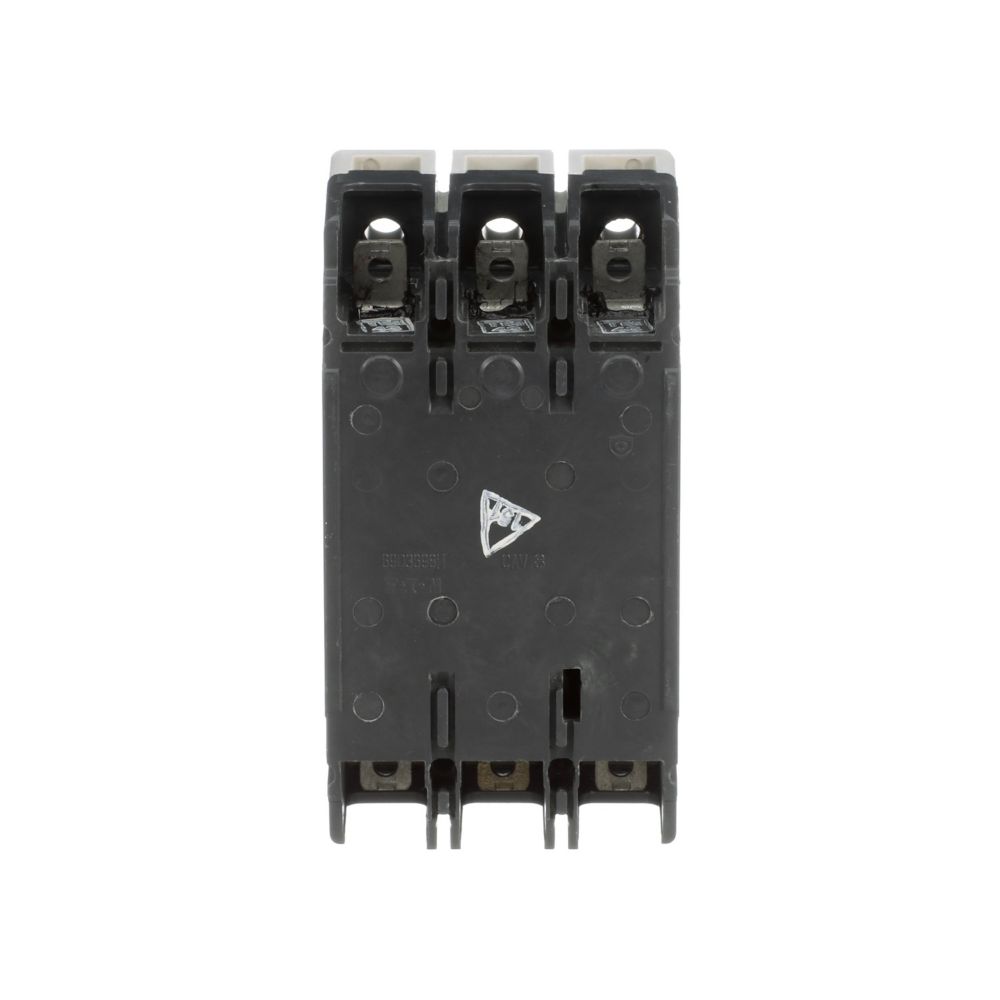

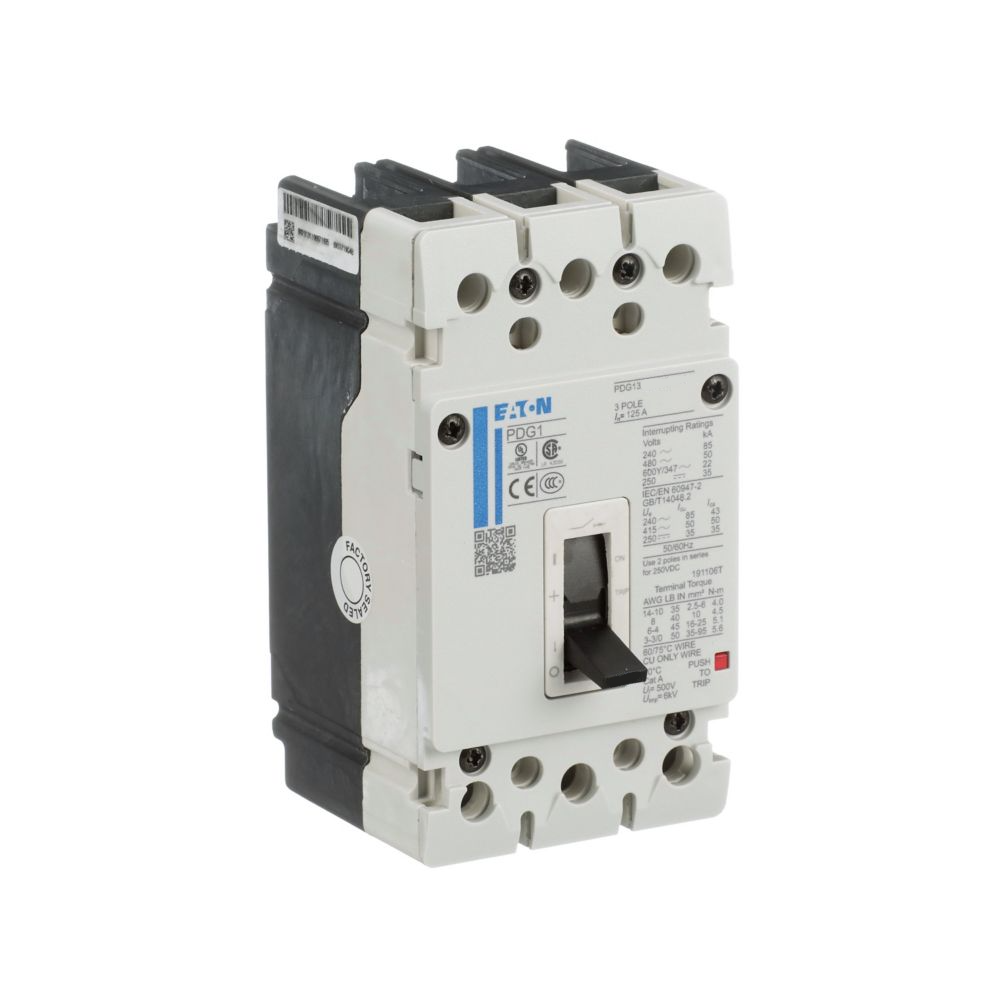

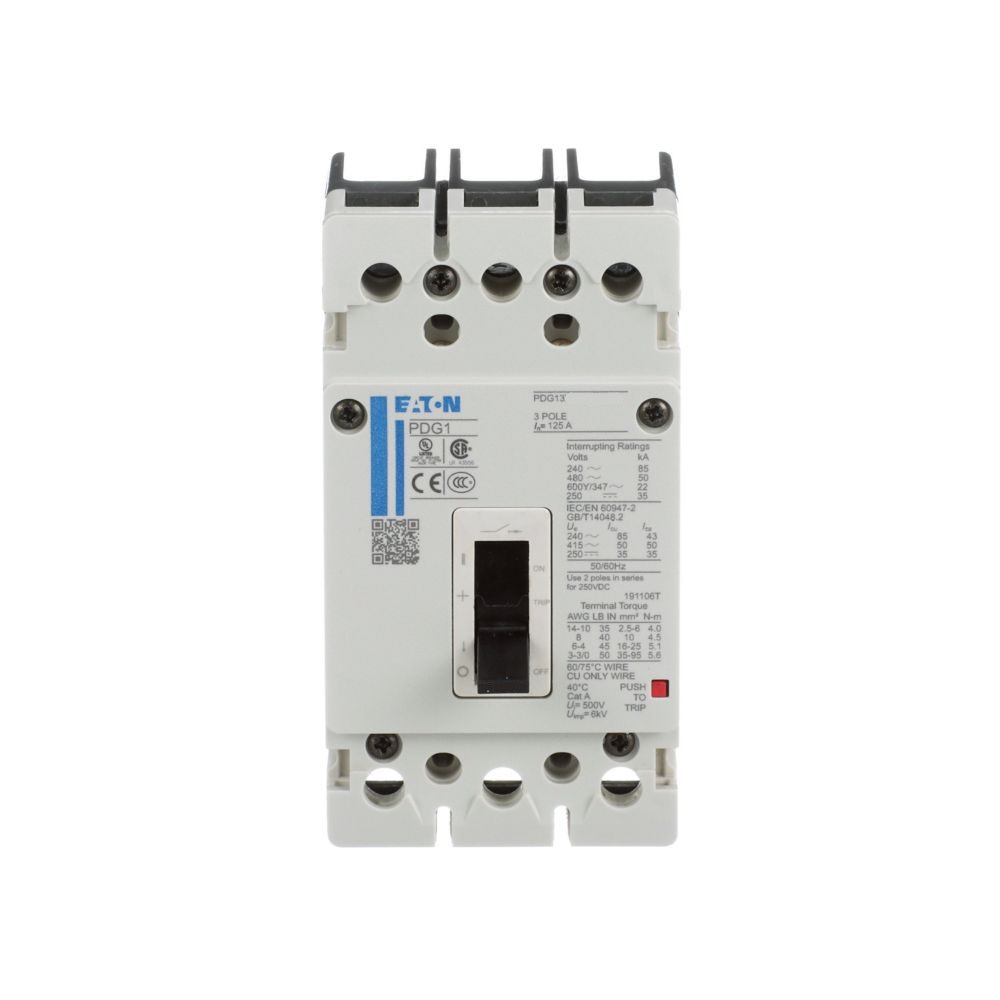

Eaton PDG13C0080TFFJ Circuit Breaker | Power Defense Series PDG 600V 80A

Product Description:
The Eaton PDG13C0080TFFJ is a Molded Case Circuit Breaker from the Power Defense Series. It features a 3-pole design with a 600V, 80A rating and an 18kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is certified for safety and performance standards.

Key Features:
✔ Part Number: PDG13C0080TFFJ
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600V
✔ Amperage: 80A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Bolt-On
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Temp Rating: -4 to 158°F
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
✔ UPC: 786679280720
✔ GTIN: 00786679280720
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3.5 in x 4.5 in x 6.5 in
✔ Weight: 5 lbs
