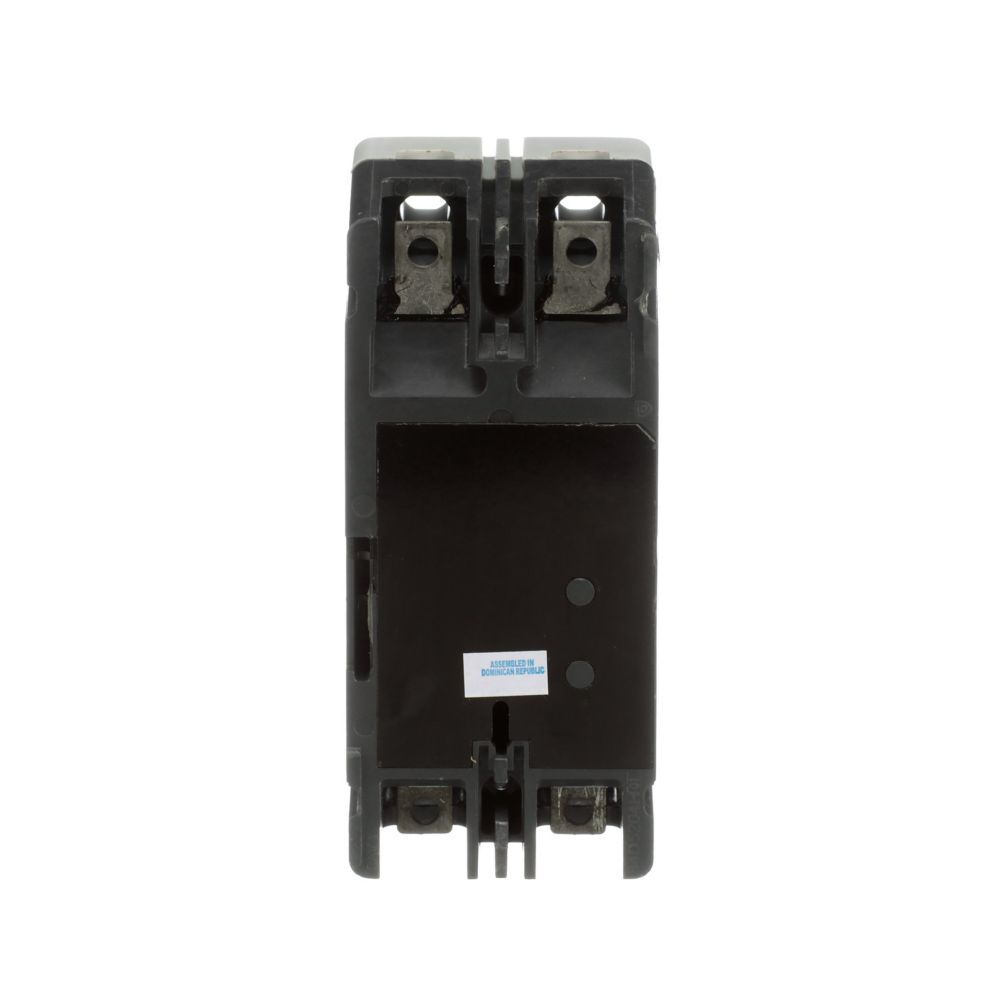

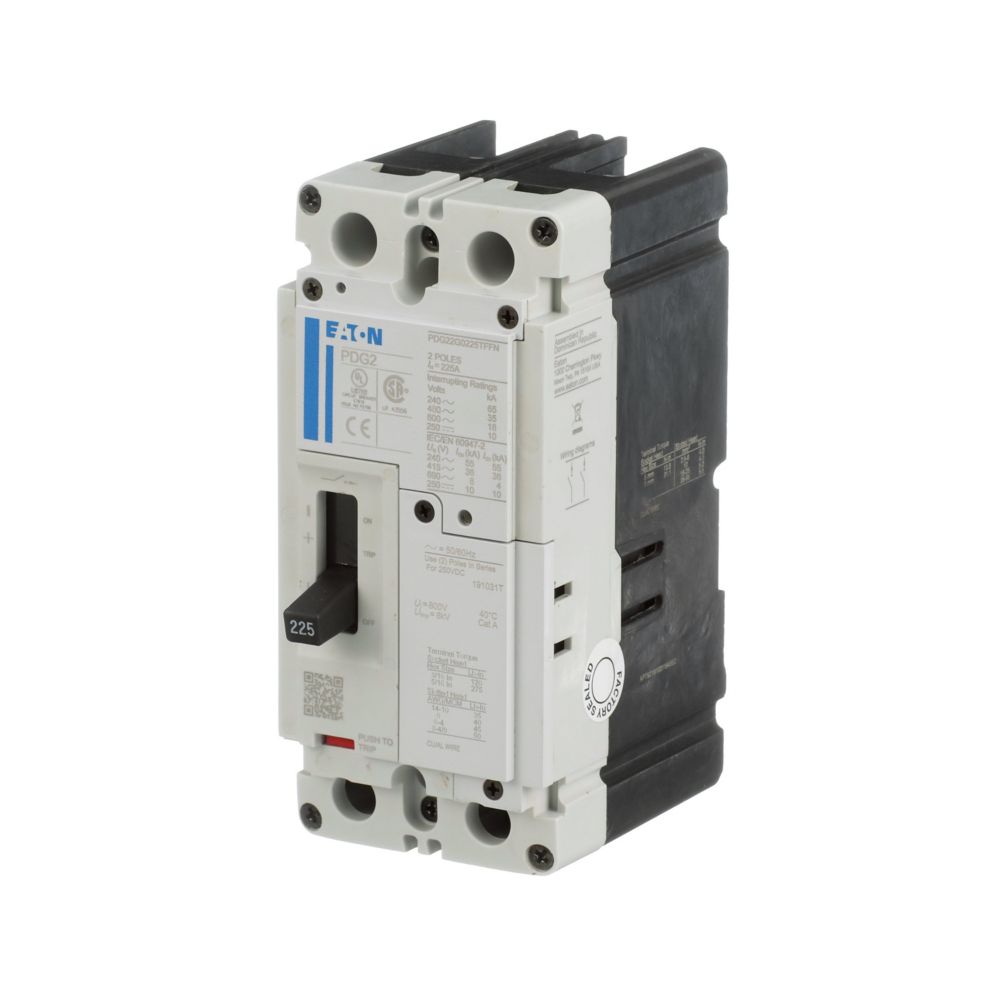

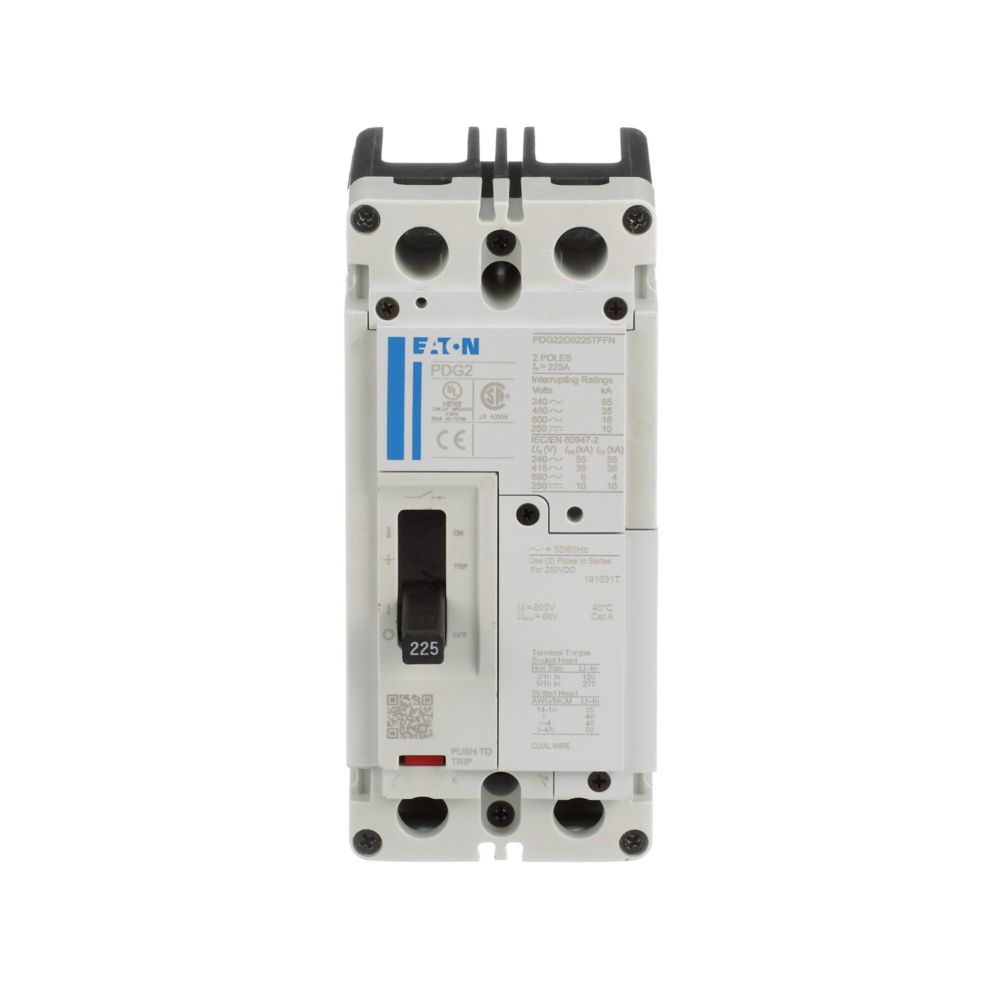

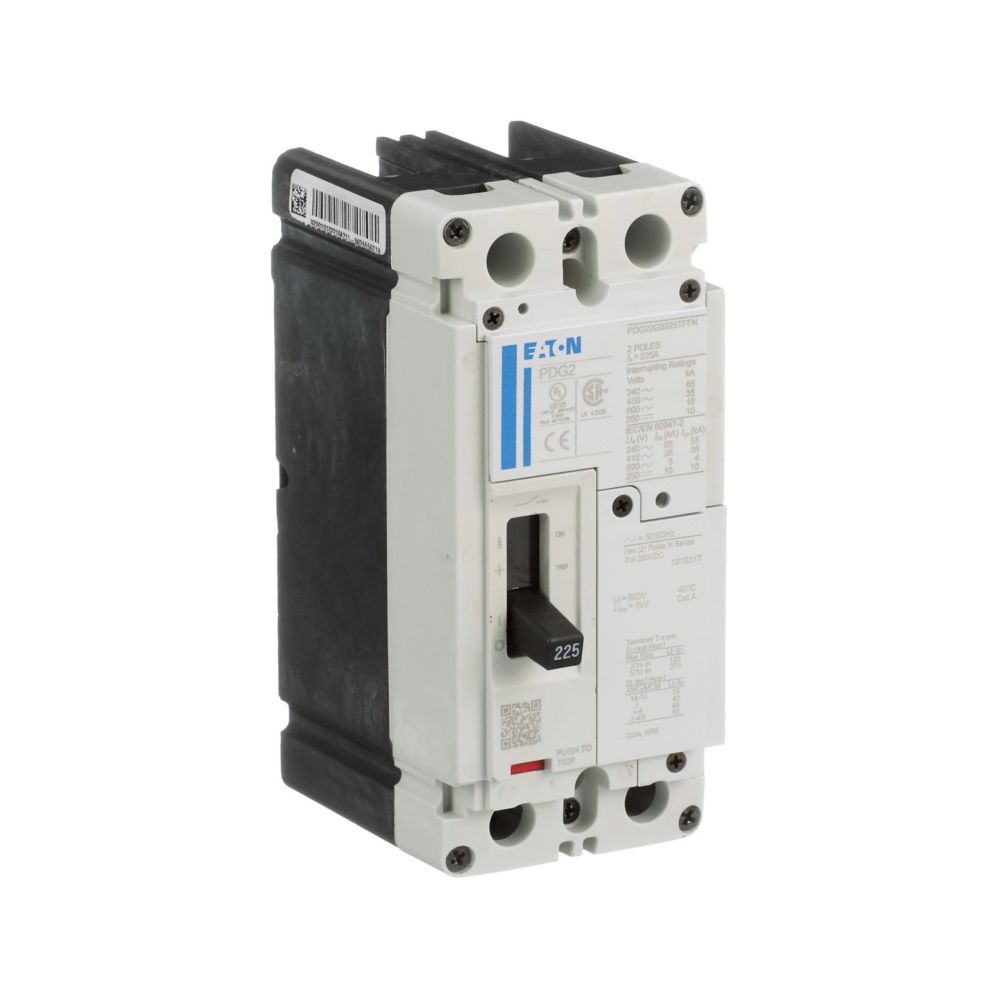

Eaton PDG22G0050TFFJ Circuit Breaker | 600V 50A 2P 35kA@480V Feed-Thru Power Defense

Product Description:
The PDG22G0050TFFJ is a high-performance molded case circuit breaker from the Power Defense family, designed for reliable protection in electrical systems. It features thermal magnetic protection and is suitable for 600V applications with a 50A amperage rating. This 2-pole breaker meets industry standards including UL 489 and CSA certifications, ensuring safety and durability.

Key Features:
✔ Part Number: PDG22G0050TFFJ
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 786679252291
✔ GTIN: 00786679252291
✔ Country of Origin: Dominican Republic
✔ Weight: 4.74 lb
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
