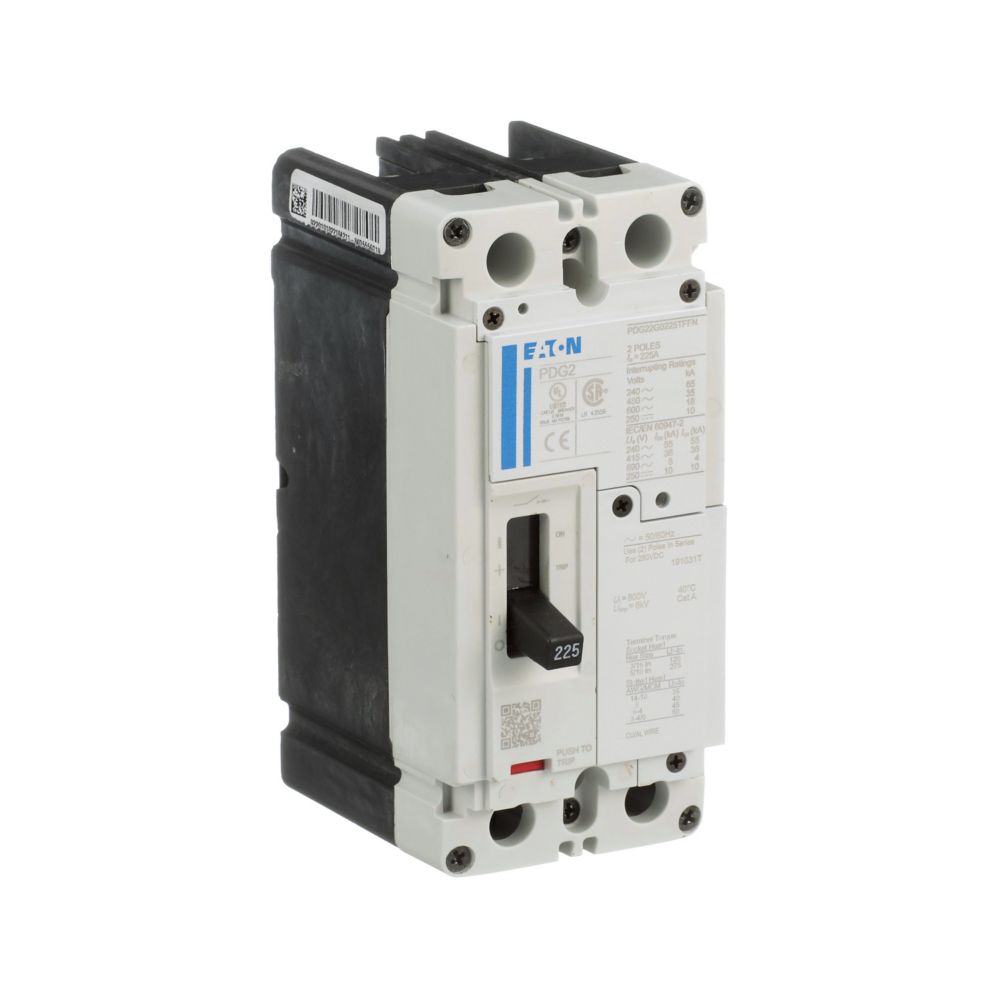

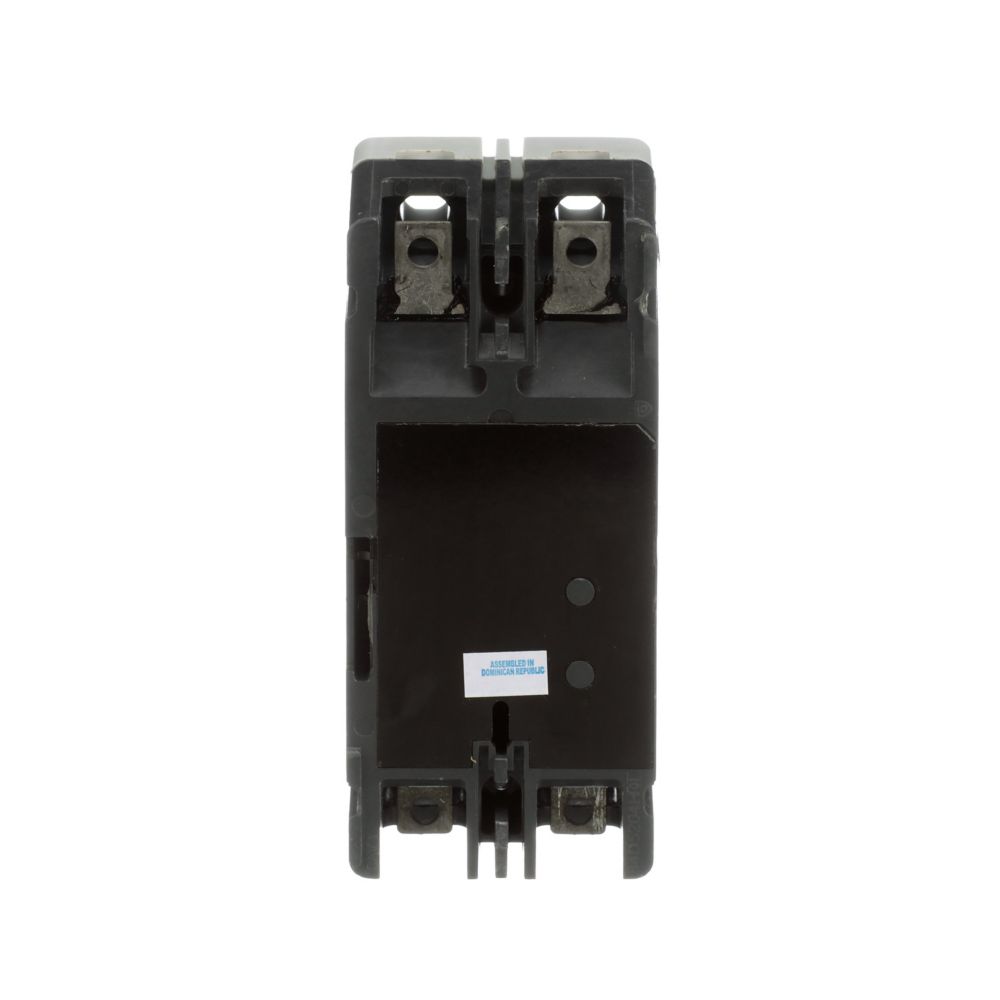

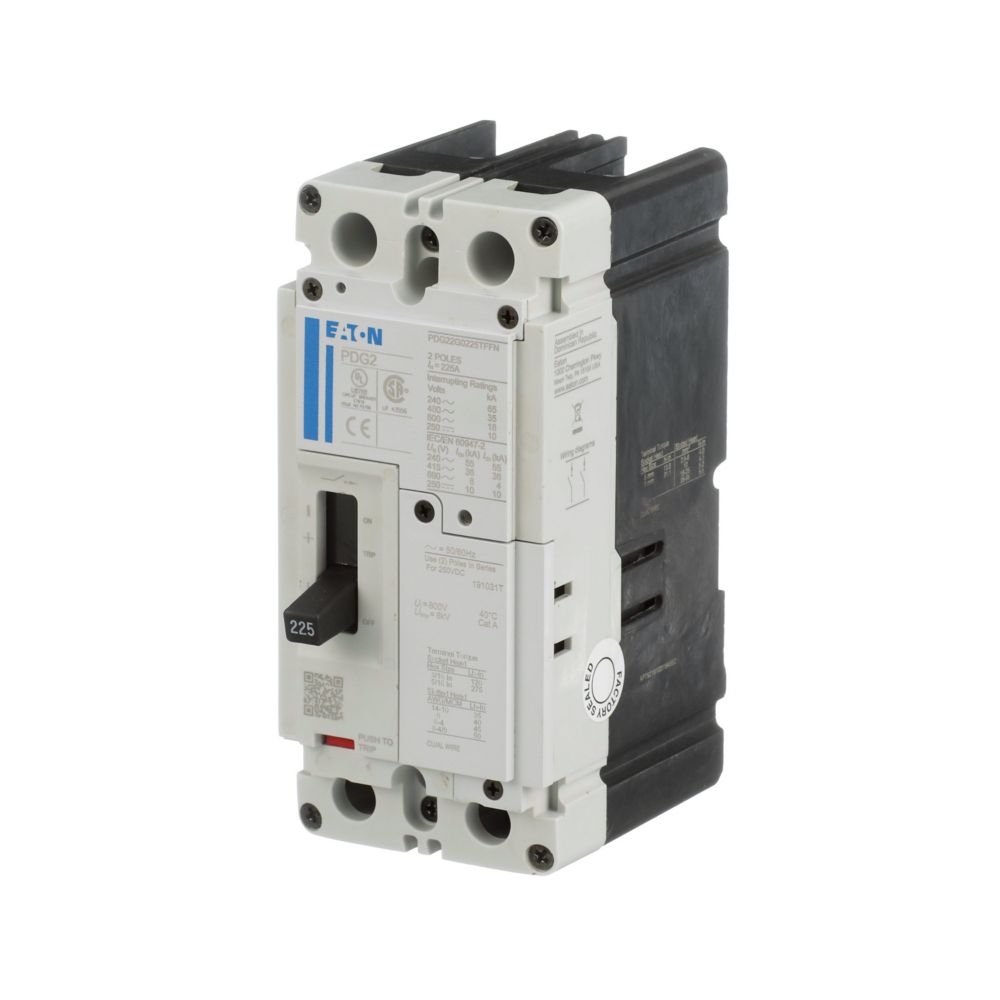

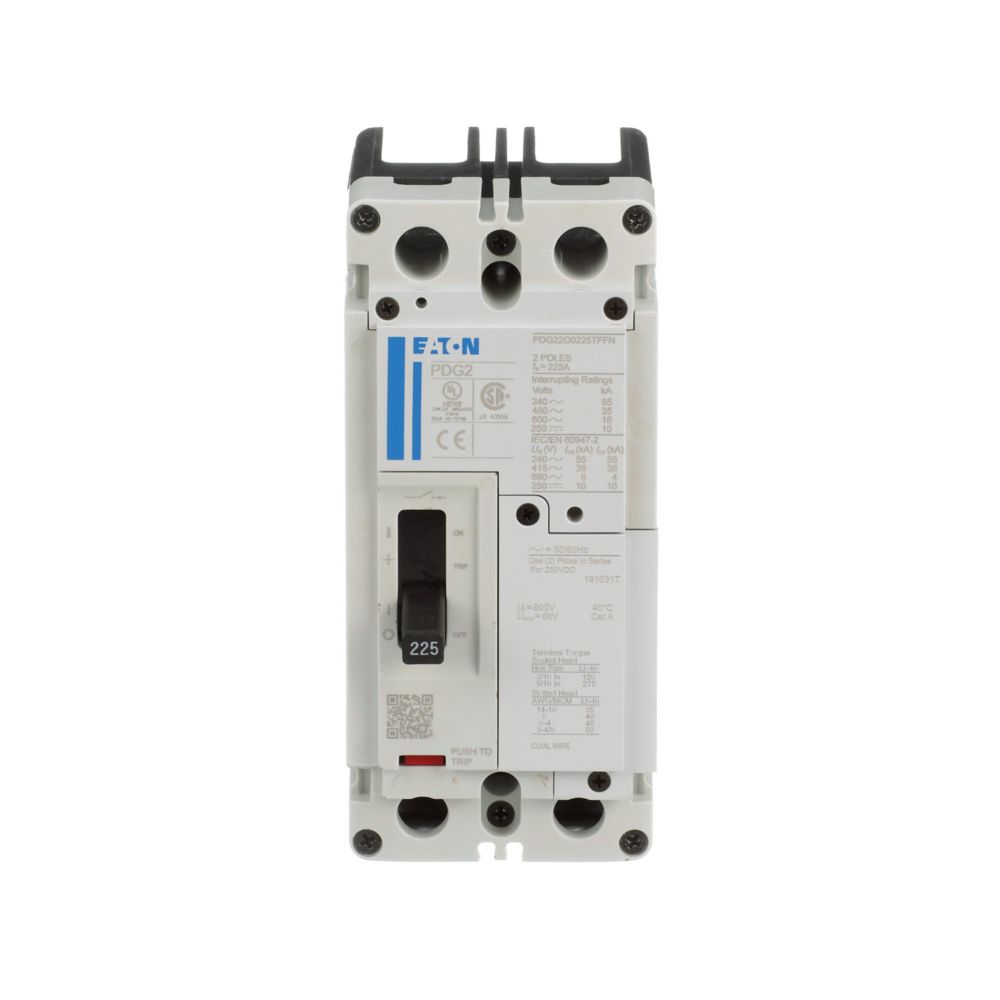

Eaton PDG22G0100TFFL Circuit Breaker | 600V 100A 2P 35kA@480V Bolt-On Power Defense Series

Product Description:
The Eaton PDG22G0100TFFL is a Molded Case Circuit Breaker from the Power Defense Series. It features 2 poles, 600V voltage, and a 100A amperage rating with a 35kA@480V AIC rating. This thermal magnetic breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: PDG22G0100TFFL
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 786679992357
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.11 in x 6 in
✔ Weight: 4.74
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
