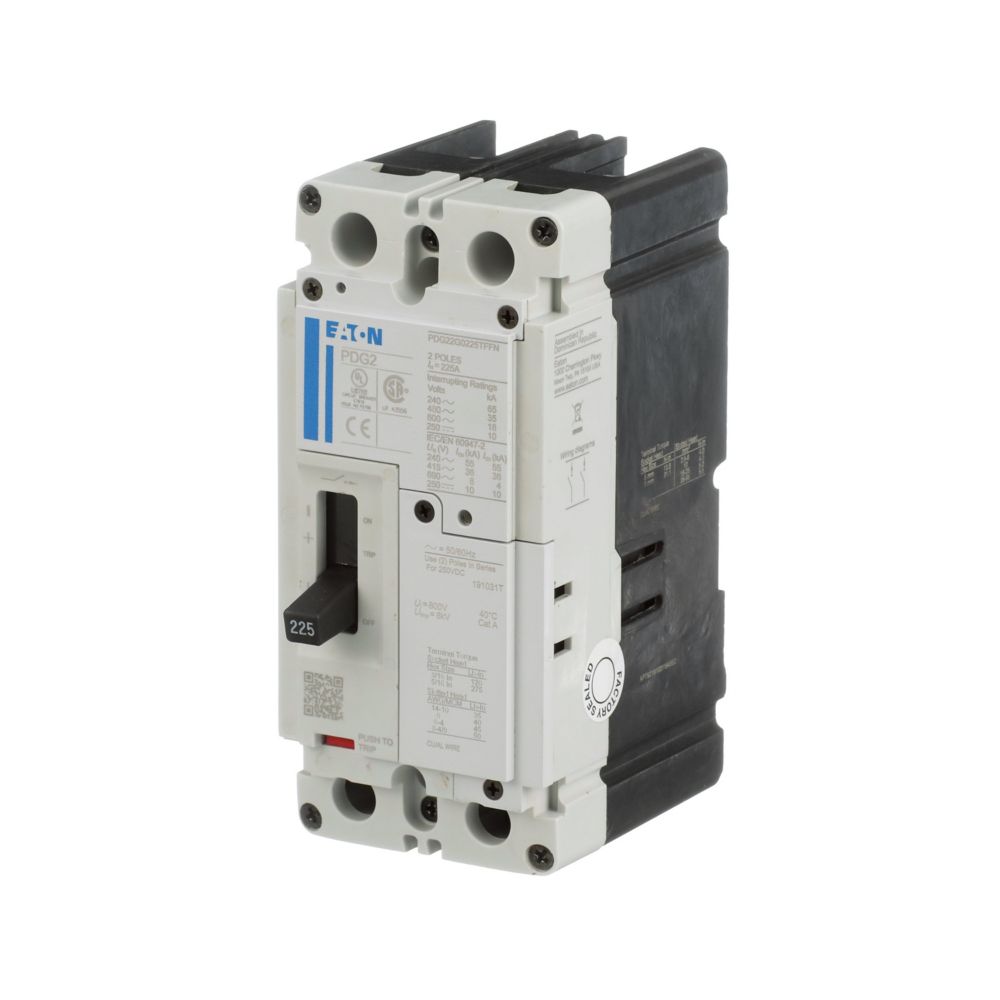

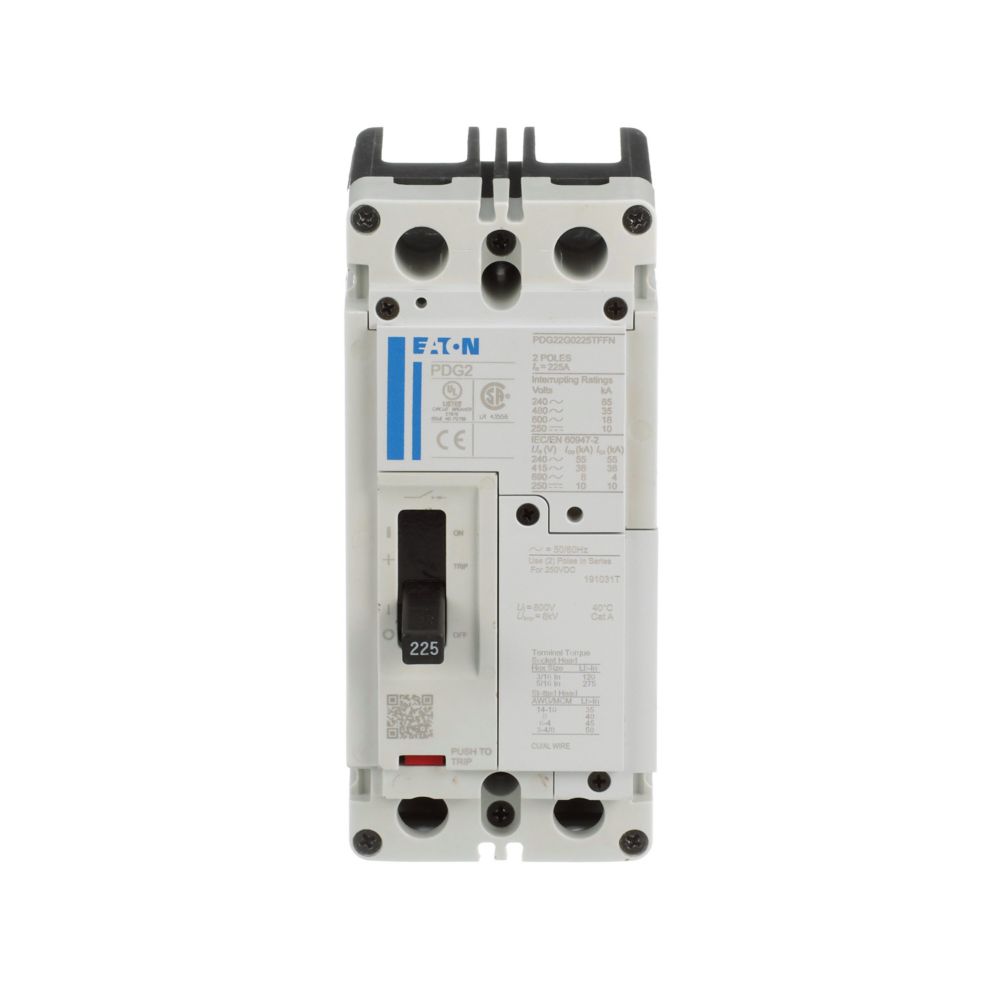

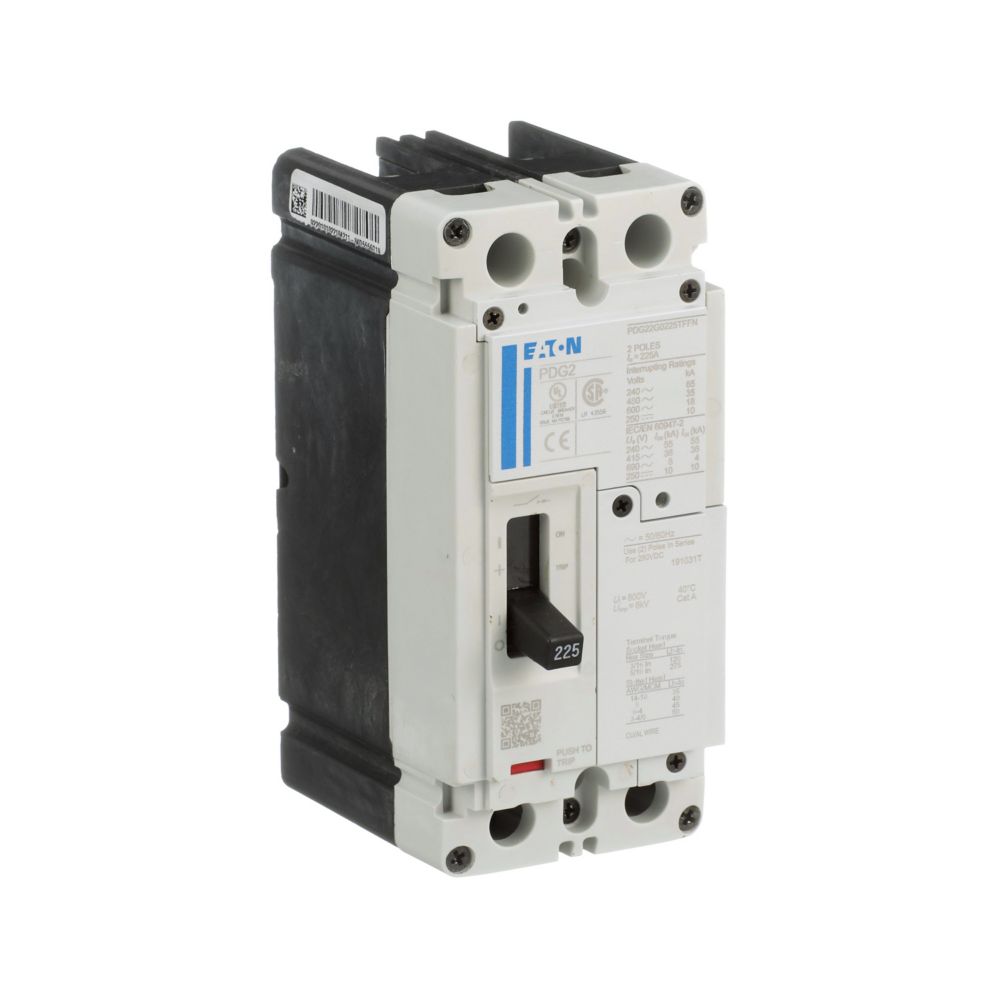

Eaton PDG22G0225TFFJ Circuit Breaker | 600V 225A 2P 35kA@480V Power Defense Series

Product Description:
The Eaton PDG22G0225TFFJ is a high-performance molded case circuit breaker from the Power Defense Series, designed for industrial and commercial applications. It offers reliable thermal magnetic protection with a 600V voltage rating and 225A amperage capacity. This 2-pole breaker features a feed-thru connection and meets multiple certifications including UL 489 and CSA.

Key Features:
✔ Part Number: PDG22G0225TFFJ
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 78667925058
✔ GTIN: 00786679250587
✔ Country of Origin: Dominican Republic
✔ Weight: 12.5
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
