Product Description:

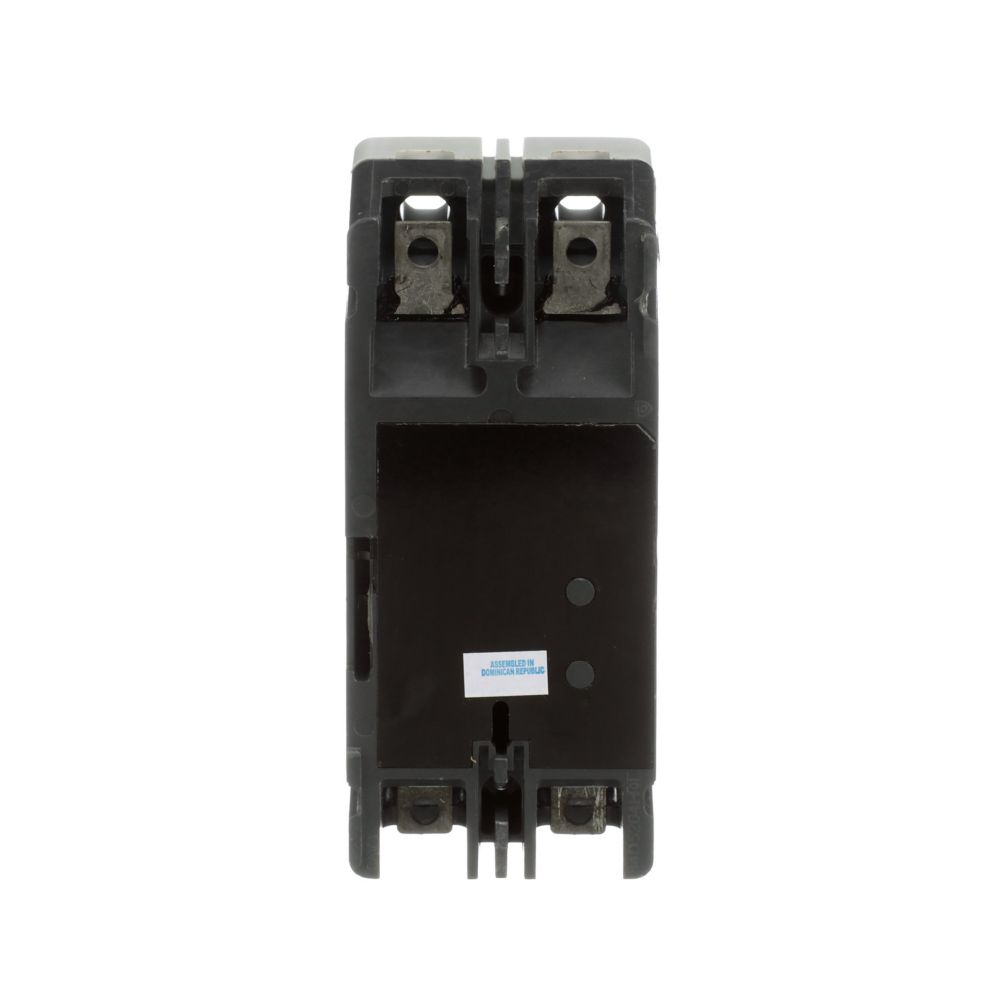

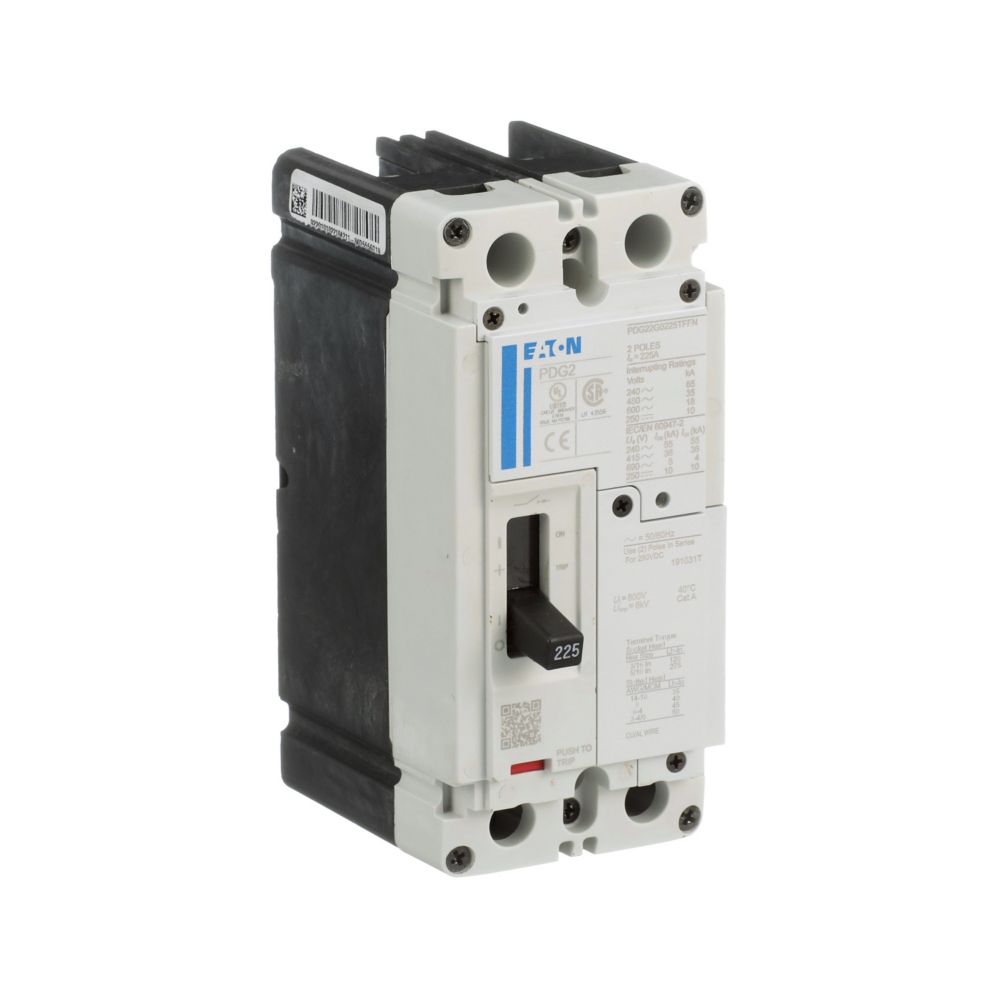

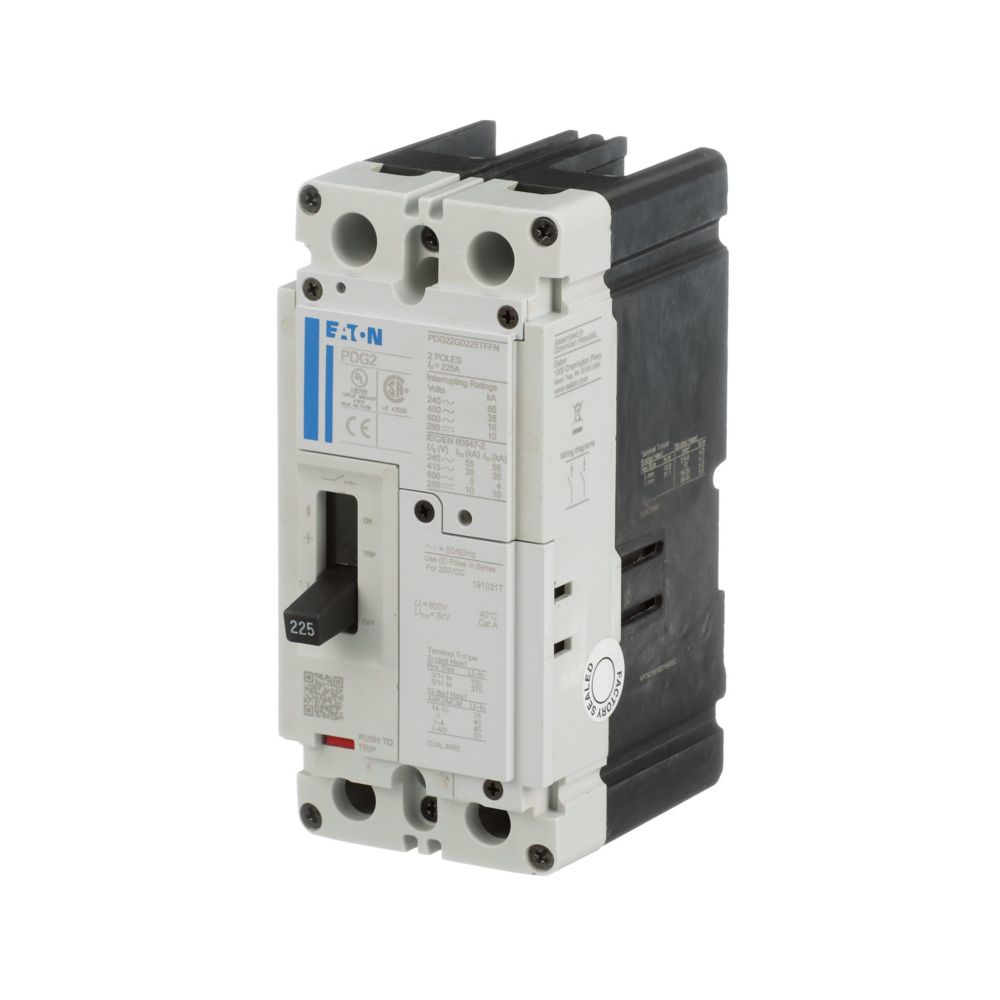

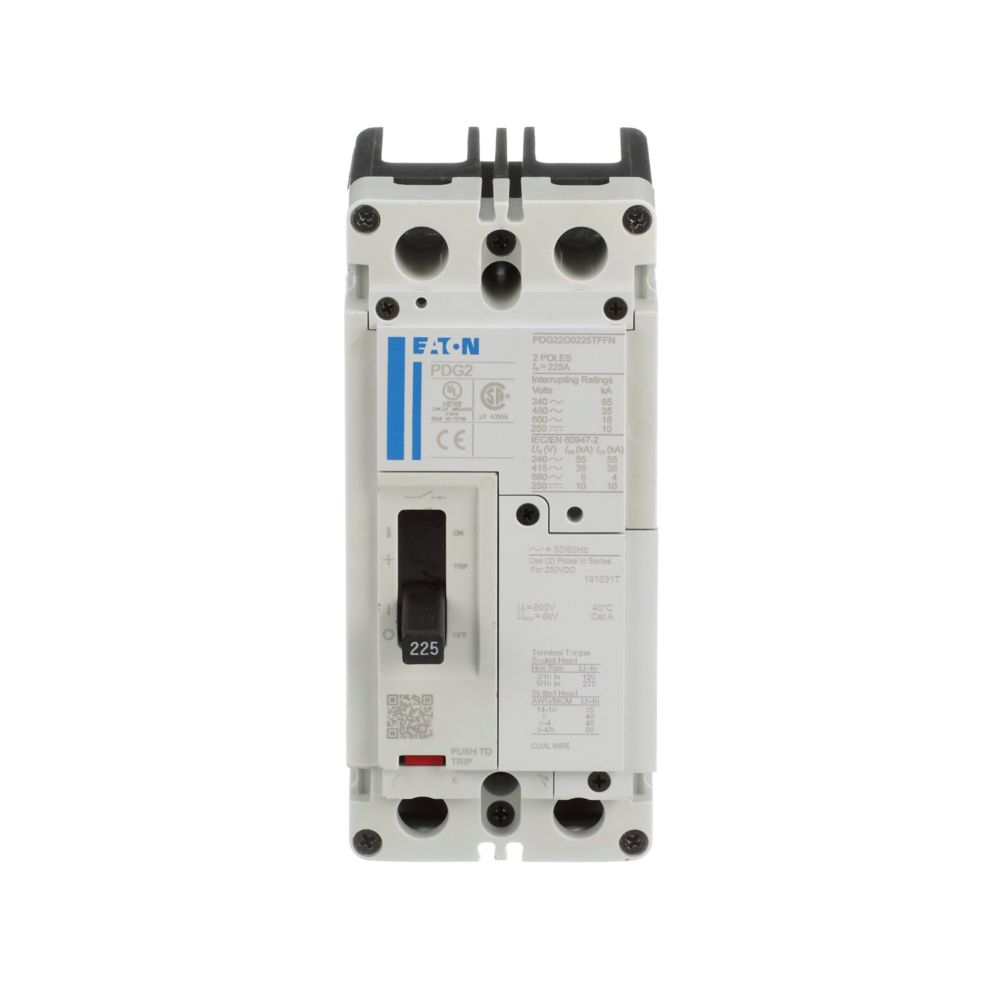

The Eaton PDG22G0225TFFL is a Molded Case Circuit Breaker from the Power Defense Series. It features 2 poles, 600V voltage, and a 225A amperage rating with a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: PDG22G0225TFFL
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ Country of Origin: Dominican Republic
✔ Weight: 12.5
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
