Product Description:

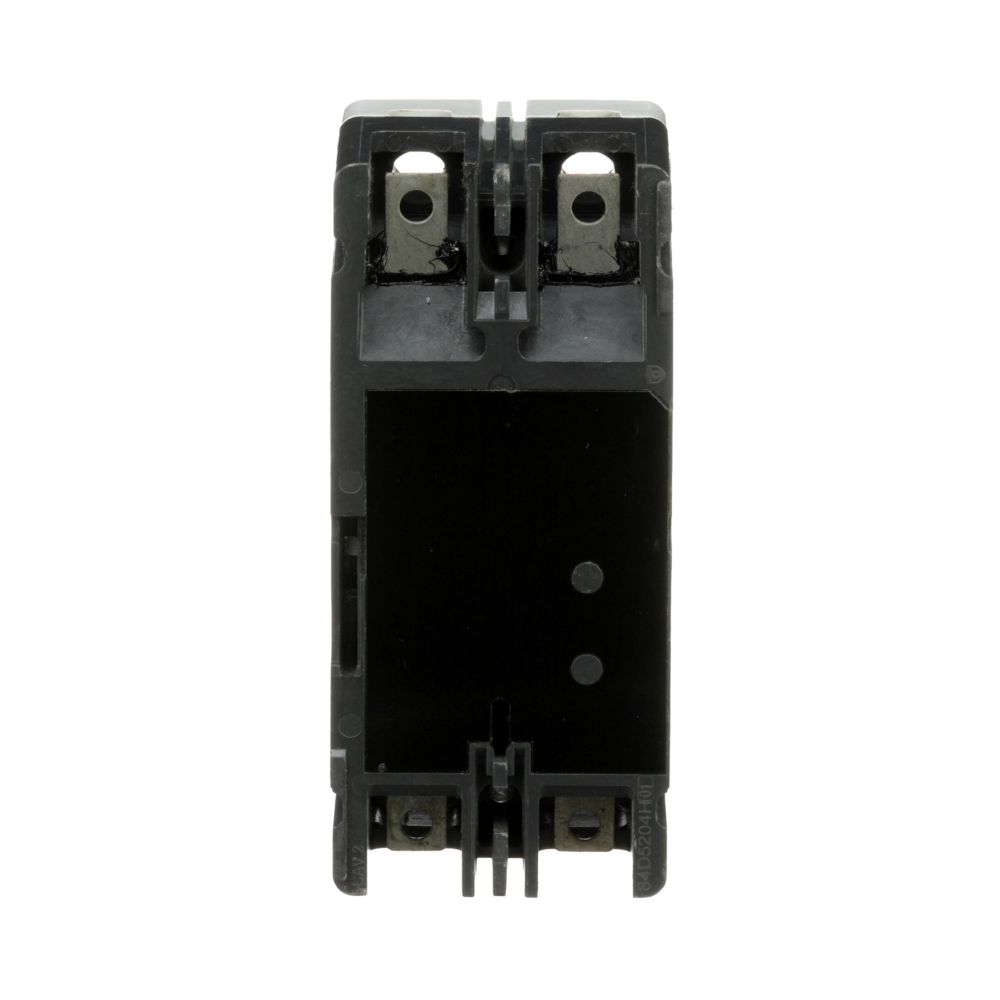

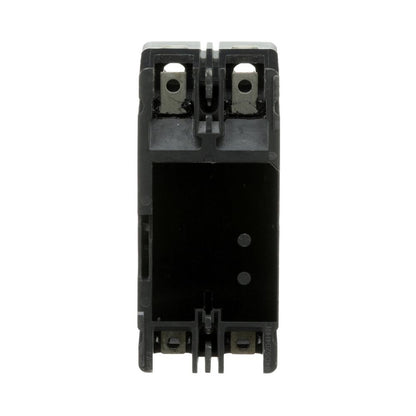

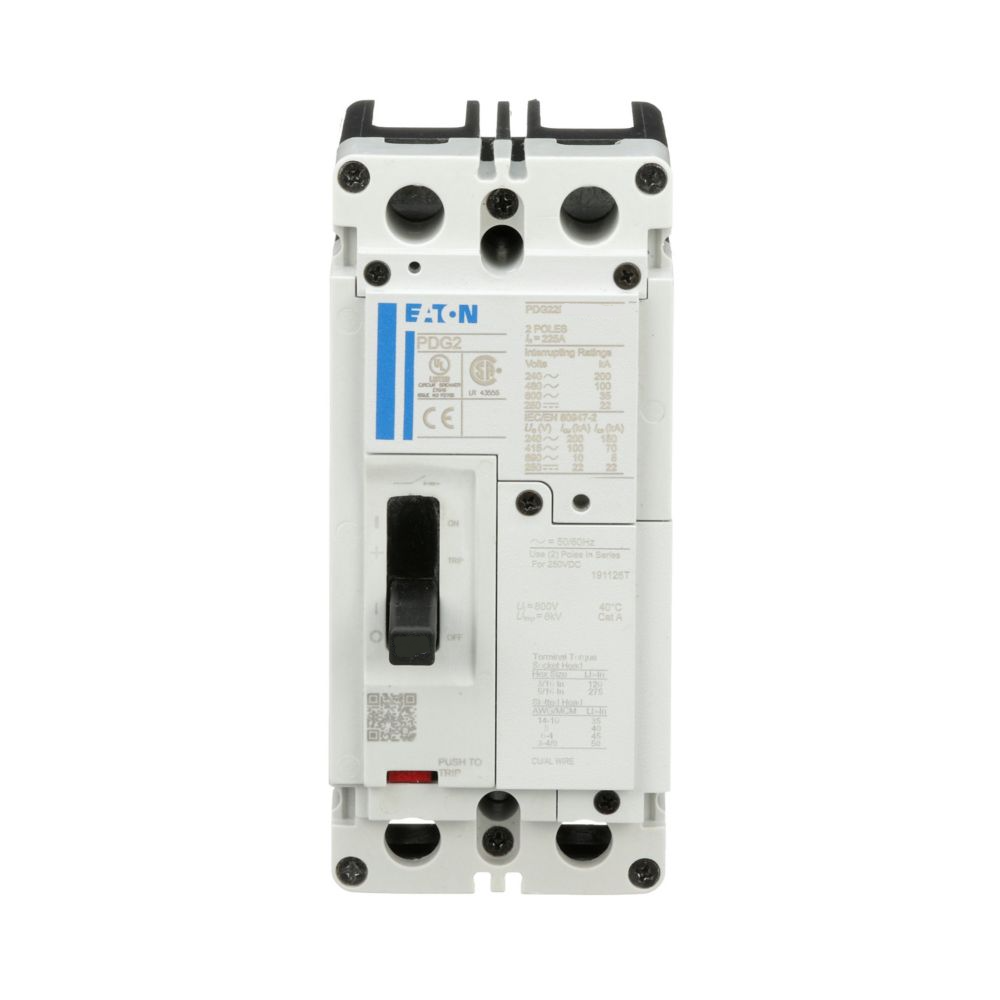

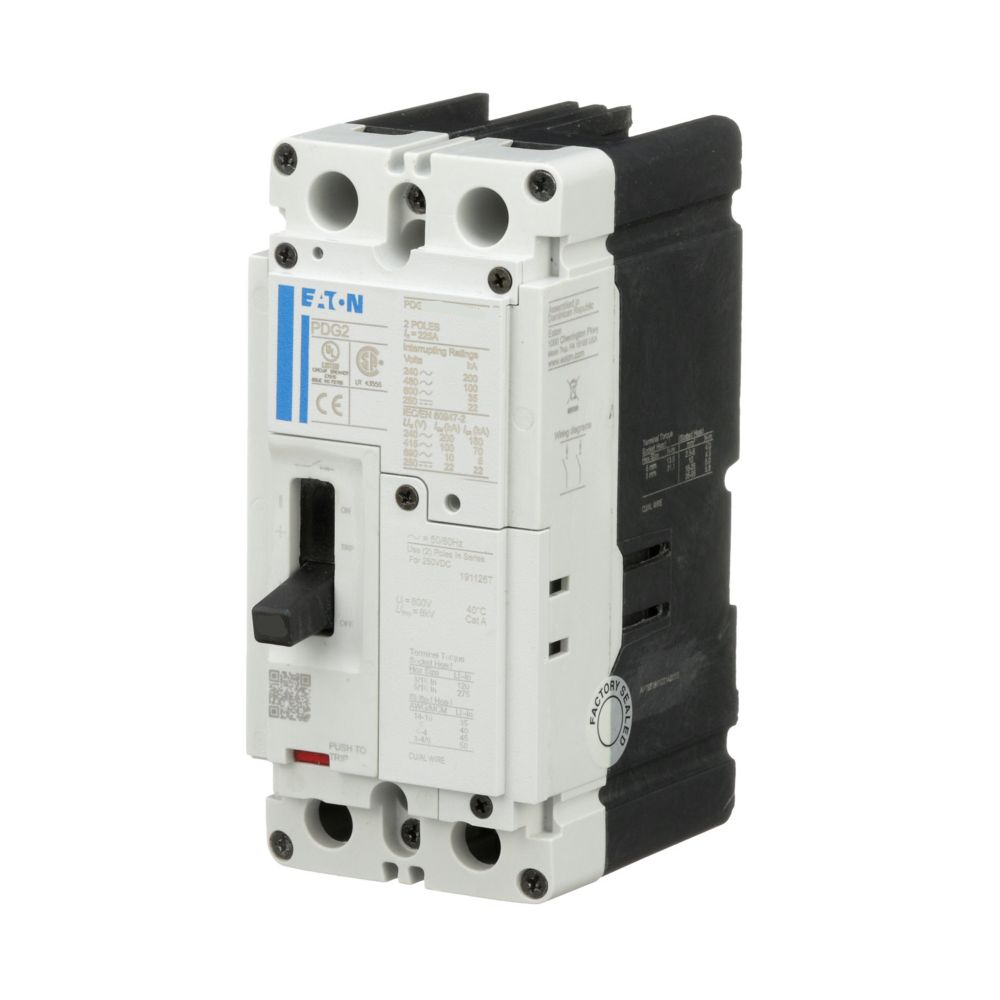

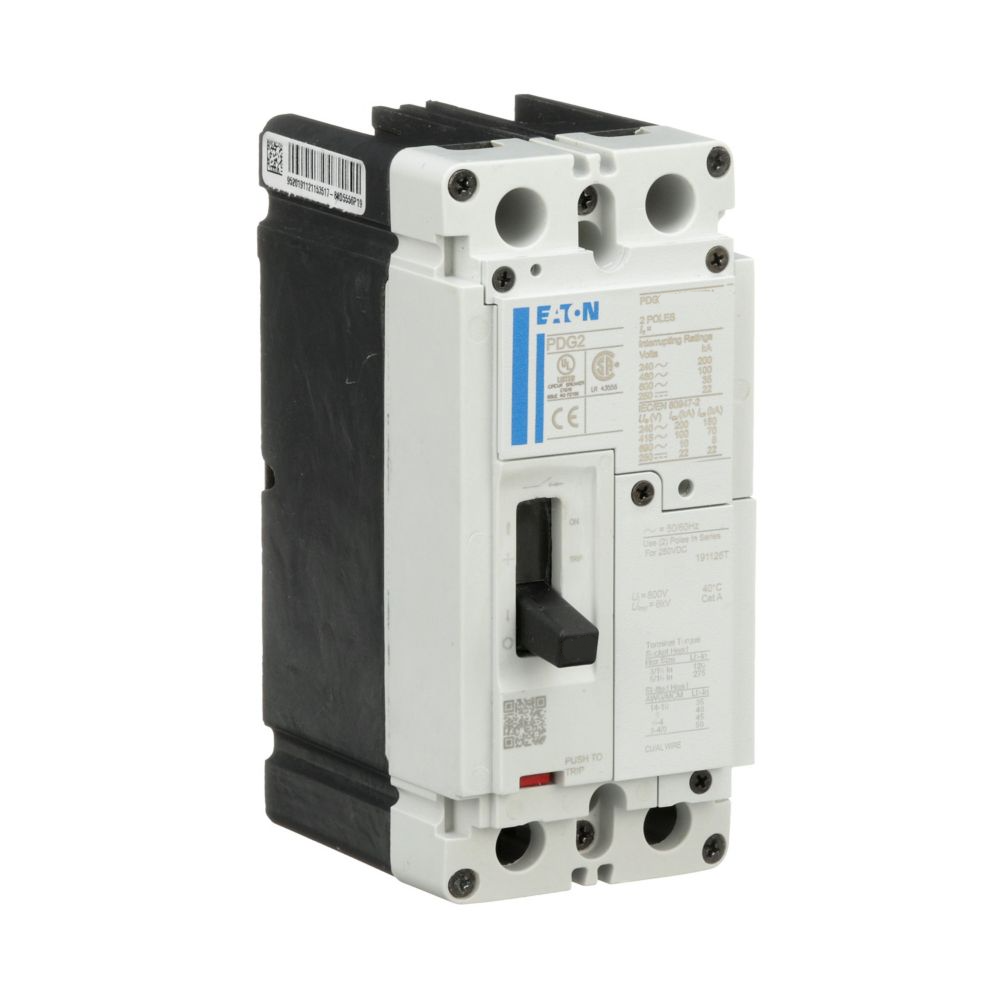

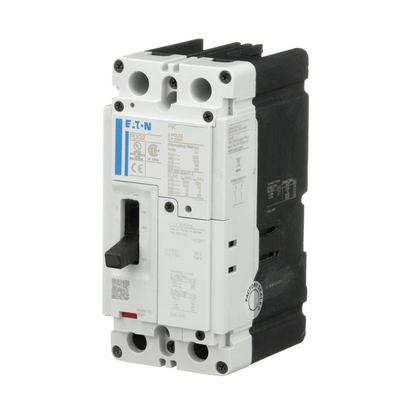

The Eaton PDG22M0025TFFJ is a Molded Case Circuit Breaker from the Power Defense family. It features 2 poles, 600V voltage, and a 25 amp rating with a 65kA@480V AIC rating. This thermal magnetic breaker uses a Feed-Thru connection for efficient power distribution. It is designed for reliable protection in electrical systems.
Key Features:
✔ Part Number: PDG22M0025TFFJ
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 786679294611
✔ GTIN: 00786679294611
✔ Country of Origin: Dominican Republic
✔ Weight: 4.74
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
