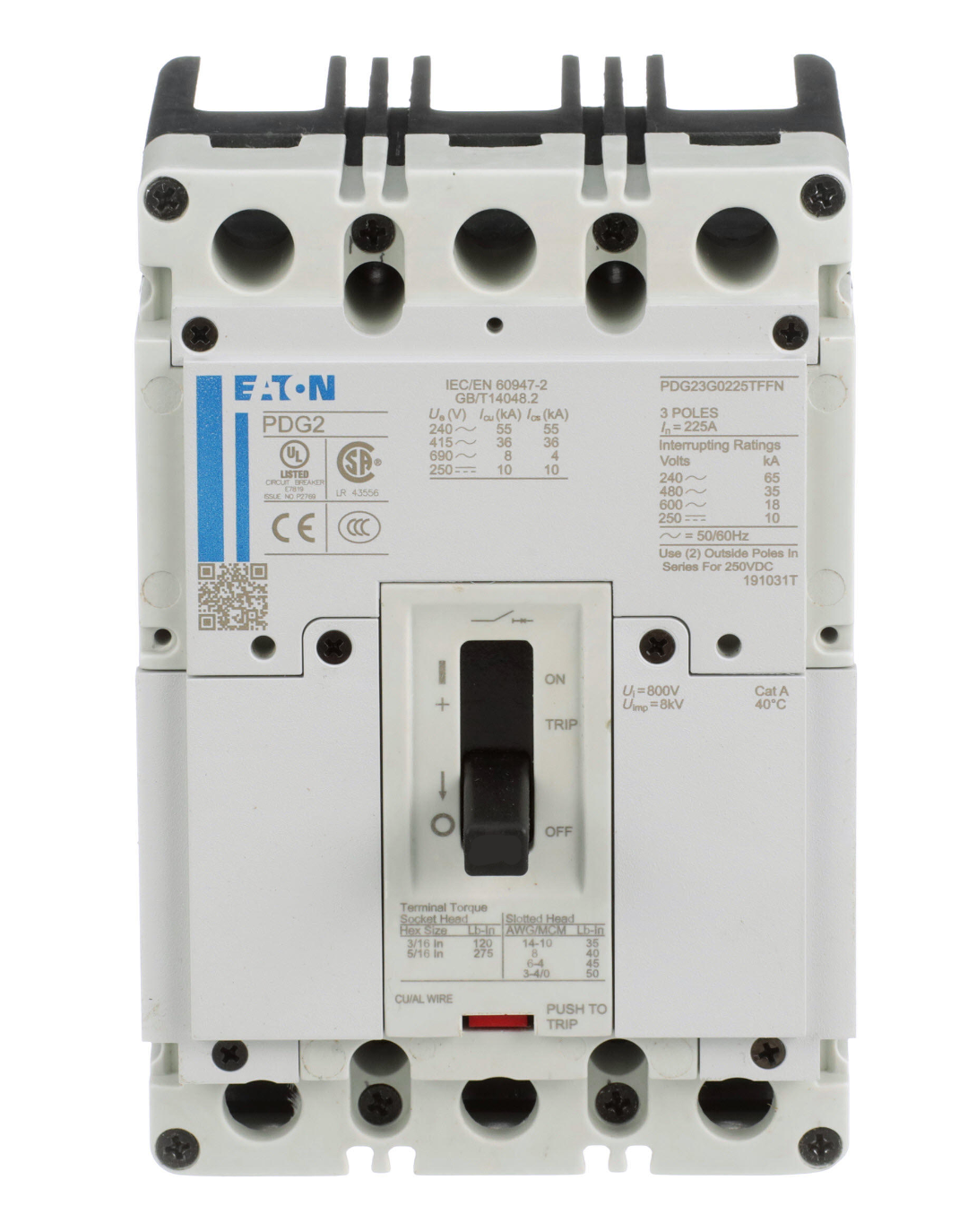

Eaton PDG23G0225E2CN - Eaton - Molded Case Circuit Breakers Circuit Breaker | Power Defense Series PDG 600V 225A

Product Description:
The Eaton PDG23G0225E2CN is a molded case circuit breaker from the Power Defense Series. It features a 3-pole design with a 600V, 225A rating and a 35kA@480V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. It is certified for safety and performance standards.

Key Features:
✔ Part Number: PDG23G0225E2CN
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600V
✔ Amperage: 225A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Temp Rating: -4 to 158°F
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 493
✔ Dimensions: 3.38in (L) x 6in (H) x 4.13in (W)
✔ Weight: 4.9 lbs
✔ Country of Origin: Dominican Republic
