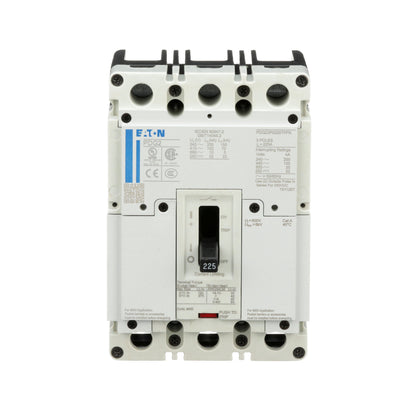

Eaton PDG23M0200TFFL Circuit Breaker | 600V 200A 3P 65kA@480V Bolt-On Power Defense Series

Product Description:
The Eaton PDG23M0200TFFL is a Molded Case Circuit Breaker from the Power Defense Series. It features a 3-pole design with a 600V, 200A rating and a 65kA@480V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: PDG23M0200TFFL
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 786679861943
✔ GTIN: 00786679861943
✔ Country of Origin: Dominican Republic
✔ Dimensions: 152.4 mm x 88.9 mm x 104.6 mm (Height x Length x Width)
✔ Weight: 4.0124084 lb
✔ Panel Type: Power Defense
✔ Certification: IEC 60947-2 UL 489 CCC Marked CSA
