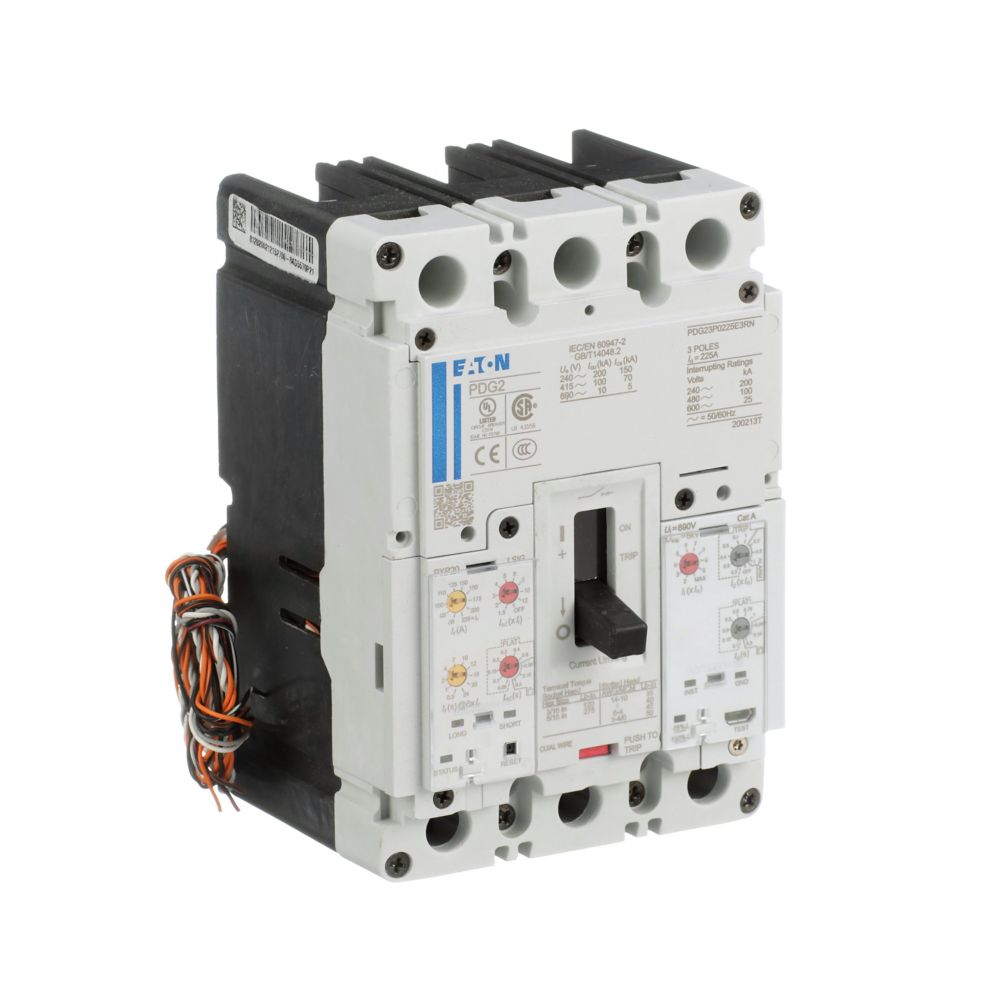

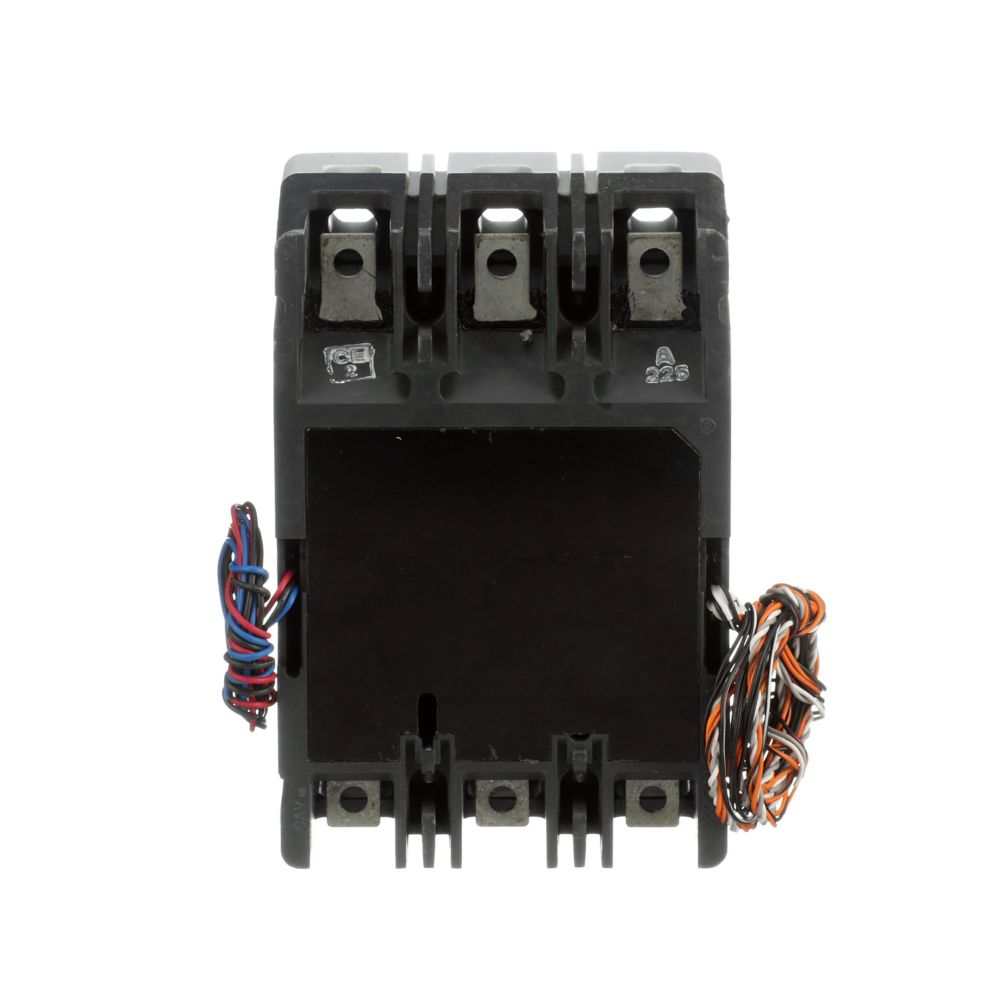

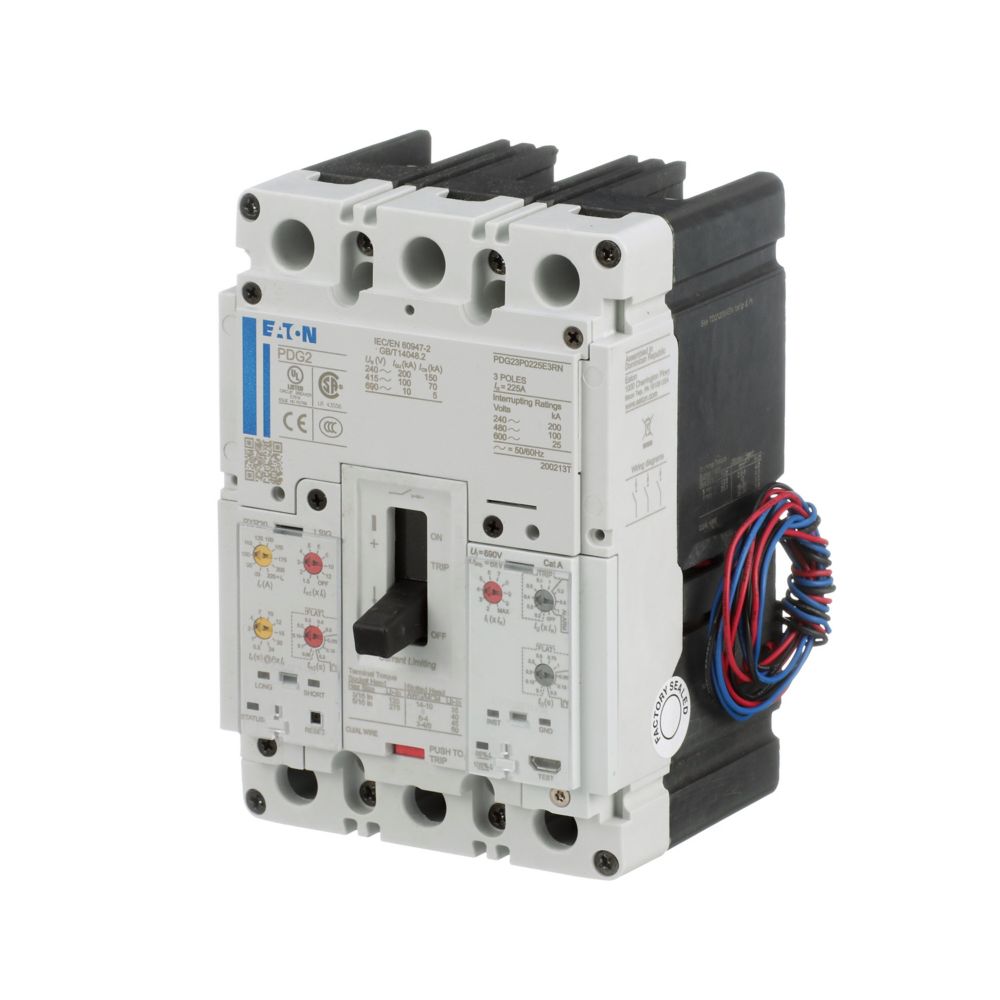

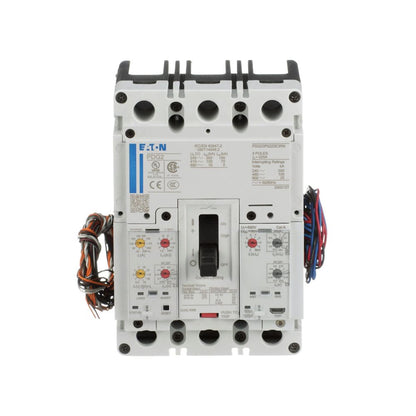

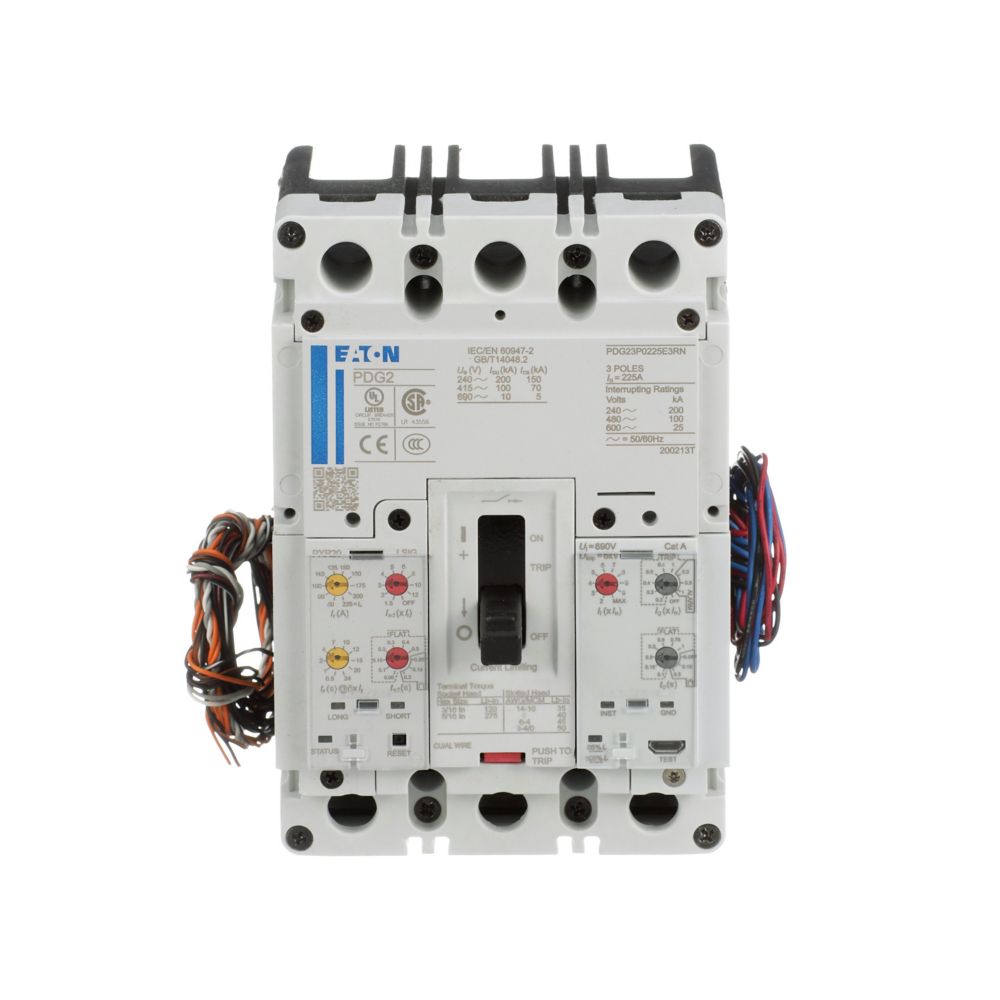

Eaton PDG23M0225E3RL Circuit Breaker | 600V 225A 3P 65kA@480V Bolt-On LSIG

Product Description:
The Eaton PDG23M0225E3RL is a Molded Case Circuit Breaker designed for industrial and commercial applications. It features a 3-pole configuration with a 600V rating and 225A amperage capacity. This breaker includes solid-state protection and LSIG functions for comprehensive electrical safety. Its bolt-on connection ensures secure installation in demanding environments.

Key Features:
✔ Part Number: PDG23M0225E3RL
✔ Manufacturer: Eaton - Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Protection: Solid State
✔ UPC: 786679807569
✔ Dimensions: 152.4 mm x 88.9 mm x 104.6 mm (Height x Length x Width)
✔ Weight: 4.0124084
✔ Certification: IEC 60947-2 CSA UL 489 CCC Marked
