Product Description:

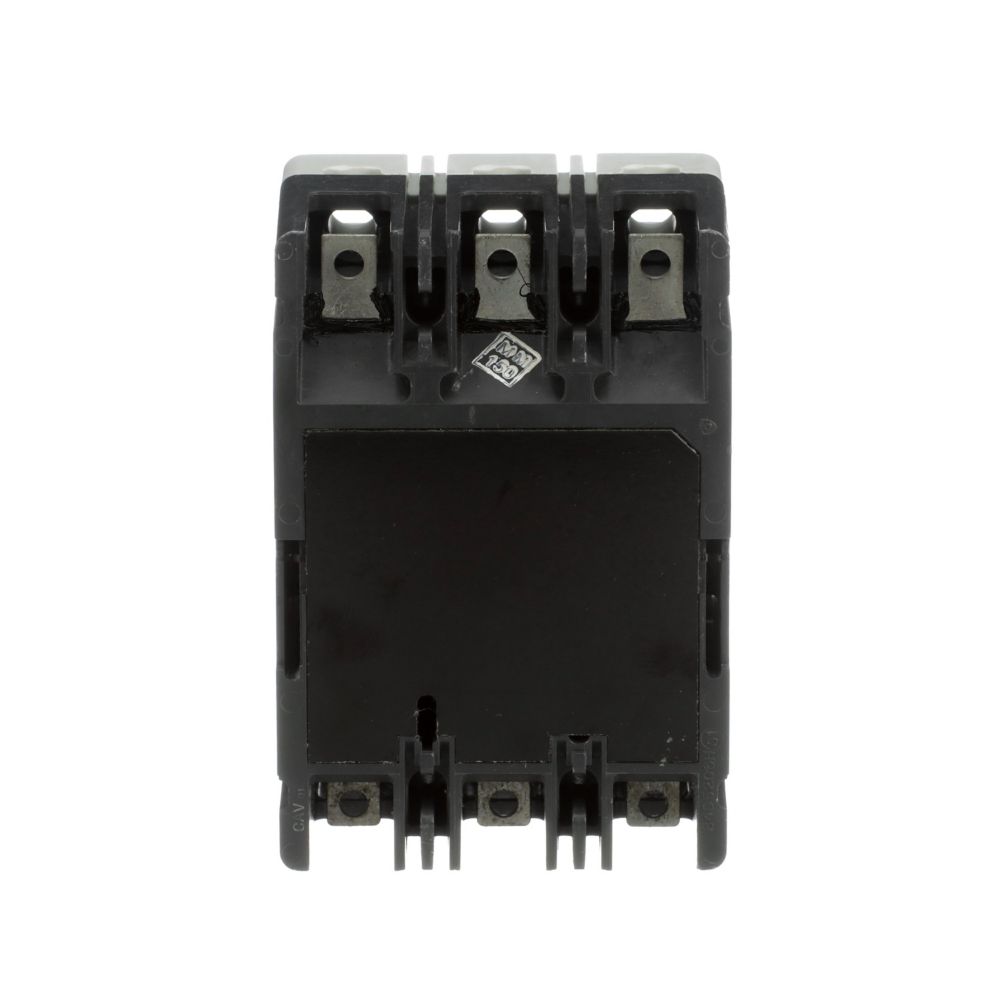

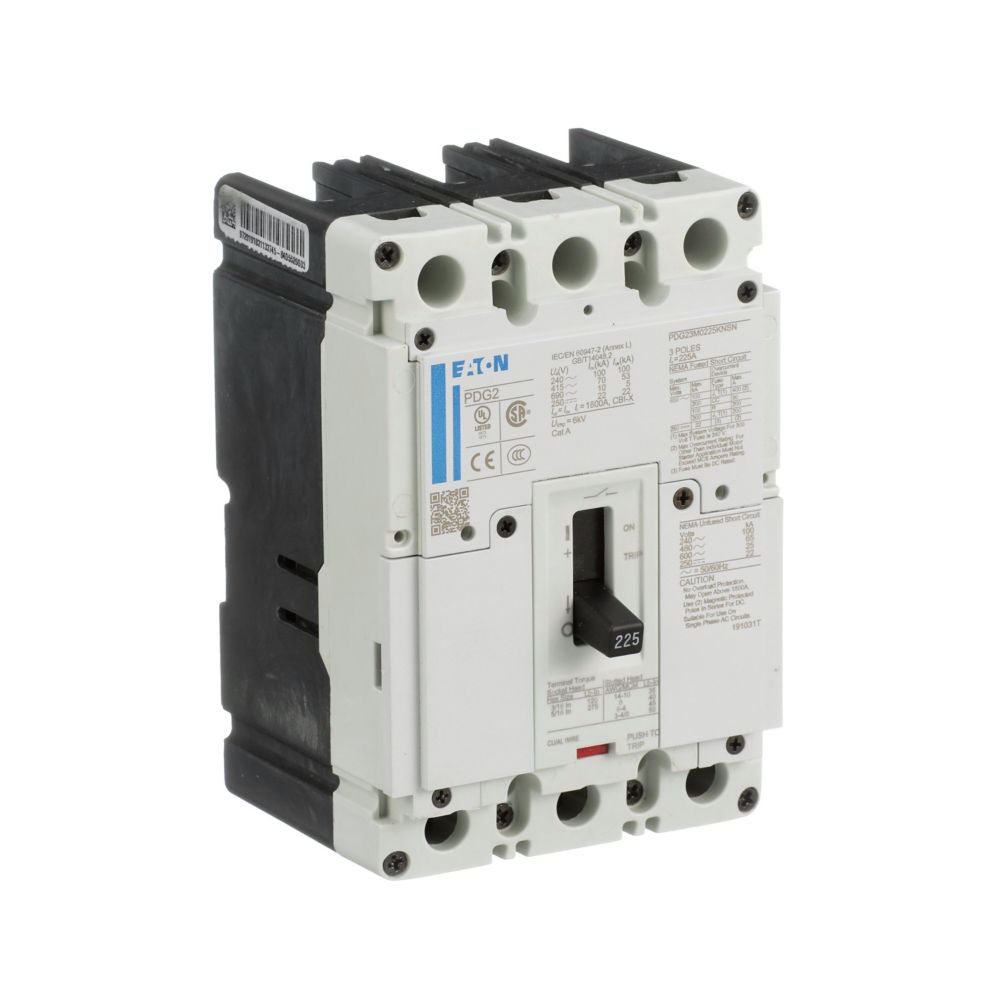

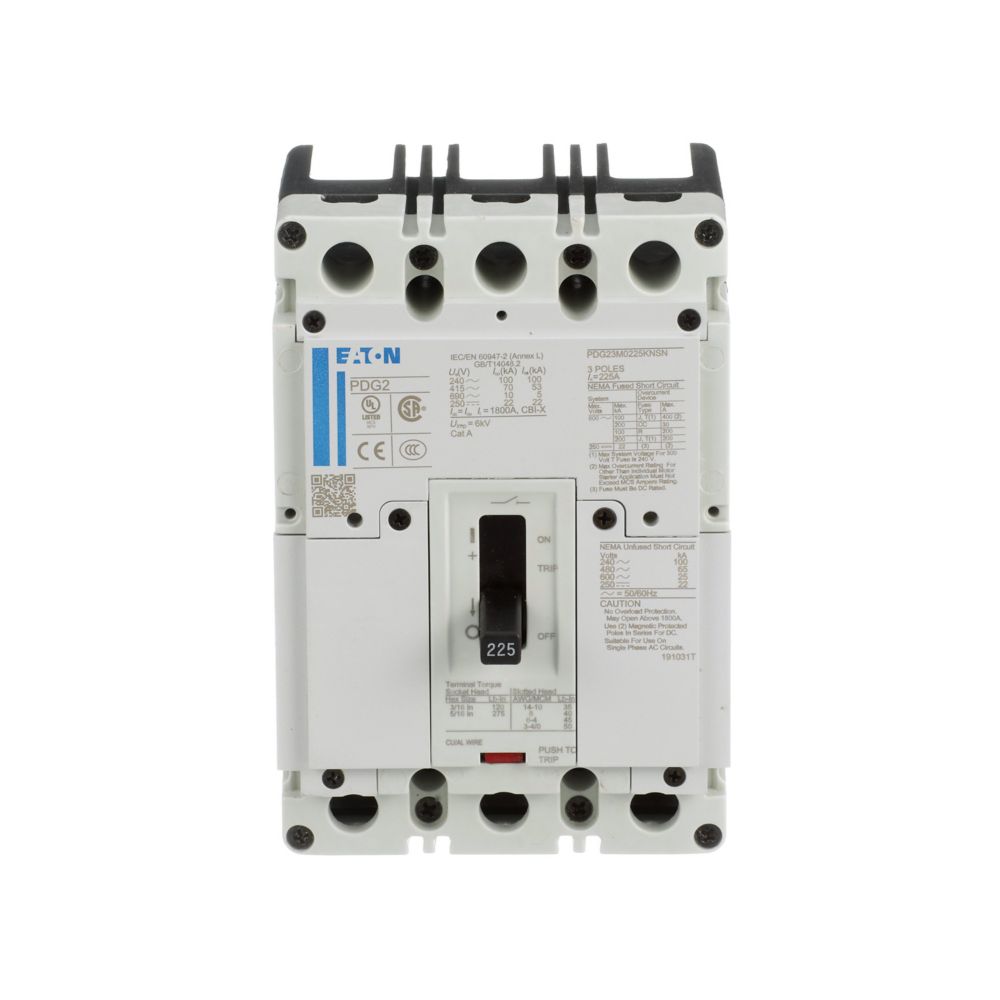

The Eaton PDG23M0225KNSL is a Molded Case Circuit Breaker from the Power Defense Series. It features a 3-pole design with a 600V voltage rating and 225A amperage. This breaker offers Thermal Magnetic protection and has an AIC rating of 65kA@480V. It uses a Bolt-On connection for secure installation.
Key Features:
✔ Part Number: PDG23M0225KNSL
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 225
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 786679881576
✔ Country of Origin: Dominican Republic
✔ Dimensions: 152.4 mm x 88.9 mm x 104.6 mm (Height x Length x Width)
✔ Weight: 4.0124084
✔ Certification: CCC Marked CSA UL 489 IEC 60947-2
