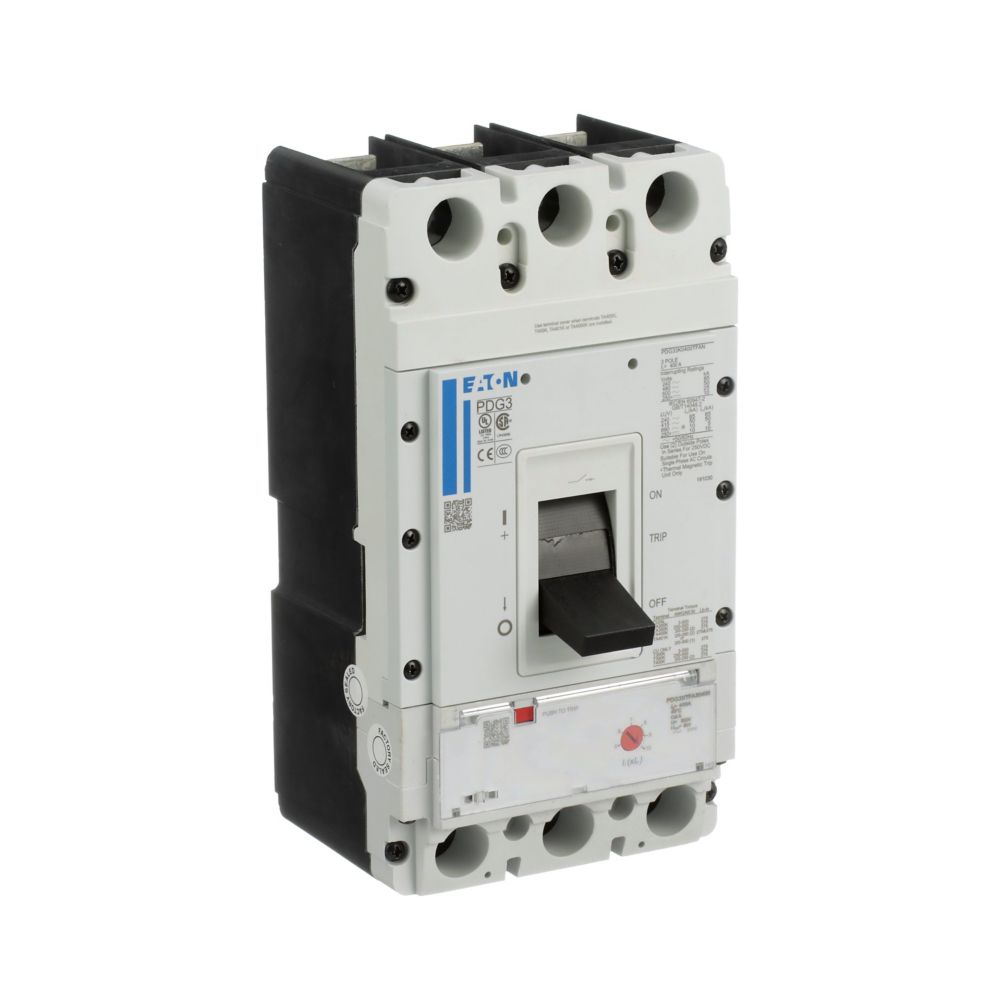

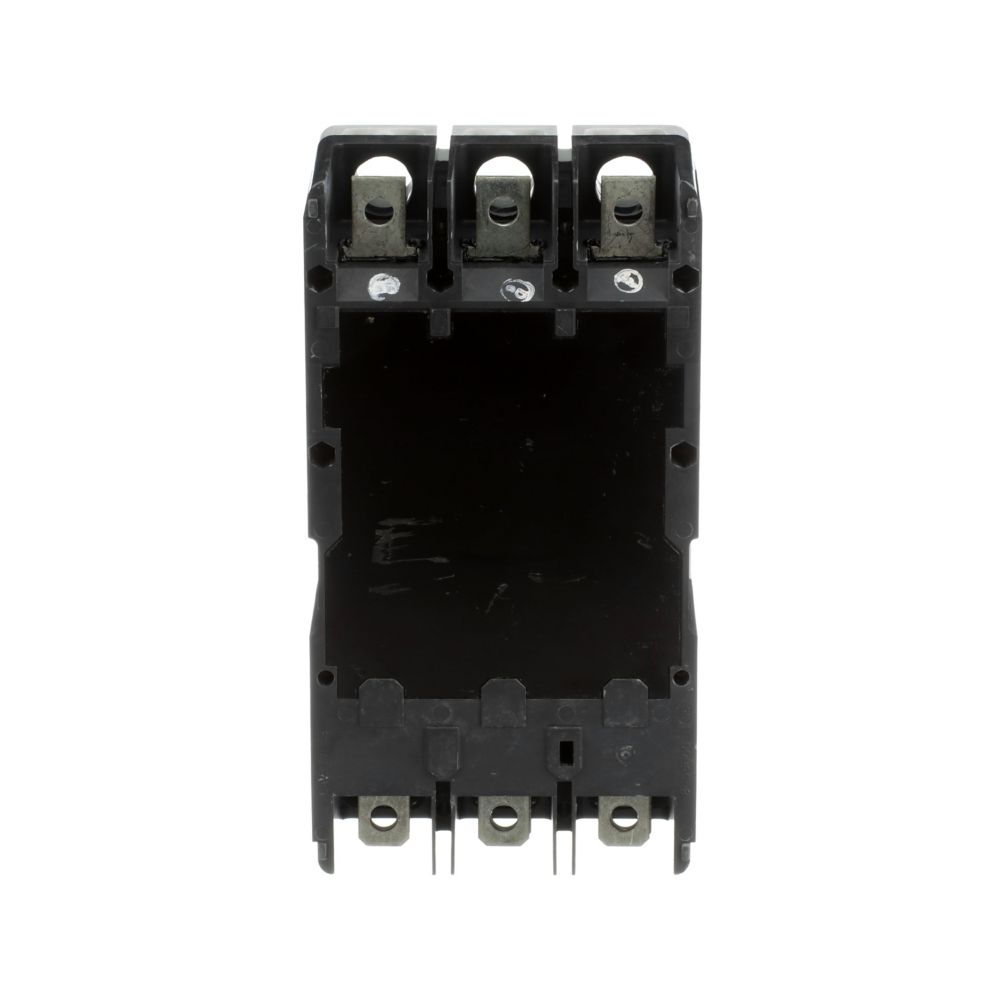

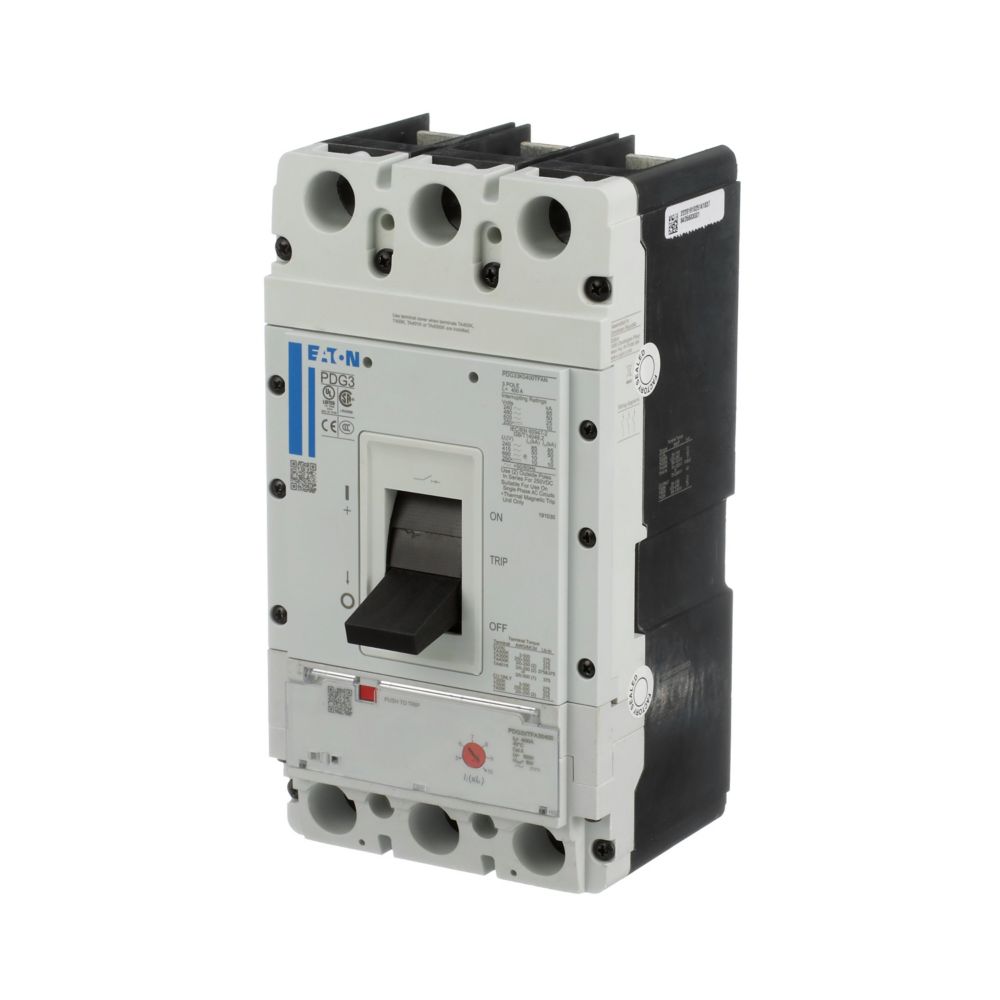

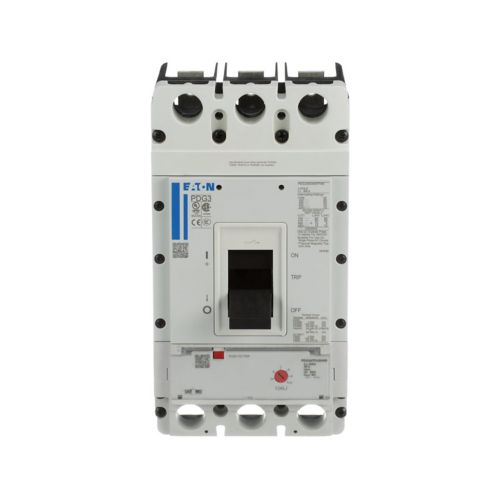

Cutler Hammer PDG33F0400TFAJ Circuit Breaker | 600V 400A 3P 25kA@480V Feed-Thru Power Defense

Product Description:
The Cutler Hammer PDG33F0400TFAJ is a Molded Case Circuit Breaker from the Power Defense family. It features 3 poles, 600V voltage, and a 400A amperage rating with a 25kA@480V AIC rating. This breaker uses Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: PDG33F0400TFAJ
✔ Manufacturer: Cutler Hammer||Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 25kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ UPC: 786679573457
✔ Country of Origin: Dominican Republic
✔ Weight: 13.36
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
