Product Description:

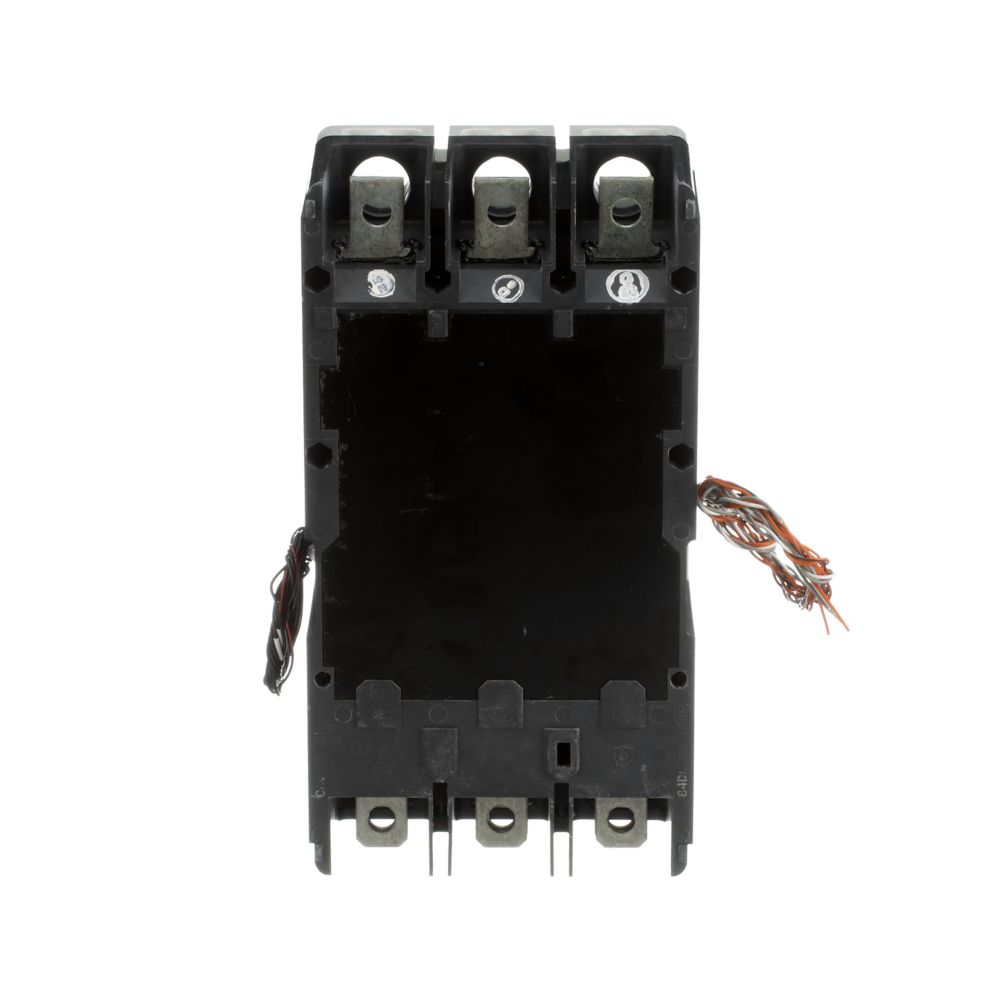

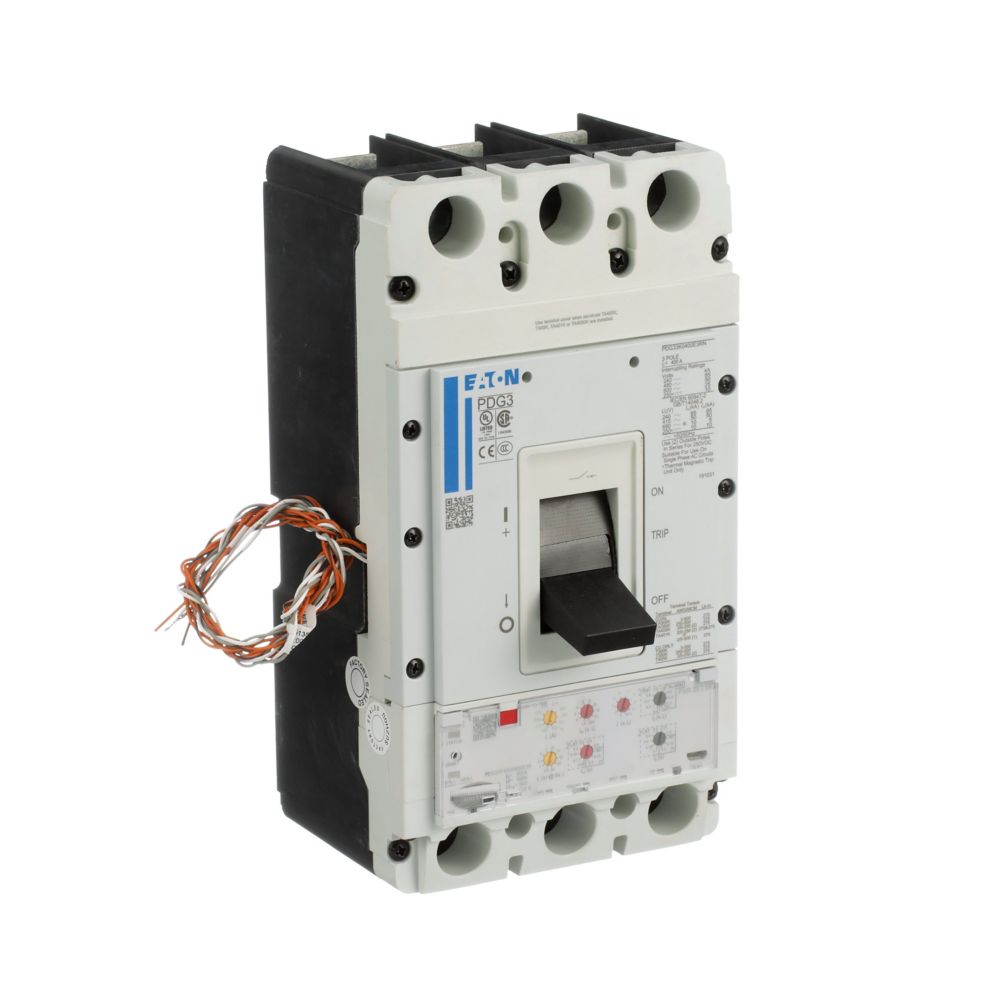

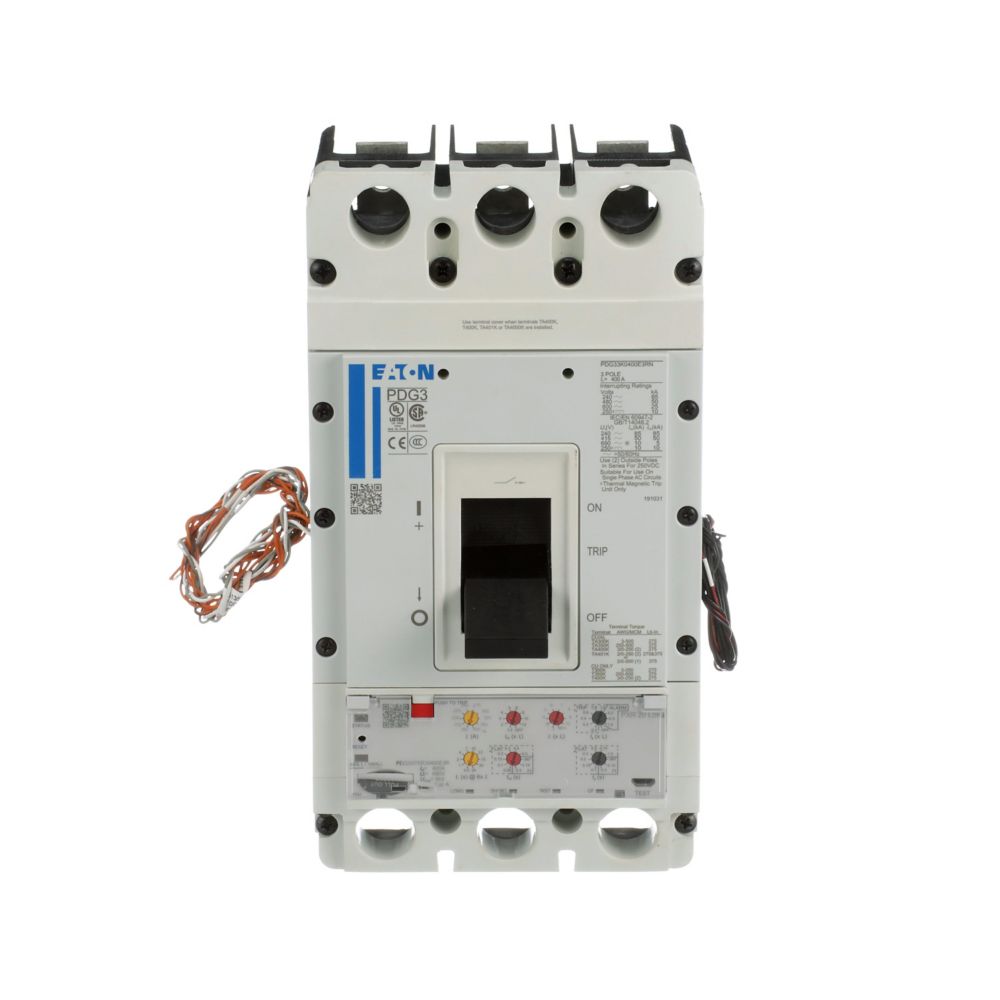

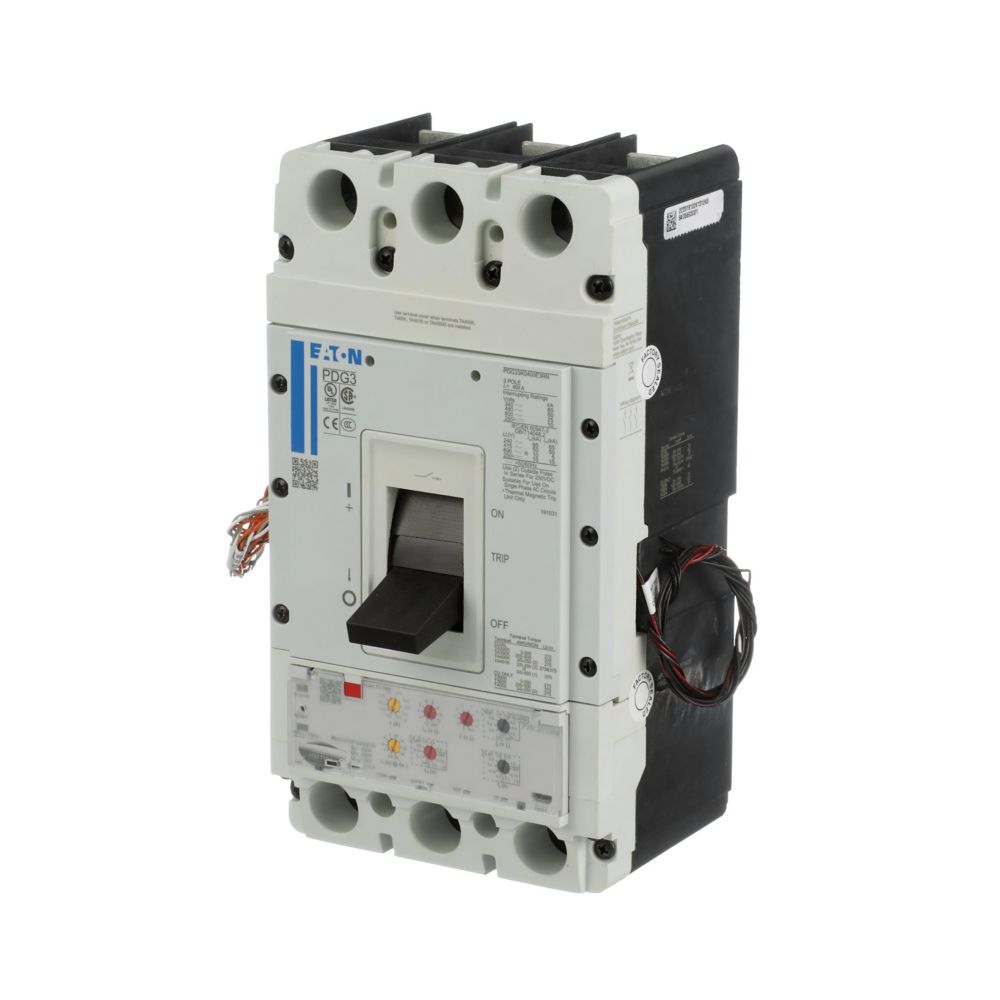

The Eaton PDG33G0400E3MJ is a Molded Case Circuit Breaker from the Power Defense Series. It features a 3-pole design with a 600V, 400A rating and an AIC rating of 35kA@480V. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.
Key Features:
✔ Part Number: PDG33G0400E3MJ
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Power Defense Series
✔ Type: PDG
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Terminal Connection: Standard Line and Load Side Lug
✔ Protection: Thermal Magnetic
✔ Country of Origin: Dominican Republic
✔ Weight: 14.04
✔ Certification: CCC, CSA, IEC 60947-2, RoHS, UL 489
