Square D
Square D PGA36040CU31A Circuit Breaker | Powerpact PGA 600V 400A
Square D PGA36040CU31A Circuit Breaker | Powerpact PGA 600V 400A
Price:
Sale
Sold out
Regular price
$8,235.01 USD
Regular price
$22,479.00 USD
Sale price
$8,235.01 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

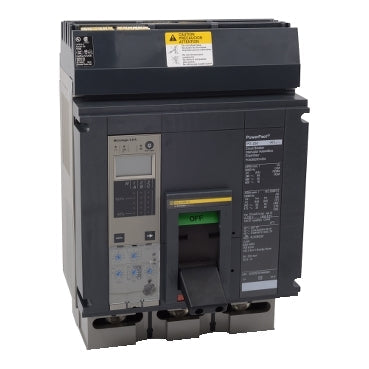

The Square D PGA36040CU31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is UL, CSA, NEMA, IEC, and NOM certified for safety and compliance.
Key Features:
✔ Part Number: PGA36040CU31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Wire Size: 3x AWG 3/0 to 500KCmil, Aluminum/Copper
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H
✔ Weight: 34 lbs
✔ Certification: CE, UL, CSA, NEMA, IEC, NOM
The Square D PGA36040CU31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is UL, CSA, NEMA, IEC, and NOM certified for safety and compliance.
Key Features:
✔ Part Number: PGA36040CU31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Wire Size: 3x AWG 3/0 to 500KCmil, Aluminum/Copper
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H
✔ Weight: 34 lbs
✔ Certification: CE, UL, CSA, NEMA, IEC, NOM
