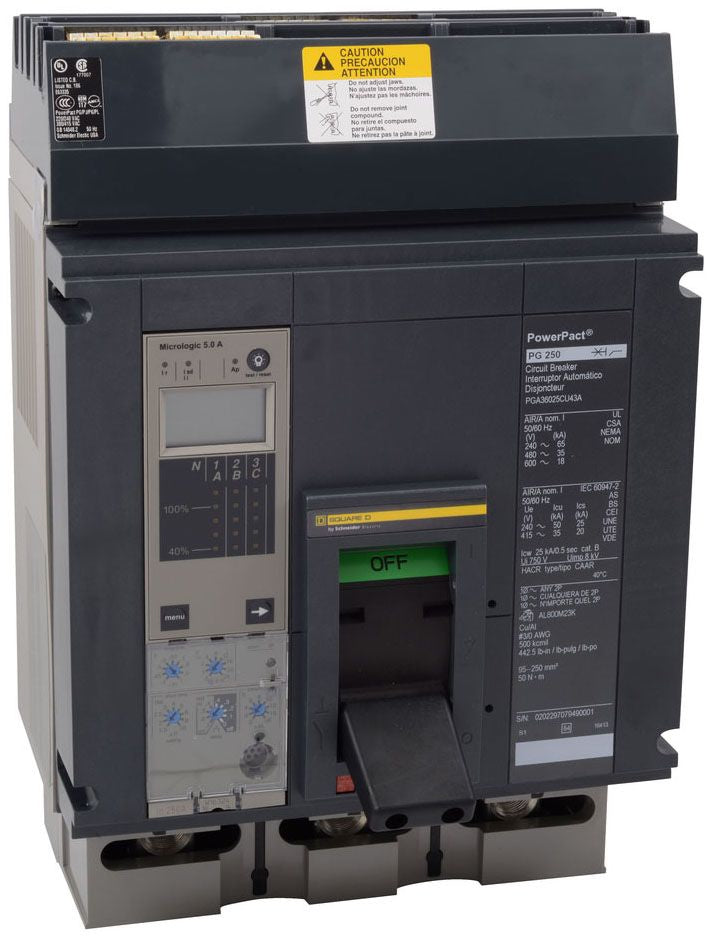

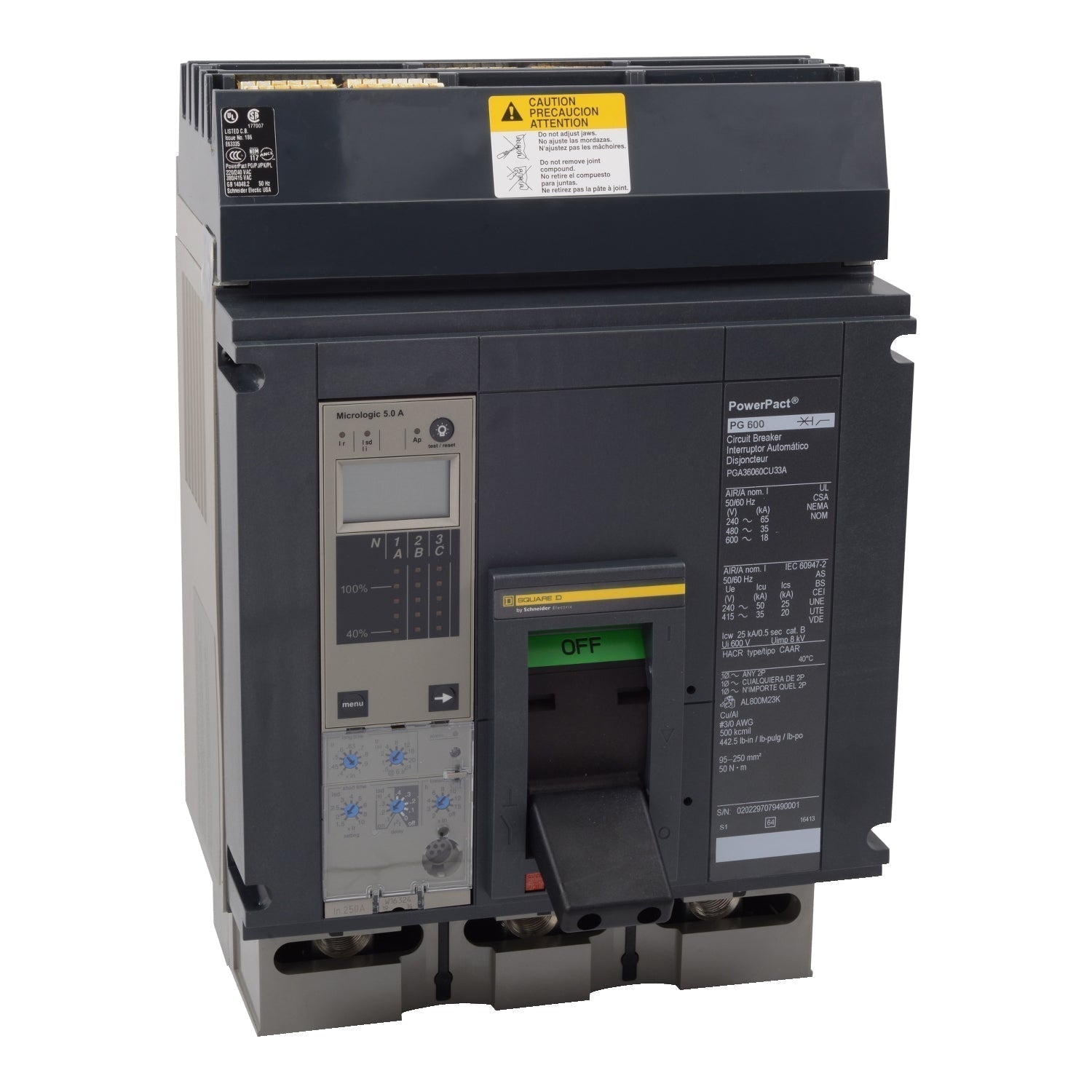

Square D PGA36060CU33A Circuit Breaker | Powerpact PGA 600V 600A
Square D PGA36060CU33A Circuit Breaker | Powerpact PGA 600V 600A
Price:
Sale
Sold out
Regular price
$8,284.84 USD
Regular price
$22,794.00 USD
Sale price
$8,284.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PGA36060CU33A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSI functions. Its compact frame size (P Frame) ensures efficient installation.
Key Features:
✔ Part Number: PGA36060CU33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: P Frame
✔ UPC: 060648628551
✔ GTIN: 03606486285510

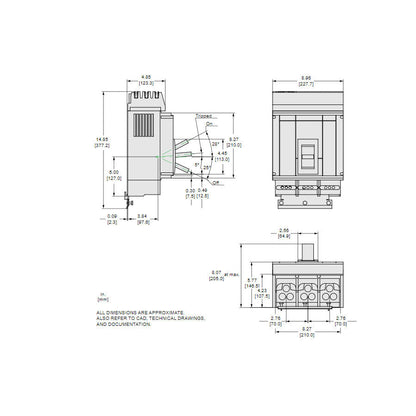

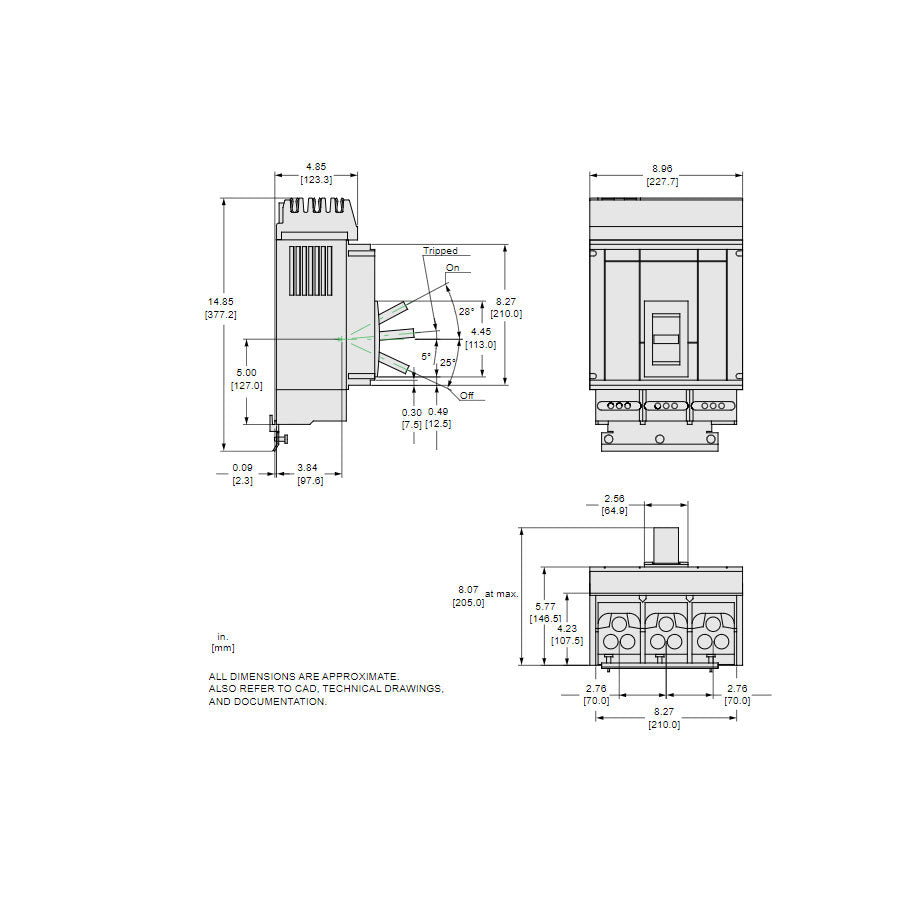

✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47mm x 210.06mm x 326.64mm)
✔ Weight: 34 lbs
