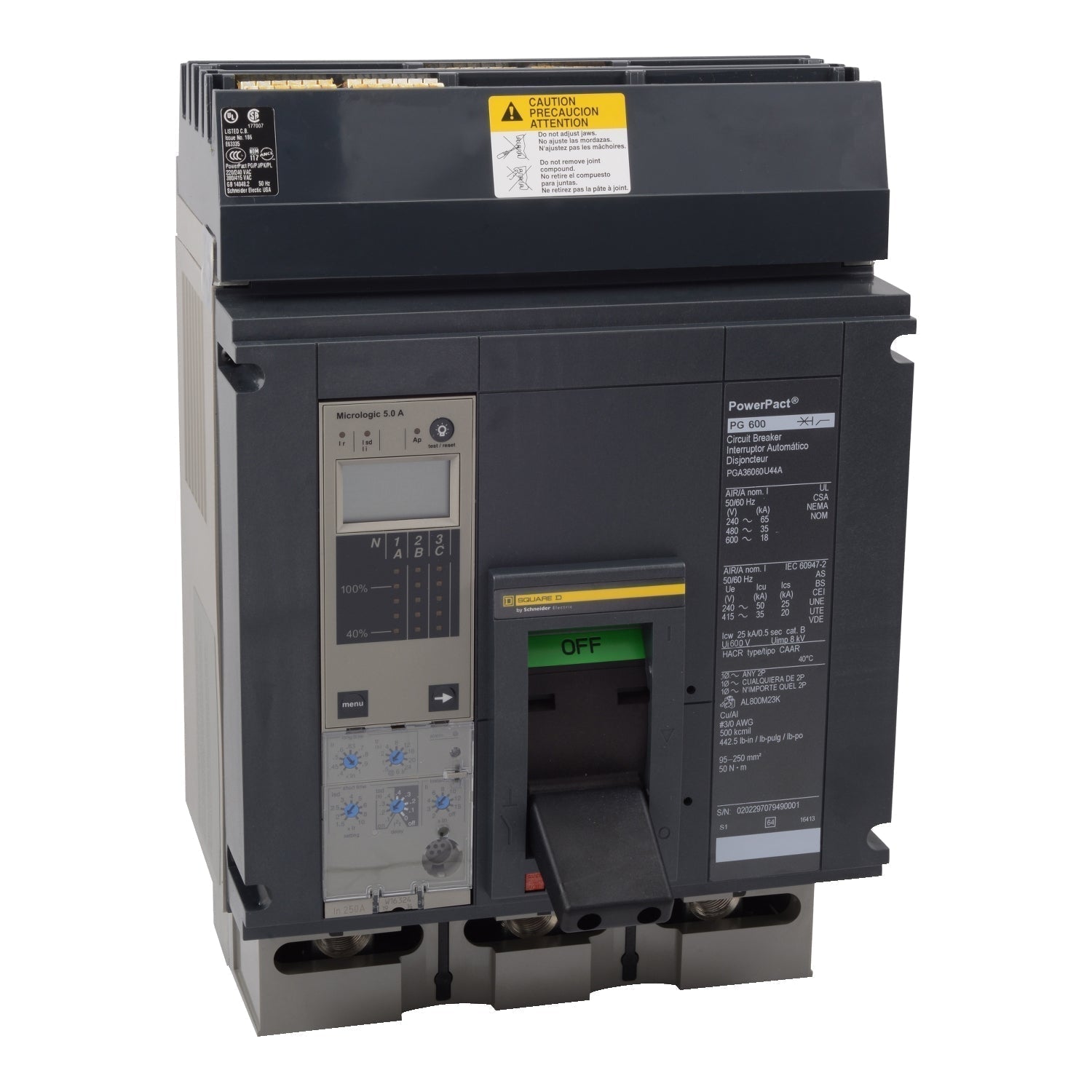

Square D PGA36060U44A | Powerpact PGA 600V 600A

Product Description:
The Square D PGA36060U44A is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 600A amperage rating with a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with LSIG functions. Its frame size is P Frame, designed for reliable performance.

Key Features:
✔ Part Number: PGA36060U44A
✔ Manufacturer: Square D
✔ Category: Molded Case
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ Dimensions: Depth 8.05 in (204.47 mm), Width 8.27 in (210.06 mm), Height 12.86 in (326.64 mm)
✔ Weight: 34 lbs
