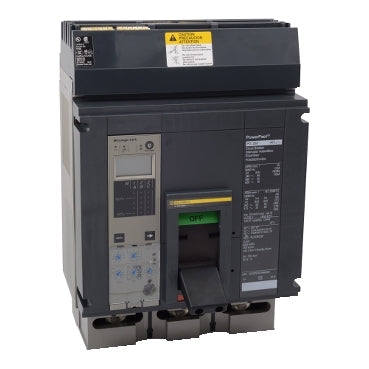

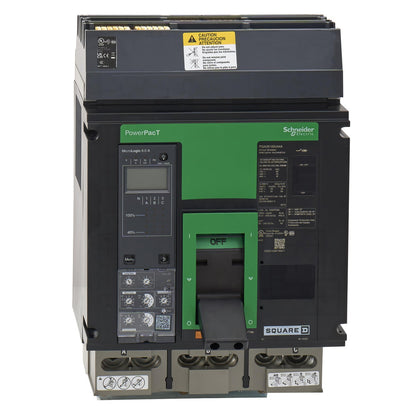

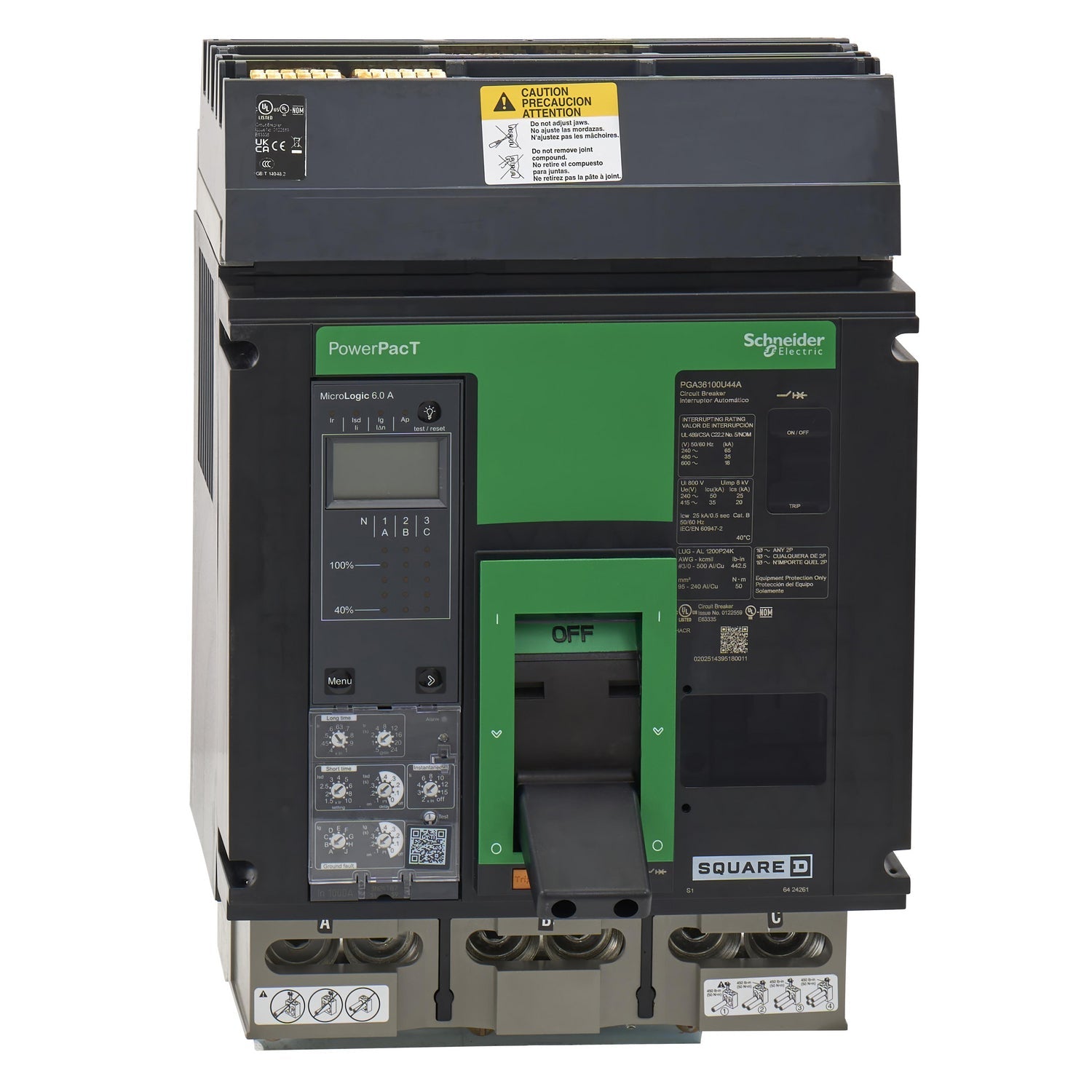

Square D PGA36100U44A Circuit Breaker | Powerpact PGA 600V 1000A

Product Description:
The Square D PGA36100U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for industrial and commercial applications.

Key Features:
✔ Part Number: PGA36100U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous, Ground Fault
✔ Frame Size: P Frame
✔ Wire Size: 4x AWG 3/0 to 500KCmil, Aluminum/Copper
✔ Certification: CE, UL, CSA, NEMA, IEC, NOM
✔ UPC: 785901694632
✔ GTIN: 00785901694632
✔ Country of Origin: United States
✔ Dimensions: 8.05" D x 8.27" W x 16.16" H
✔ Weight: 32 lbs
