Images are for reference only
Square D

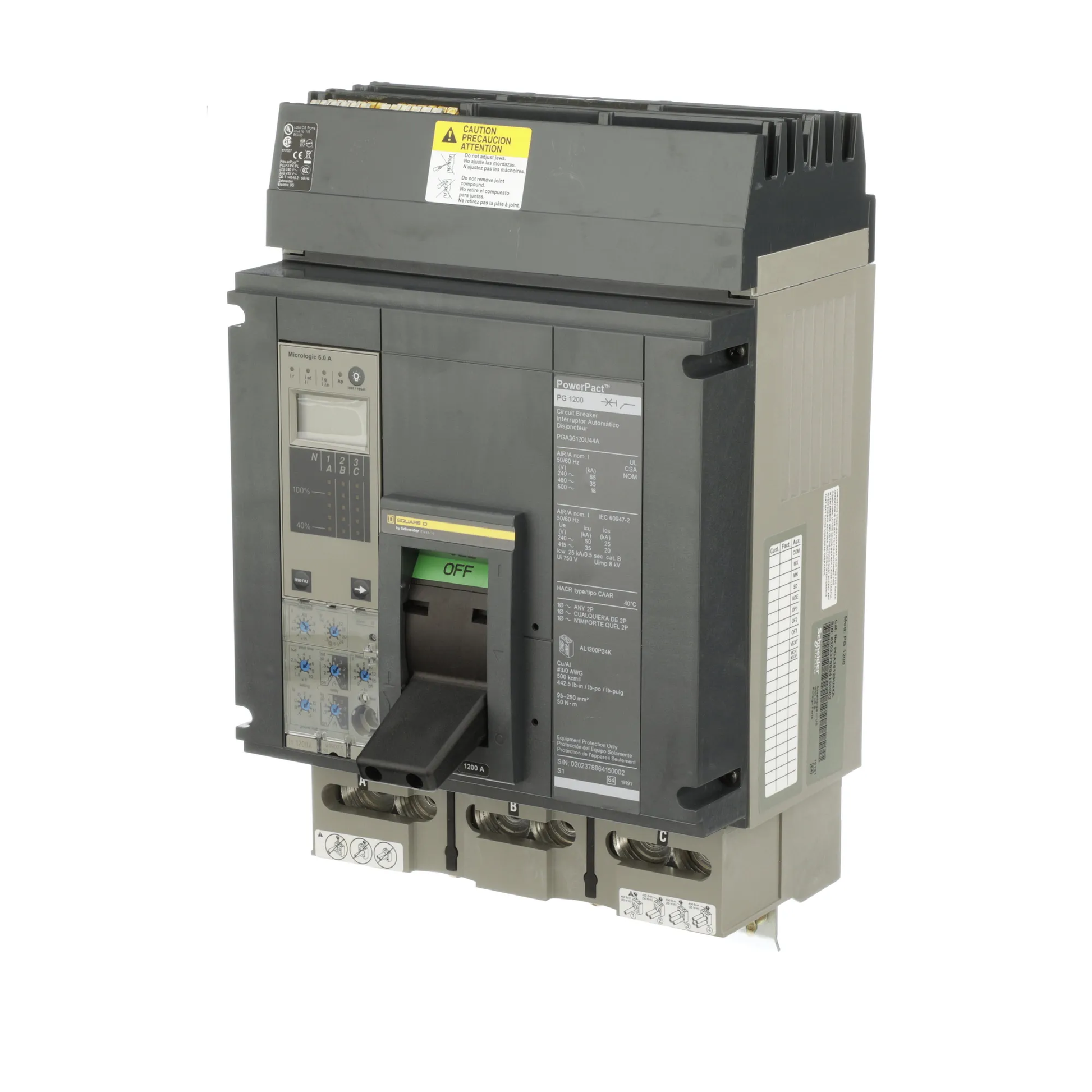

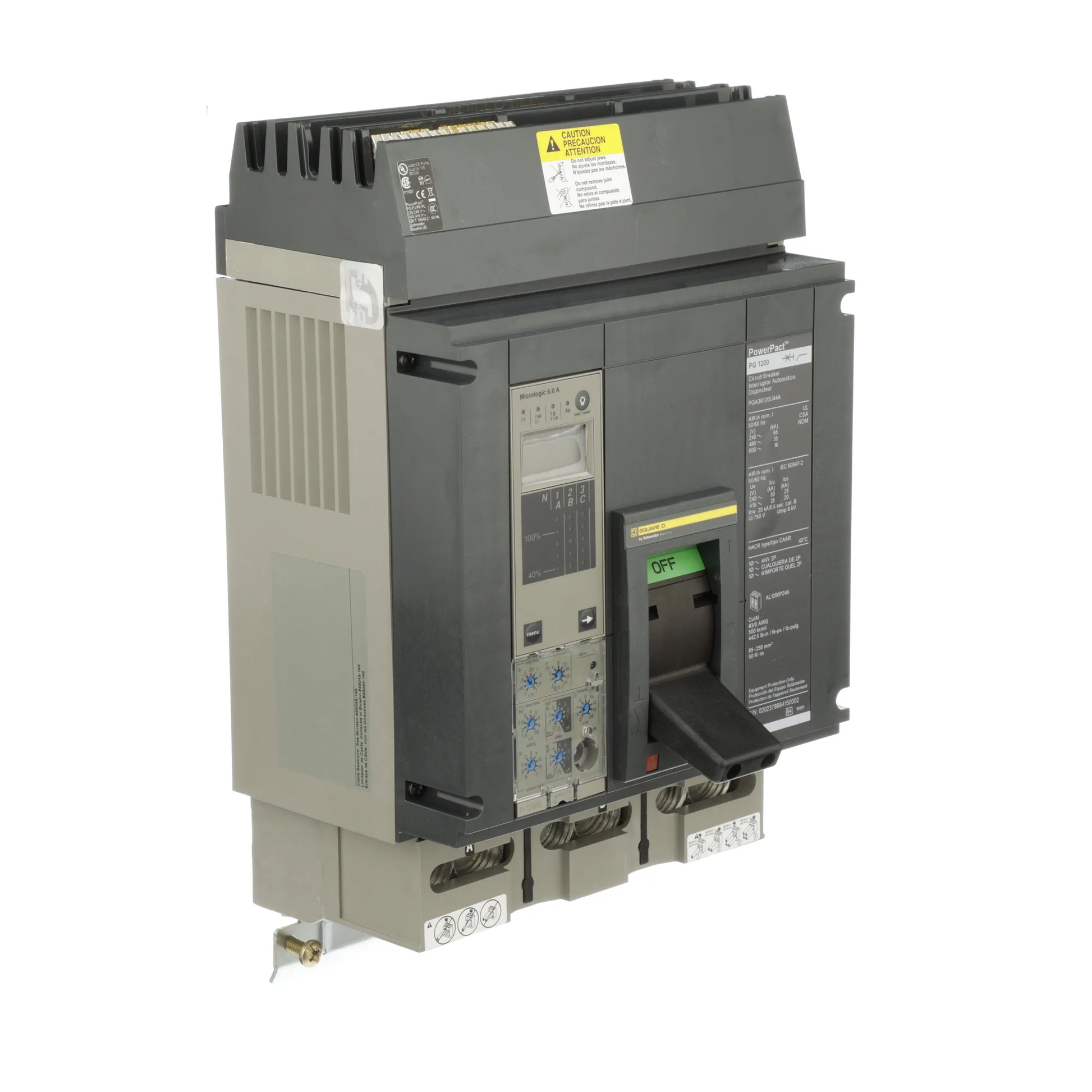

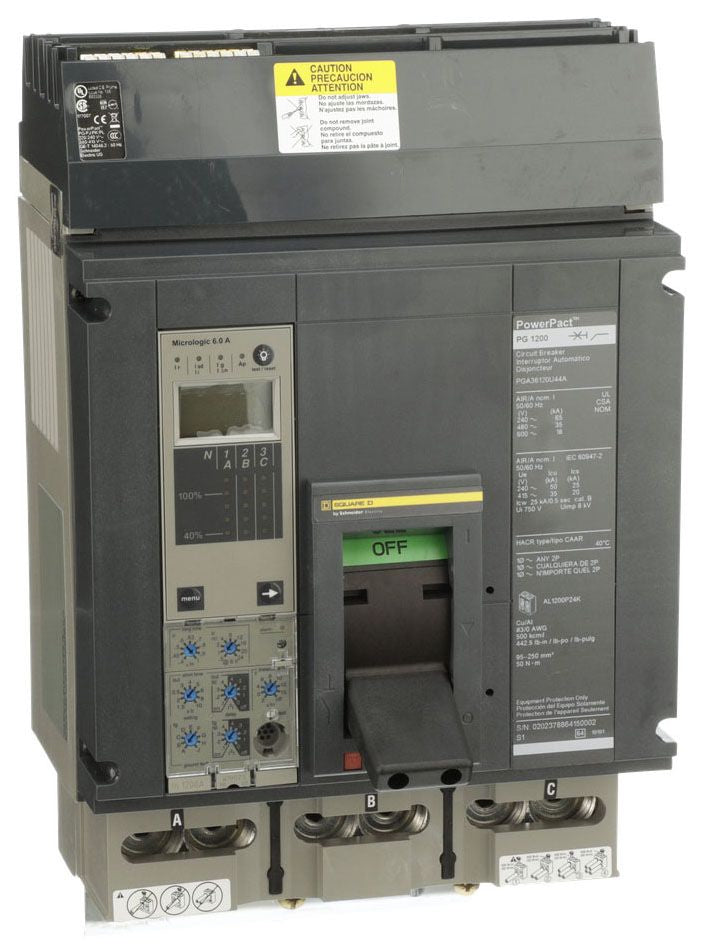

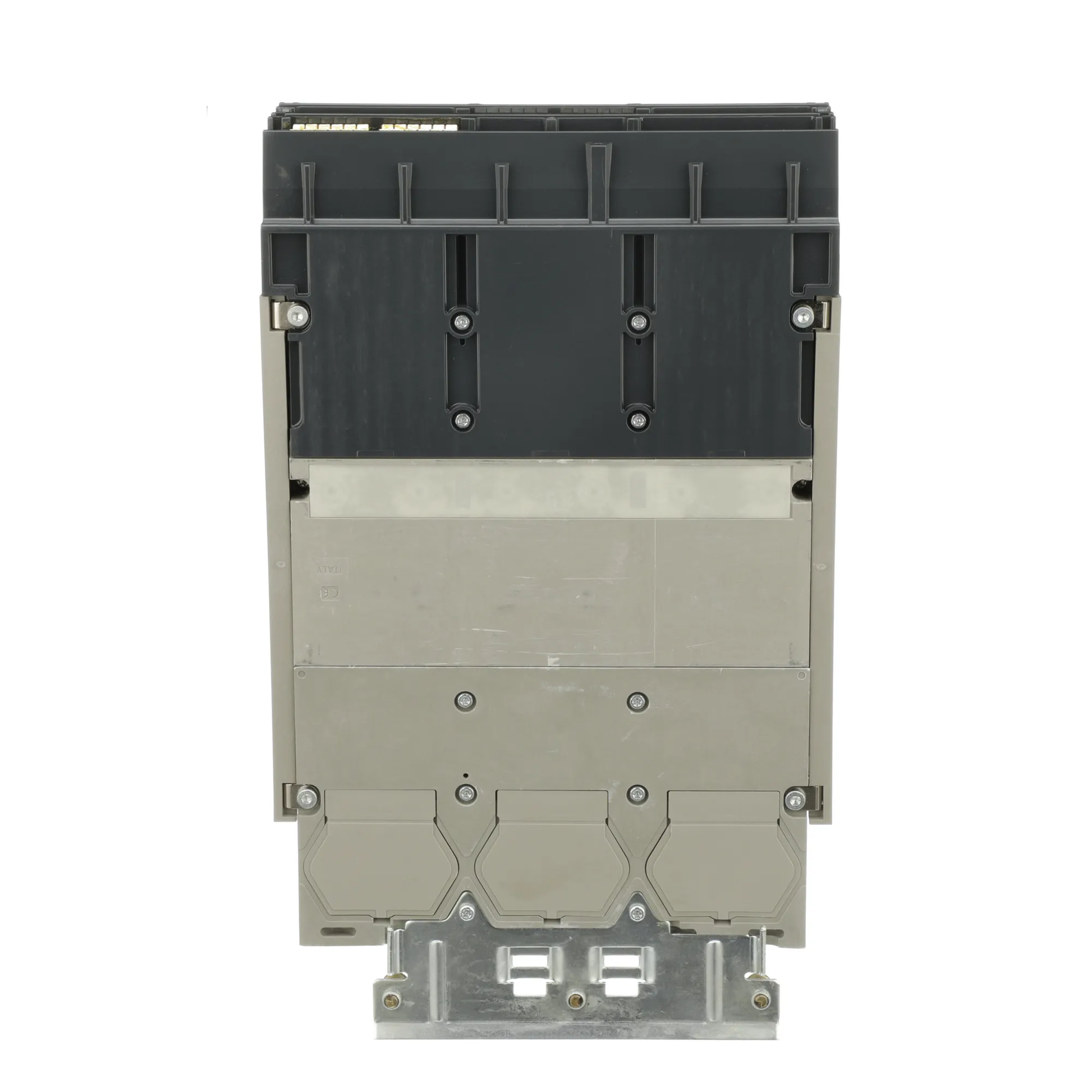

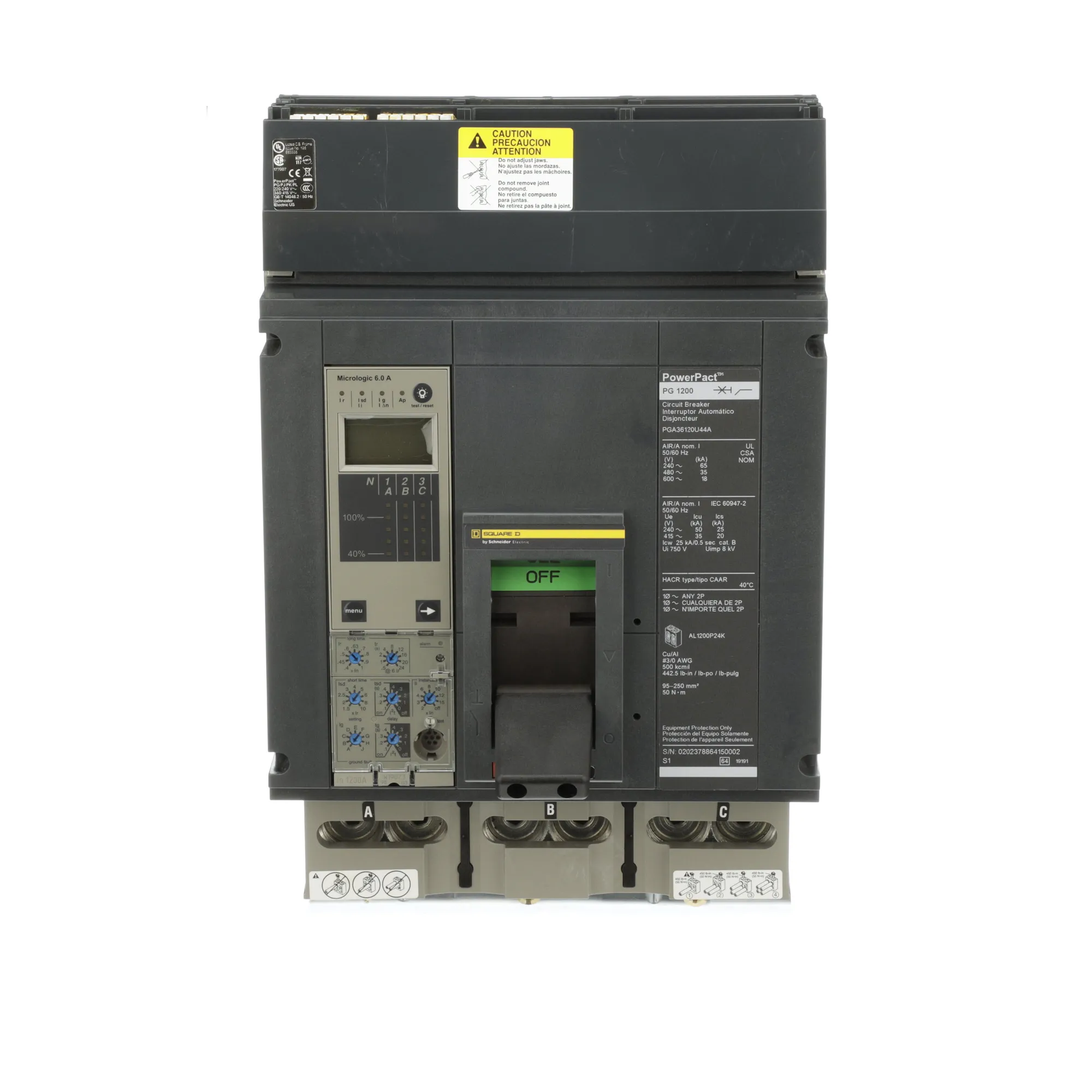

Square D PGA36120U44A | Powerpact PGA 600V 1200A
Square D PGA36120U44A | Powerpact PGA 600V 1200A
Price:
Sale
Sold out
Regular price
$14,240.45 USD
Regular price
$25,008.00 USD
Sale price
$14,240.45 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PGA36120U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design, 600V voltage rating, and 1200A amperage capacity with a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state LSIG protection.
Key Features:
✔ Part Number: PGA36120U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGA
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ UPC: 785901502449
✔ GTIN: 00785901502449
✔ Country of Origin: Italy
✔ Dimensions: 8.05" D x 8.27" W x 16.16" H (204.47mm x
