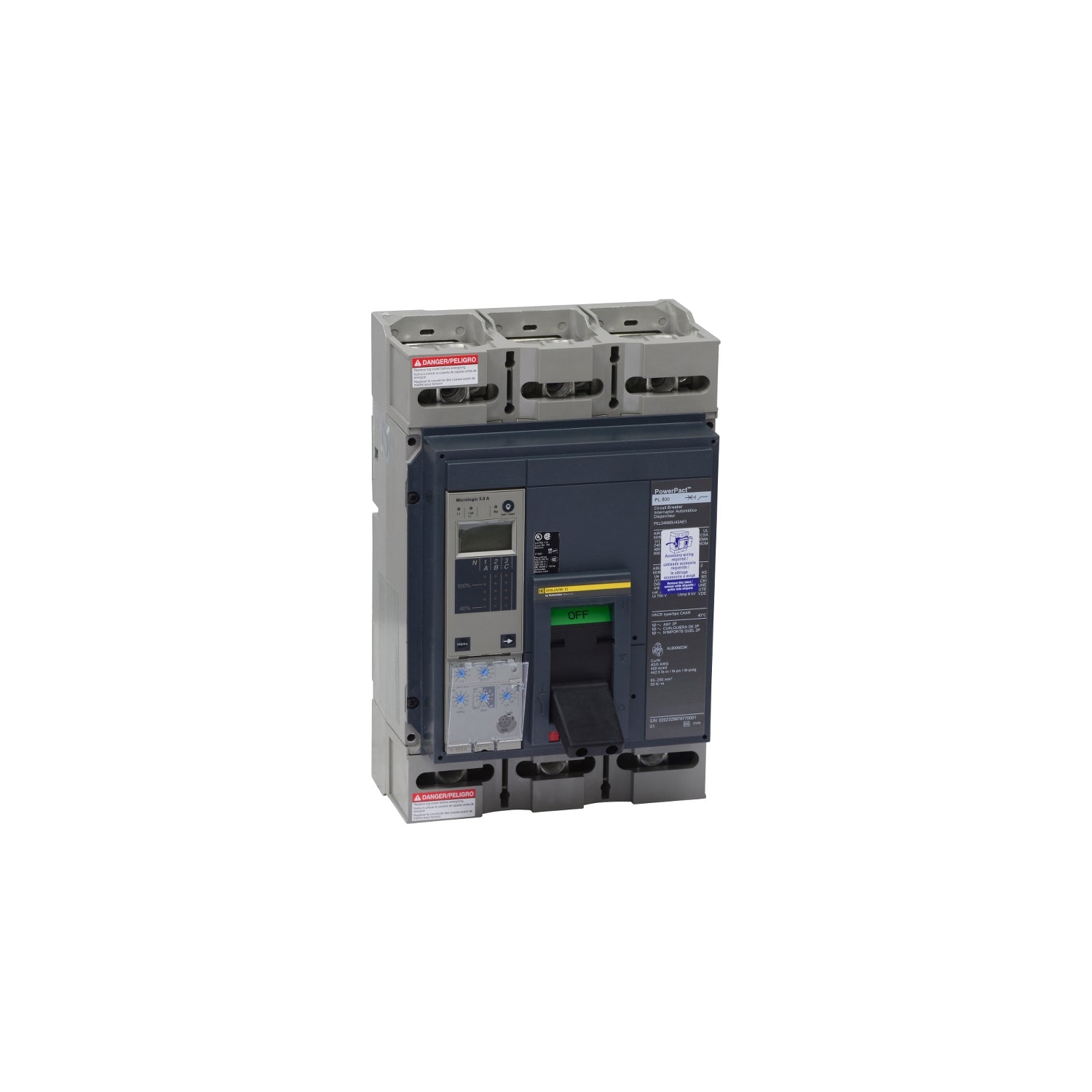

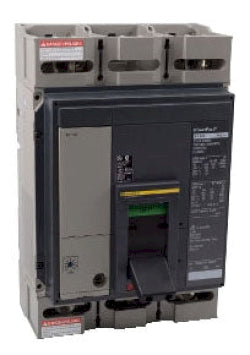

Square D PGL36060CU44A Circuit Breaker | Powerpact PGL 600V 600A
Square D PGL36060CU44A Circuit Breaker | Powerpact PGL 600V 600A
Price:
Sale
Sold out
Regular price
$10,098.84 USD
Regular price
$25,256.00 USD
Sale price
$10,098.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PGL36060CU44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSIG functions. Suitable for aluminum or copper wiring, it operates in temperatures from 28-158°F (-2-70°C).
Key Features:
✔ Part Number: PGL36060CU44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ UPC: 785901748175
✔ GTIN: 00785901748175
✔ Country of Origin: Italy
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47 x 210.06 x 326.64 mm)
✔ Weight: 32 lbs
