Square D

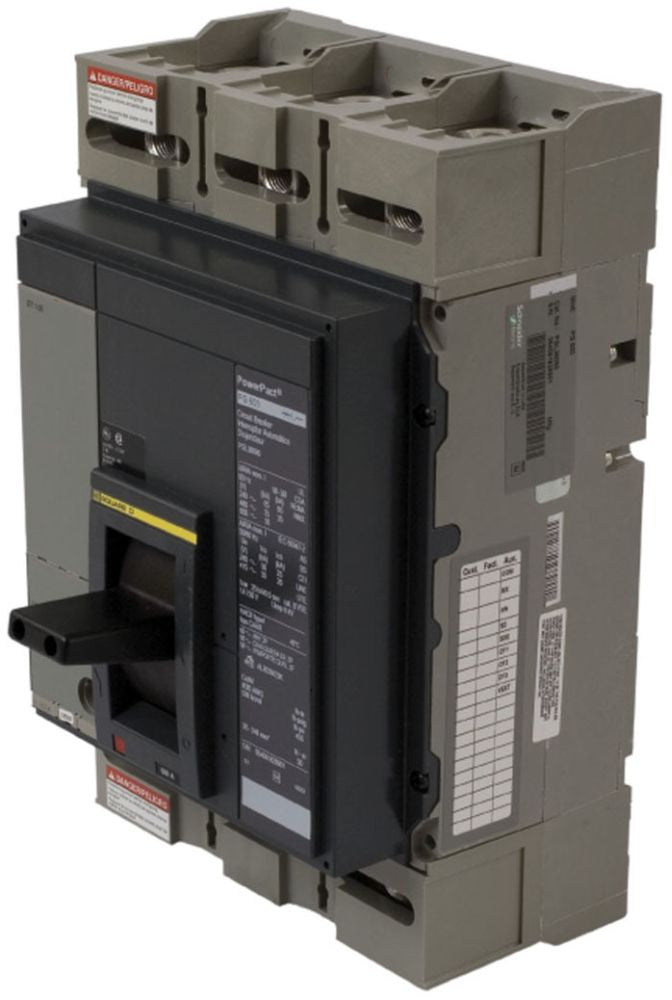

Square D PGL36080CU44A Circuit Breaker | Powerpact PGL 600V 800A
Square D PGL36080CU44A Circuit Breaker | Powerpact PGL 600V 800A
Price:
Sale
Sold out
Regular price
$0.00 USD
Regular price
$17,746.00 USD
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D PGL36080CU44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker includes solid-state protection and a feed-thru connection. Suitable for aluminum or copper wiring, it operates in temperatures from -2°C to 70°C.
Key Features:
✔ Part Number: PGL36080CU44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
✔ Frame Size: P Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: UL Listed
✔ UPC
