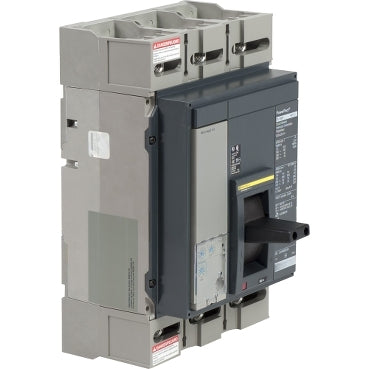

Square D PGL36080U33A Circuit Breaker | 600V 800A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D PGL36080U33A is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 800 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This unit features a Feed-Thru connection and solid state protection with LSI functions.

Key Features:
✔ Part Number: PGL36080U33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Protection: Solid State
✔ UPC: 785901657941
✔ GTIN: 00785901657941
✔ Country of Origin: United States
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 14.52
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
