Product Description:

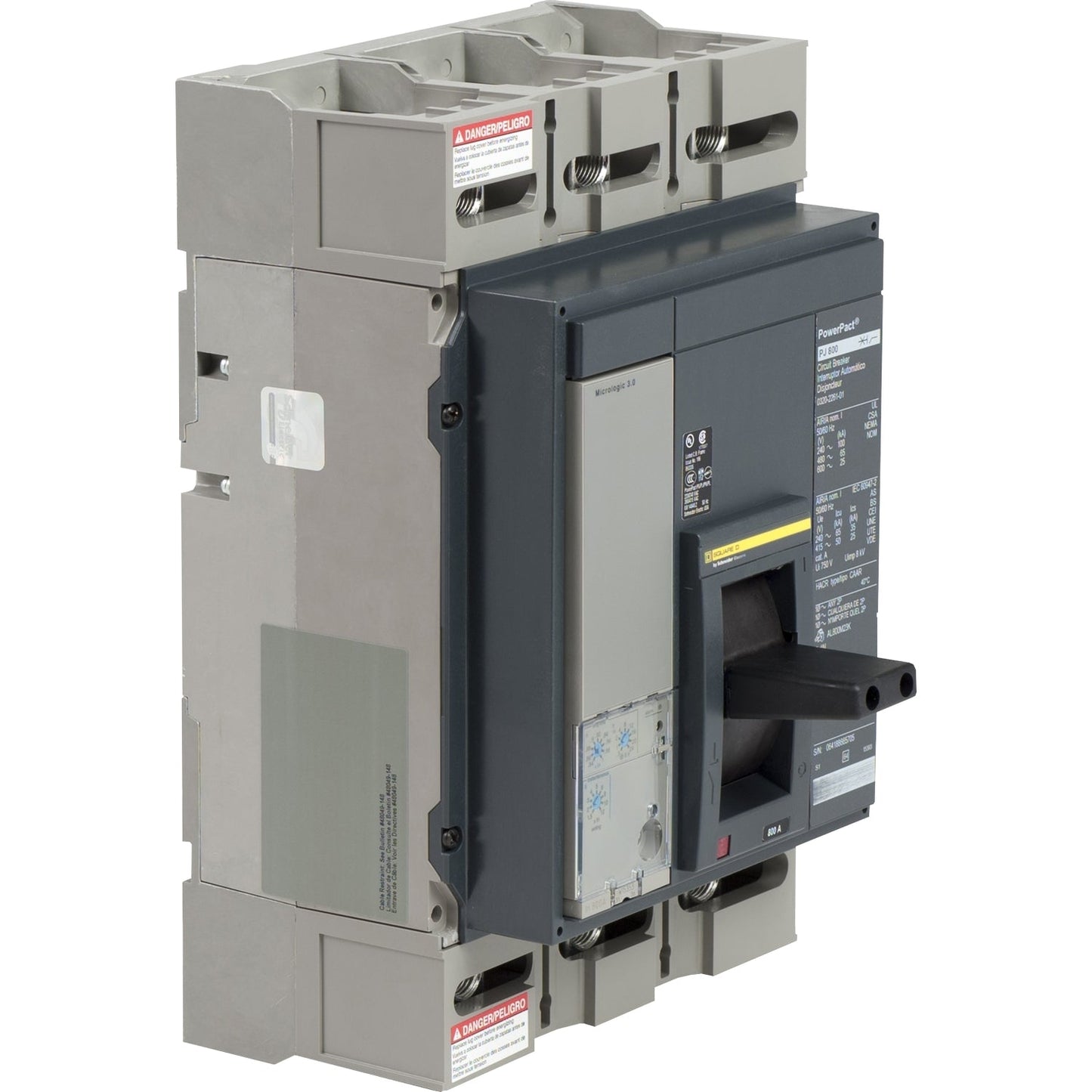

The Square D PGL36080U44A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. Lugs included are AL800M23K.
Key Features:
✔ Part Number: PGL36080U44A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LIG (Long-Time, Instantaneous, Ground Fault)
✔ Temp Rating: 28-158°F (-2-70°C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ UPC: 785901863687
✔ GTIN: 00785901863687
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47mm x 210.06mm x 326.64mm)
✔ Weight: 36 lbs
