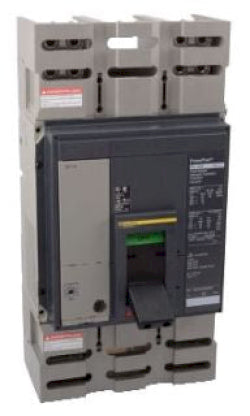

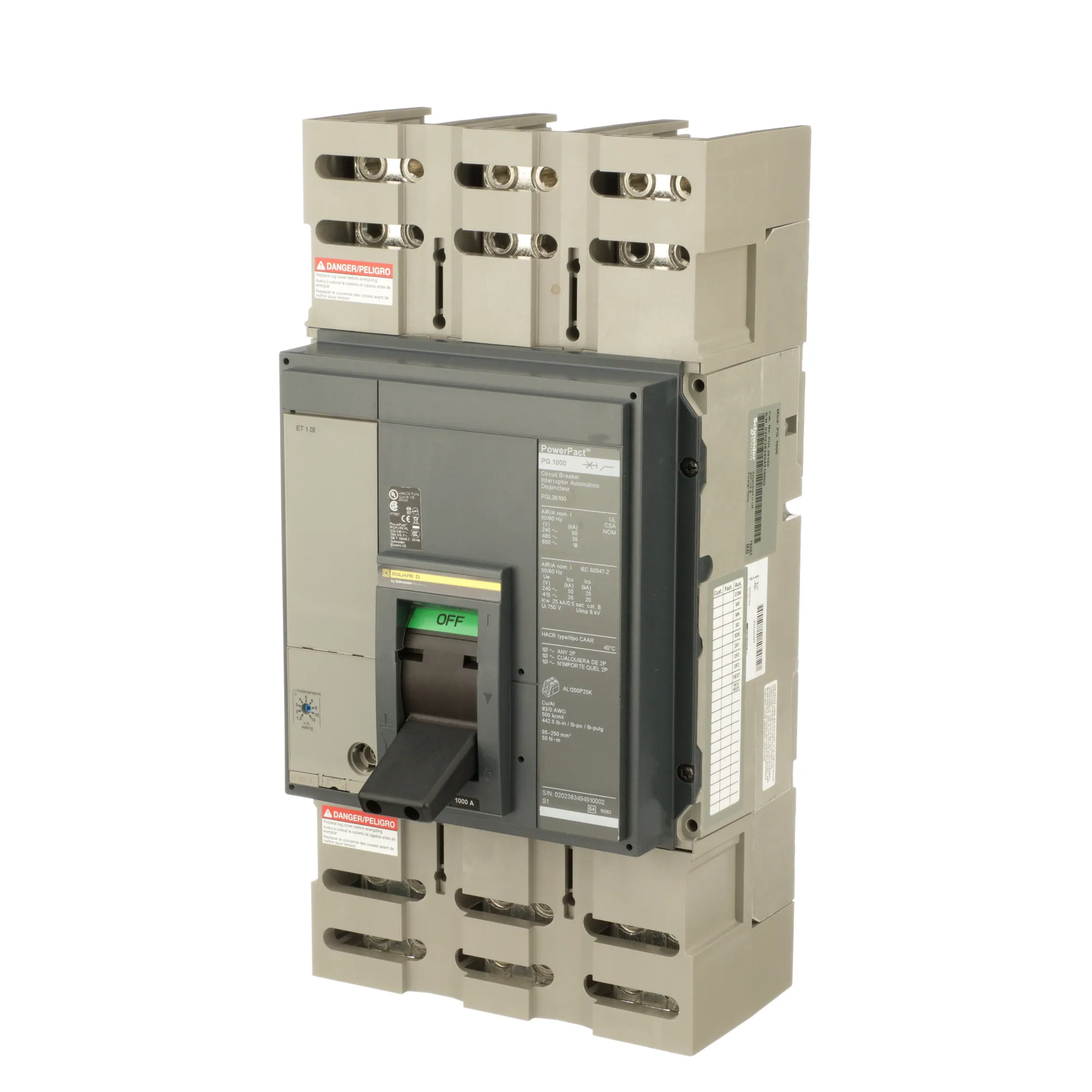

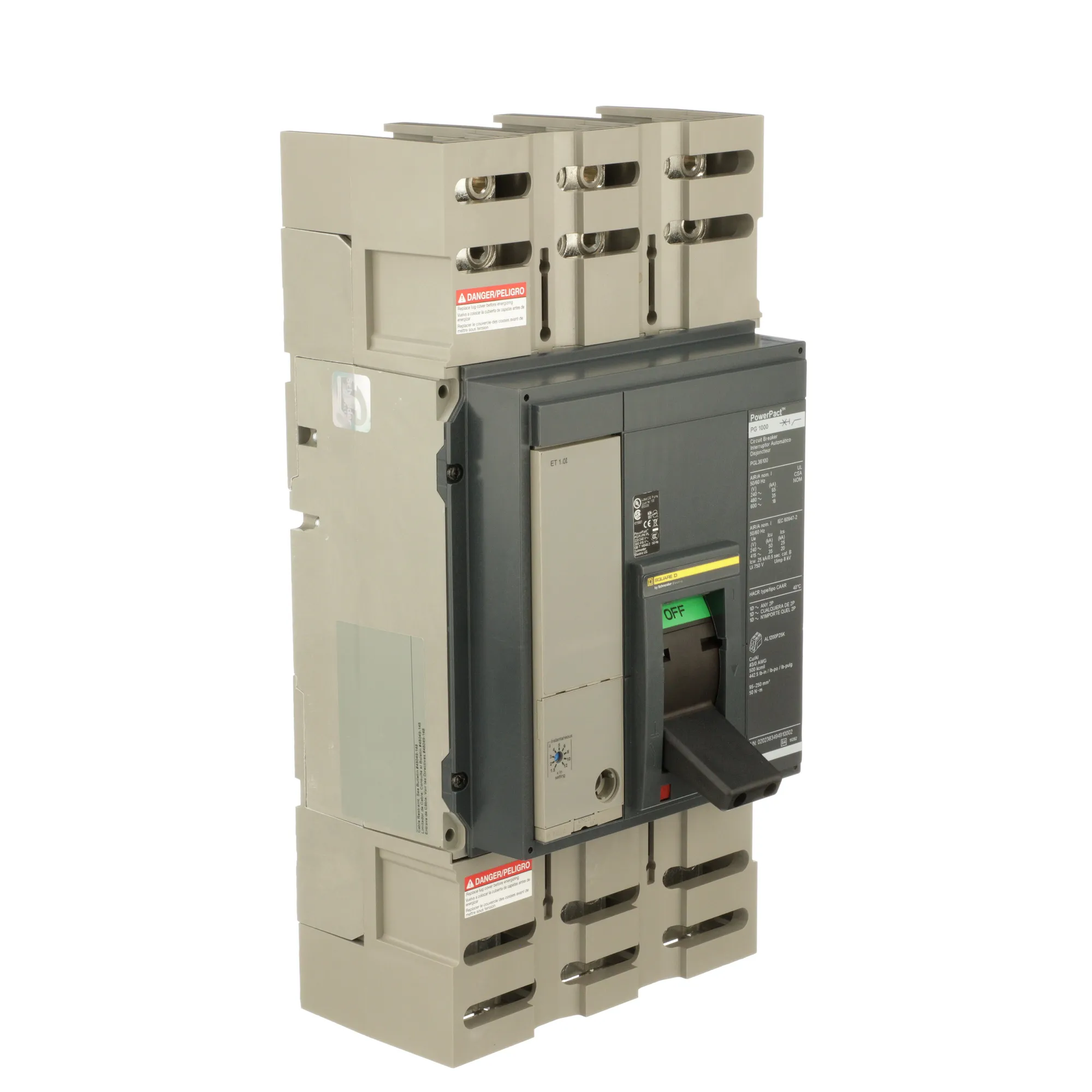

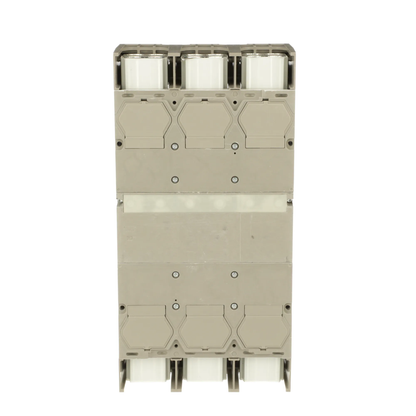

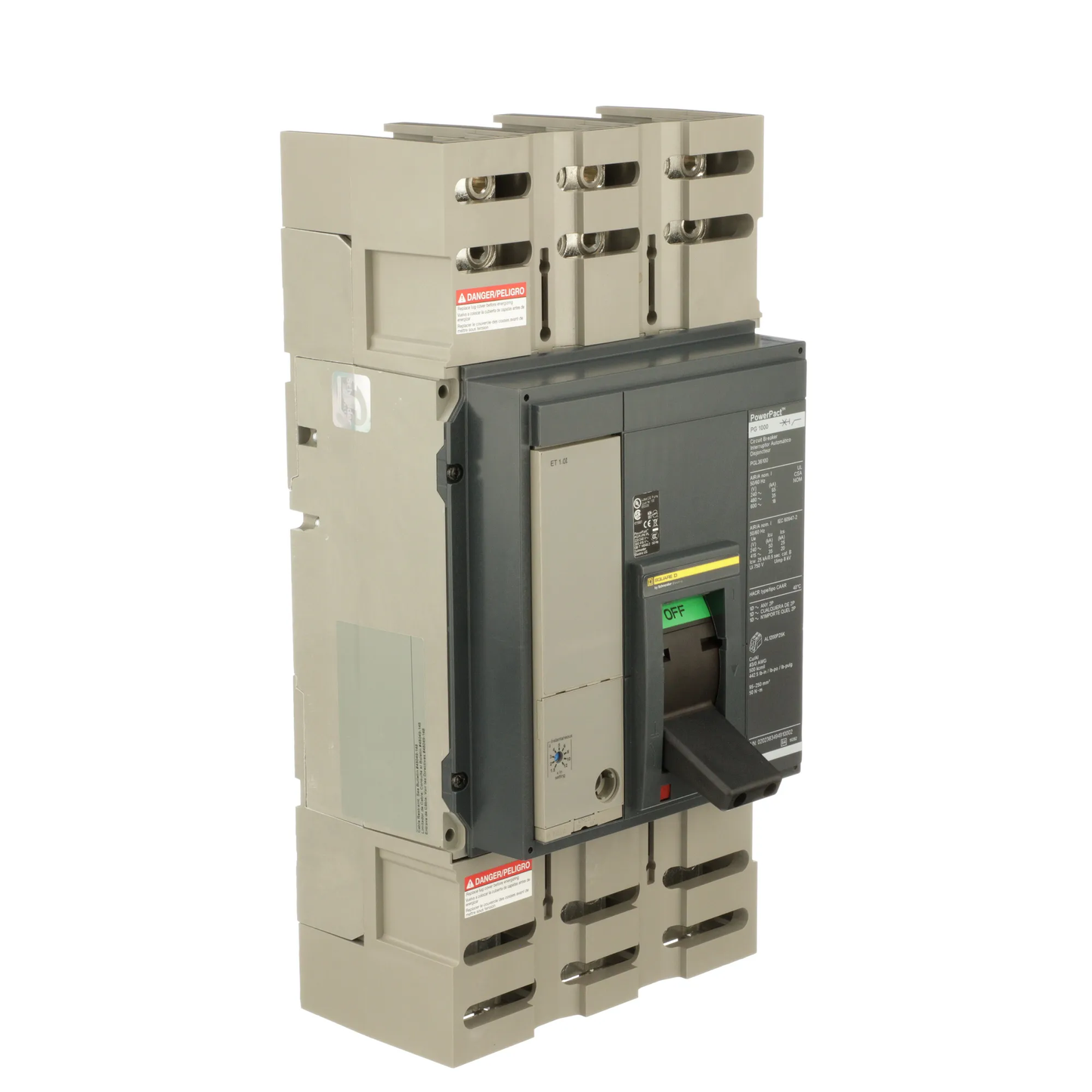

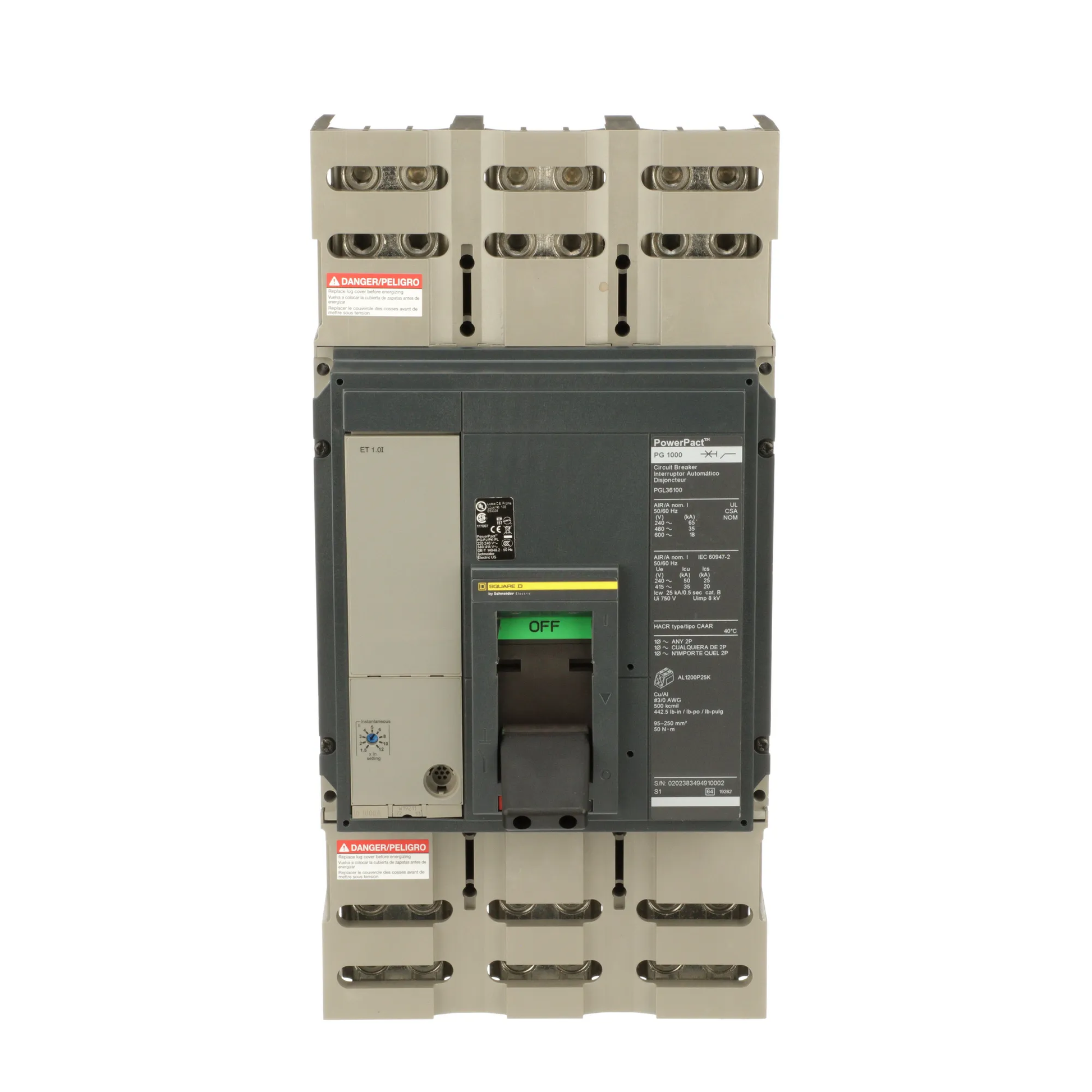

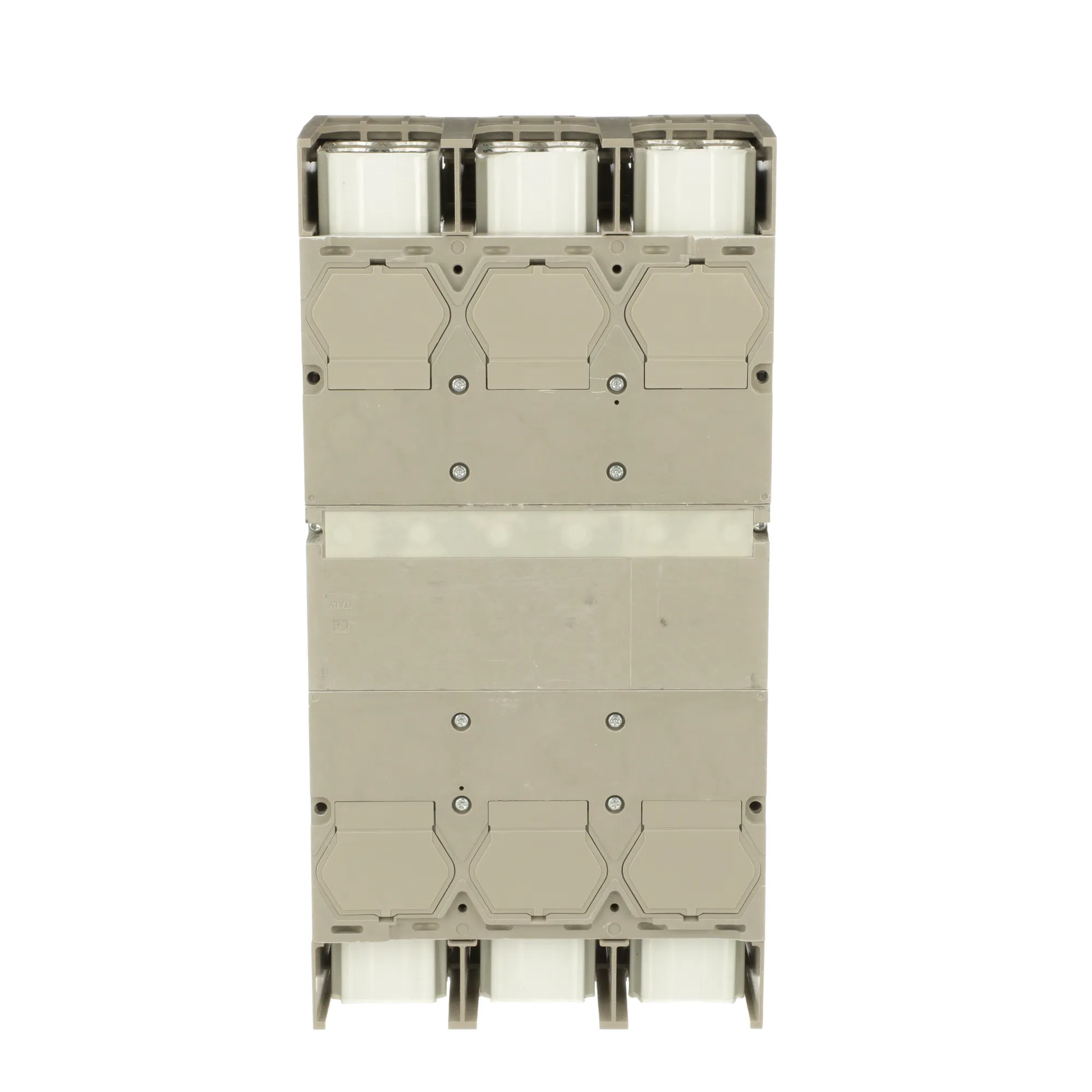

Square D PGL36100 Circuit Breaker | Powerpact PGL 600V 1000A
Square D PGL36100 Circuit Breaker | Powerpact PGL 600V 1000A
Price:
Sale
Sold out
Regular price
$11,429.32 USD
Regular price
$19,049.00 USD
Sale price
$11,429.32 USD
Unit price
per
Shipping calculated at checkout.
Stock:
5 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D PGL36100 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1000A rating and a 35kA@480V AIC rating. This breaker includes solid-state protection and a feed-thru connection. It is suitable for use with aluminum or copper wiring.
Key Features:
✔ Part Number: PGL36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1000A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminum/copper
✔ Certification: BS, CCC, CEI, CSA, IEC, NEMA, NMX, UL, UNE, UTE, VDE
