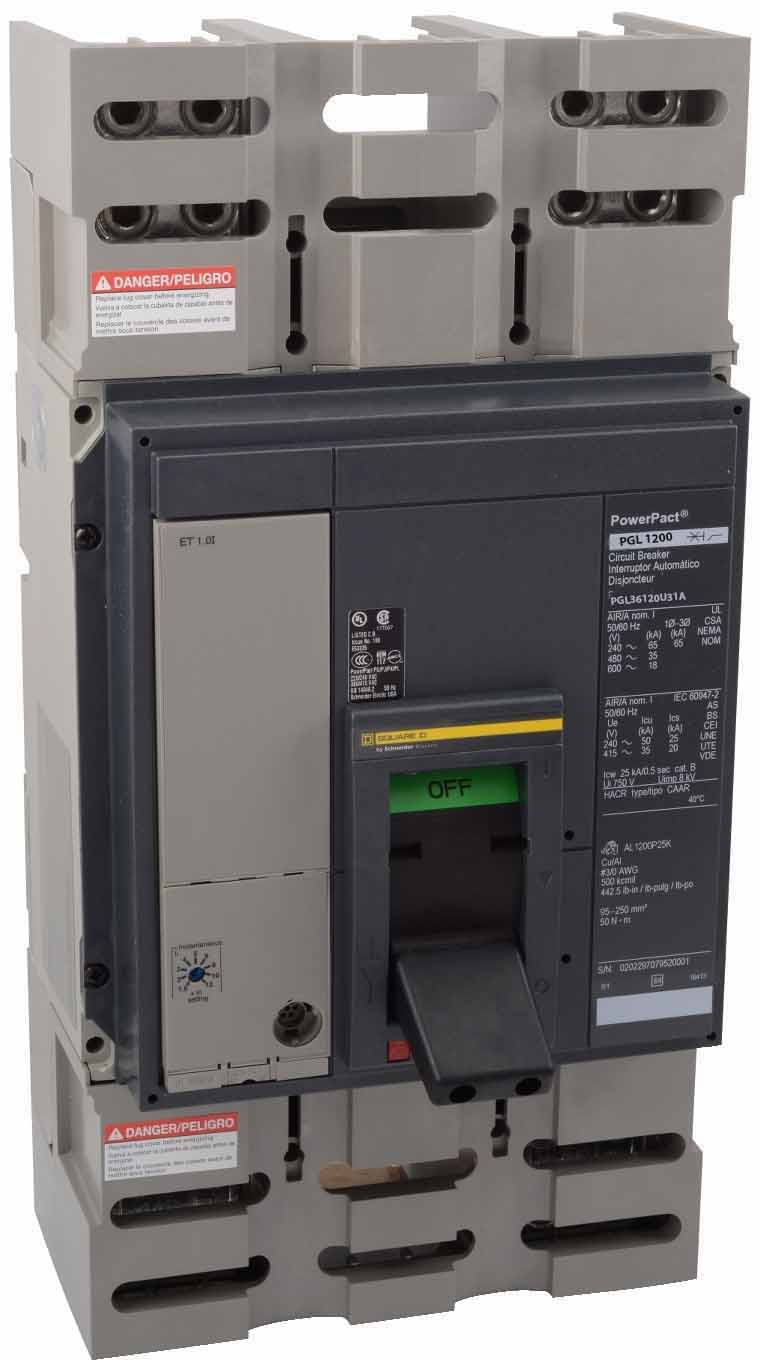

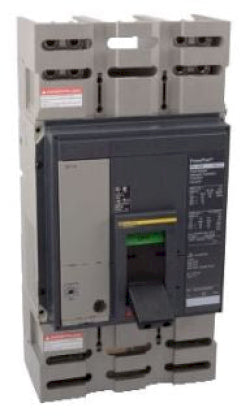

Square D PGL36120U31A Circuit Breaker | Powerpact PGL 600V 1200A
Square D PGL36120U31A Circuit Breaker | Powerpact PGL 600V 1200A
Price:
Sale
Sold out
Regular price
$8,983.60 USD
Regular price
$19,836.00 USD
Sale price
$8,983.60 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Square D PGL36120U31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 1200A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection. Lugs are included for easy installation.
Key Features:
✔ Part Number: PGL36120U31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: P Frame
✔ Temp Rating: 28-158 °F (-2-70 °C)
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
✔ UPC: 785901790495
✔ GTIN: 00785901790495
✔ Country of Origin: Italy
