Square D PGL36120U33A Circuit Breaker | 600V 1200A 3P 35kA@480V Feed-Thru Powerpact

Product Description:

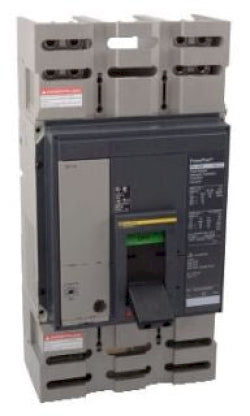

The Square D PGL36120U33A is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 1200 amp breaker rated for 600 volts with an AIC rating of 35kA@480V. This model features a Feed-Thru connection and includes solid state protection with LSI functions.

Key Features:
✔ Part Number: PGL36120U33A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PGL
✔ Voltage: 600
✔ Amperage: 1200
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ UPC: 785901677642
✔ GTIN: 00785901677642
✔ Country of Origin: United States
✔ Dimensions: Height 16.16 in (410.46 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 14.52
✔ Wire Size: 4 x AWG 3/0...500 kcmil aluminum/copper
