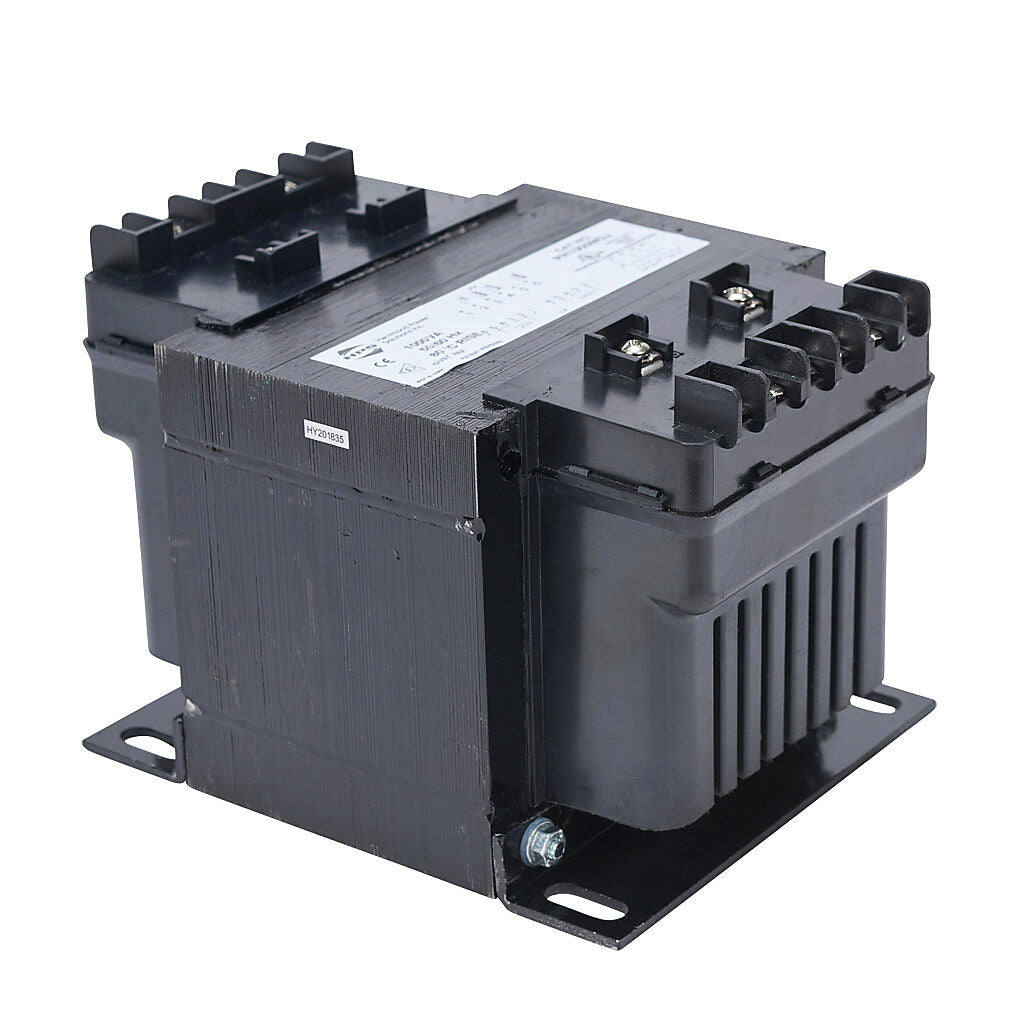

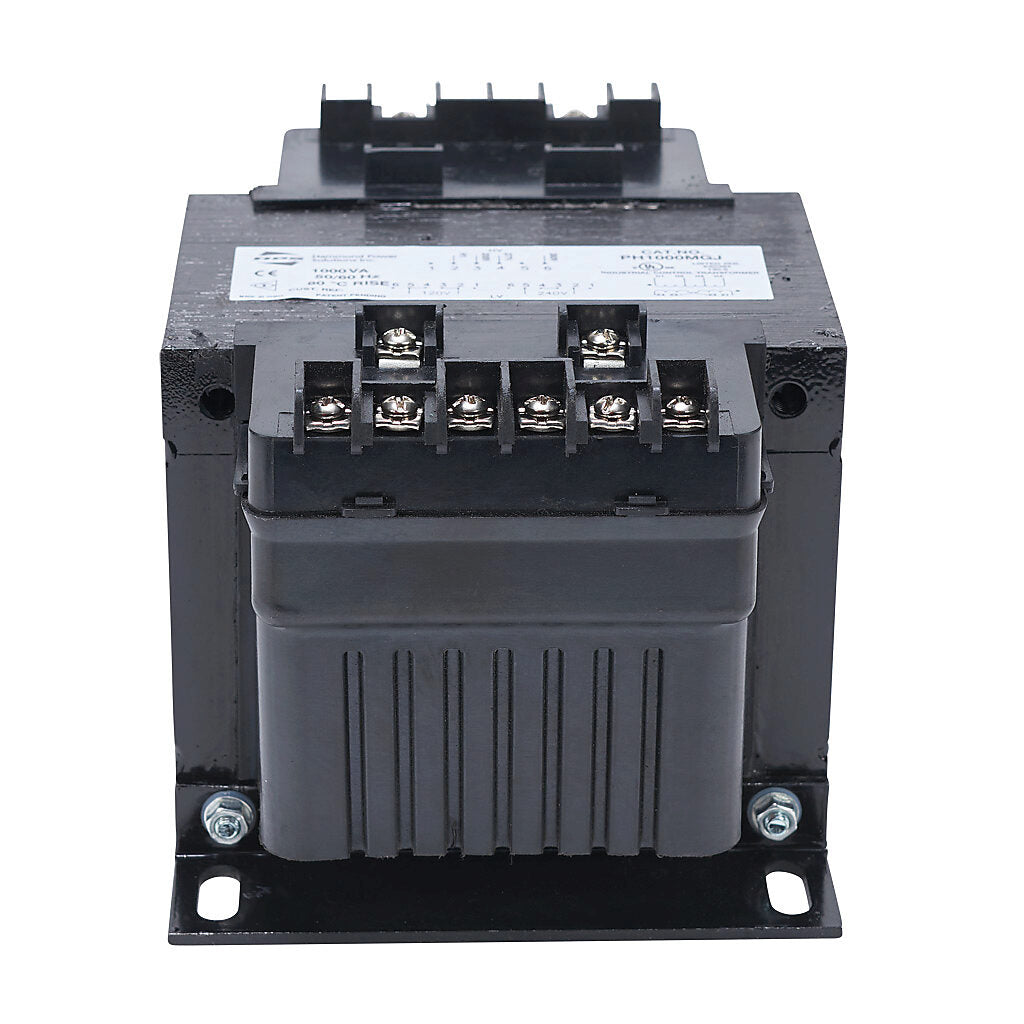

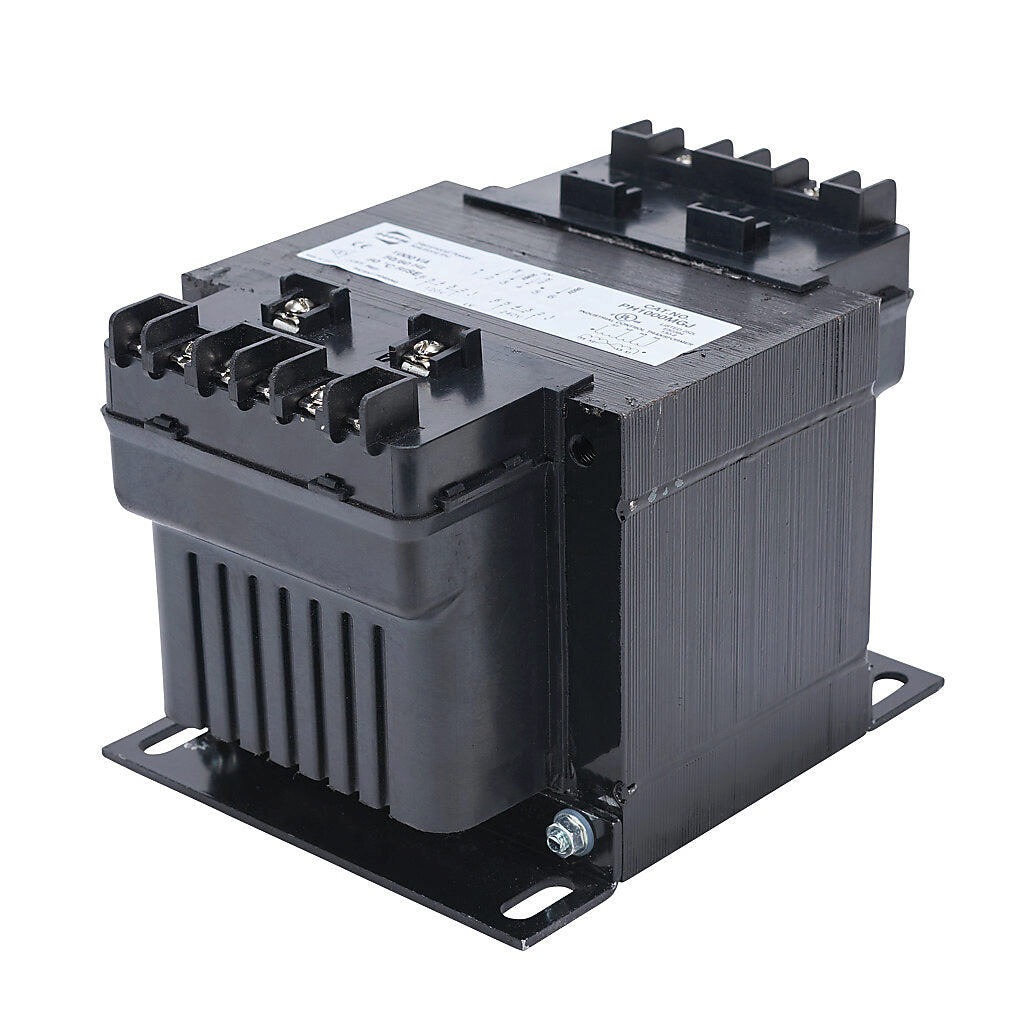

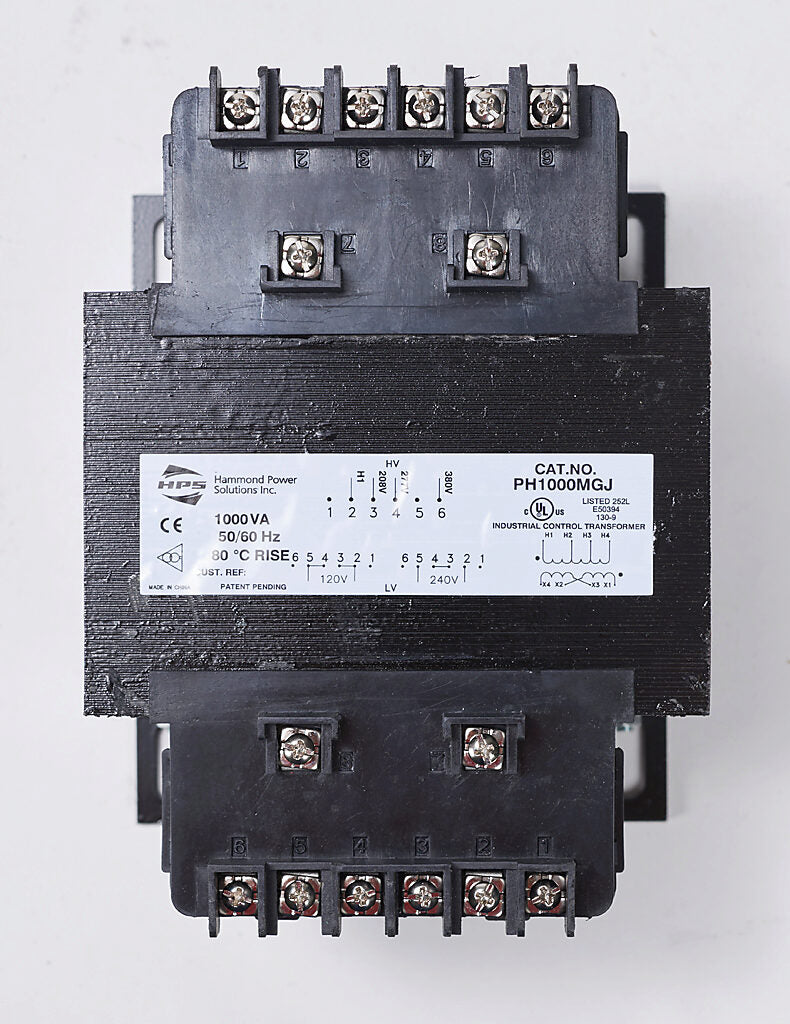

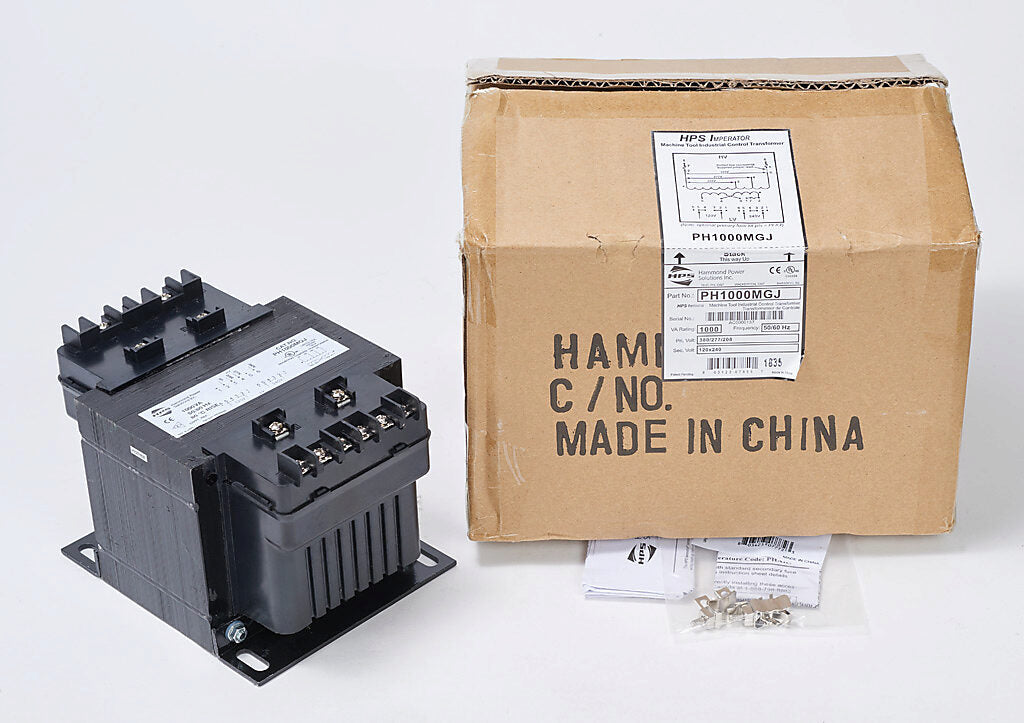

Hammond Power Solutions PH1000MGJ Transformer | 1.48 EKVA Seismic Compliant
Hammond Power Solutions PH1000MGJ Transformer | 1.48 EKVA Seismic Compliant
Price:
Sale
Sold out
Regular price
$417.31 USD
Regular price
$578.00 USD
Sale price
$417.31 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The PH1000MGJ is a single-phase core and coil transformer designed for industrial power distribution. It features versatile primary voltage compatibility and delivers a secondary output of 120x240V. Constructed with copper windings, it is rated for 80°C temperature rise and meets stringent seismic compliance standards including OSHPD and IBC 2018.
Key Features:
✔ Part Number: PH1000MGJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 380, 277, 208
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 80°C
✔ Insulation Class: 130°C
✔ EKVA: 1.48124
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Vector Configuration: 180°
✔ Primary Termination: Terminal Block
✔ UPC: 803423078591
✔ Weight: 26
✔ Certification: cULus, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
