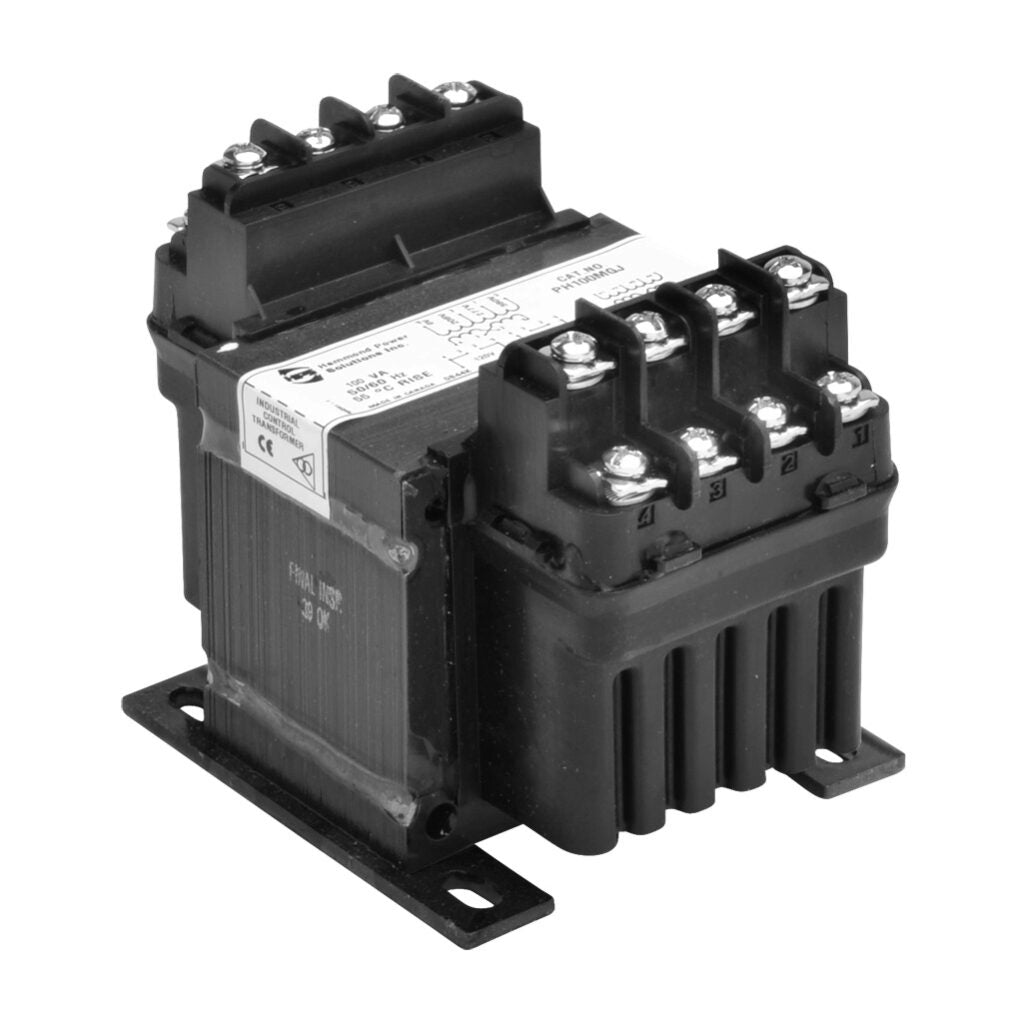

Hammond Power Solutions PH100MGJ Transformer | 0.187 EKVA Seismic Rated
Hammond Power Solutions PH100MGJ Transformer | 0.187 EKVA Seismic Rated
Price:
Sale
Sold out
Regular price
$106.80 USD
Regular price
$144.00 USD
Sale price
$106.80 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
The PH100MGJ is a single-phase core and coil transformer for industrial power distribution. It offers versatile primary voltage compatibility with 380V, 277V, and 208V inputs, delivering secondary outputs of 120x240V using copper windings. This transformer is constructed for reliable power conversion and meets rigorous seismic compliance standards for enhanced safety in earthquake-prone regions.
Key Features:
✔ Part Number: PH100MGJ
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Frequency: 50/60Hz
✔ Primary Voltage: 380, 277, 208
✔ Primary Connection: Series (V)
✔ Secondary Voltage: 120x240
✔ Secondary Connection: Parallel x Series (Vx2V)
✔ Material: Copper
✔ Temperature Rise: 55°C
✔ Insulation Class: 130°C
✔ EKVA: 0.187211
✔ Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Enclosure Type: Core & Coil
✔ Nameplate: Standard
✔ Vector Configuration: 180°
✔ Seismic Standard Value: IBC 2018
✔ OSHPD: Yes
✔ Seismic IP: lp=1.5
✔ Seismic ZH: z/h=1
✔ Seismic SDS Value: Sds=2.0
✔ Primary Termination (Std): Terminal Block, Terminal Block, Terminal Block
✔ UPC: 803423078539
✔ Weight: 5
✔ Certification: cULus, CE
