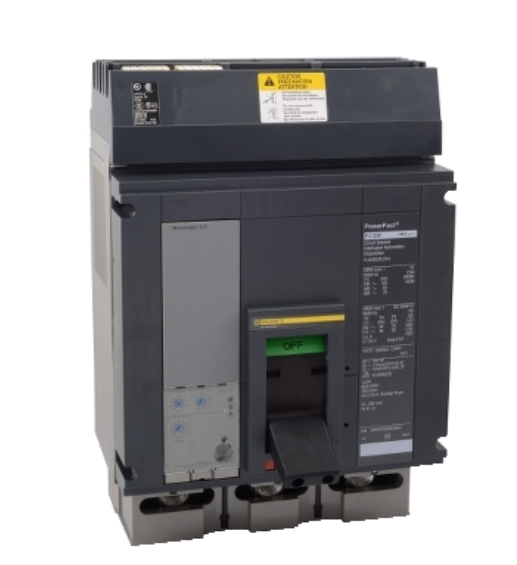

Square D PJA36060CU64AE1 Molded Case Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D PJA36060CU64AE1 is a Molded Case Circuit Breaker from the Powerpact family. This 3-pole breaker is rated for 600 amps and 600 volts, with an AIC rating of 65kA at 480V. It features an I-Line Style Plug-In connection and solid-state protection with LSIG functions.

Key Features:
✔ Part Number: PJA36060CU64AE1
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: P Frame
✔ Protection: Solid State
✔ UPC: 762179028734
✔ Dimensions: Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
✔ Weight: 37
