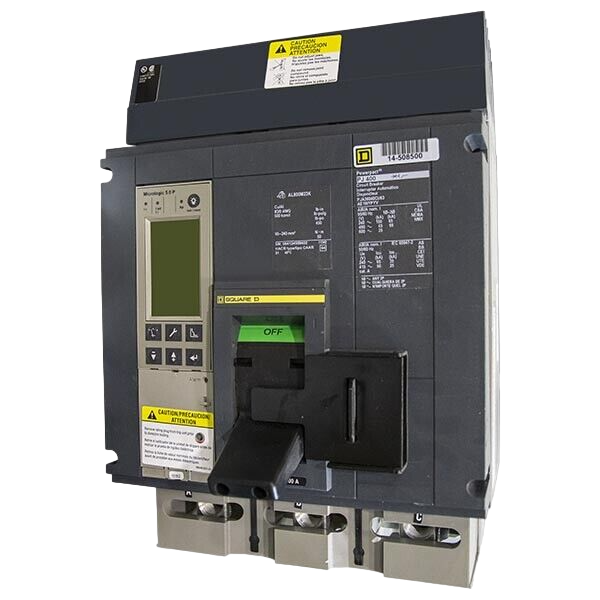

Product Description:
The Square D PJA36080U31A is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for use with 3 x AWG 3/0...500 kcmil aluminium/copper wiring.
Key Features:
✔ Part Number: PJA36080U31A
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: PJA
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Terminal Connection: AL800M23K MCM
✔ Temp Rating: 28…158 °F (-2…70 °C)
✔ Wire Size: 3 x AWG 3/0...500 kcmil aluminium/copper
✔ Certification: UL, CSA, NOM
✔ UPC: 785901731191
✔ GTIN: 00785901731191
✔ Country of Origin: Mexico
✔ Dimensions: 8.05" D x 8.27" W x 12.86" H (204.47mm x 210.06mm x 326.64mm)
✔ Weight: 32 lb
